Jacobsen Eclipse 322 Repair Manual

4-130 4222983 Second Edition
ELECTRICAL
4
Rocker Switches Test
See Figure 4-84.
NOTE
This procedure applies to the following switches:
• Left Reel Enable Switch
• Right Reel Enable Switch
• Center Reel Enable Switch
• Light Switch
NOTE
Test the component utilizing the LCD switch status menu
before performing the component bench test. (See
“Switch Test” on page 4-85.)
1. Park the mower safely. (See “Park Mower Safely” on
page 1-6.)
2. Remove rocker switch. (See “Rocker Switches” on
page 4-153.)

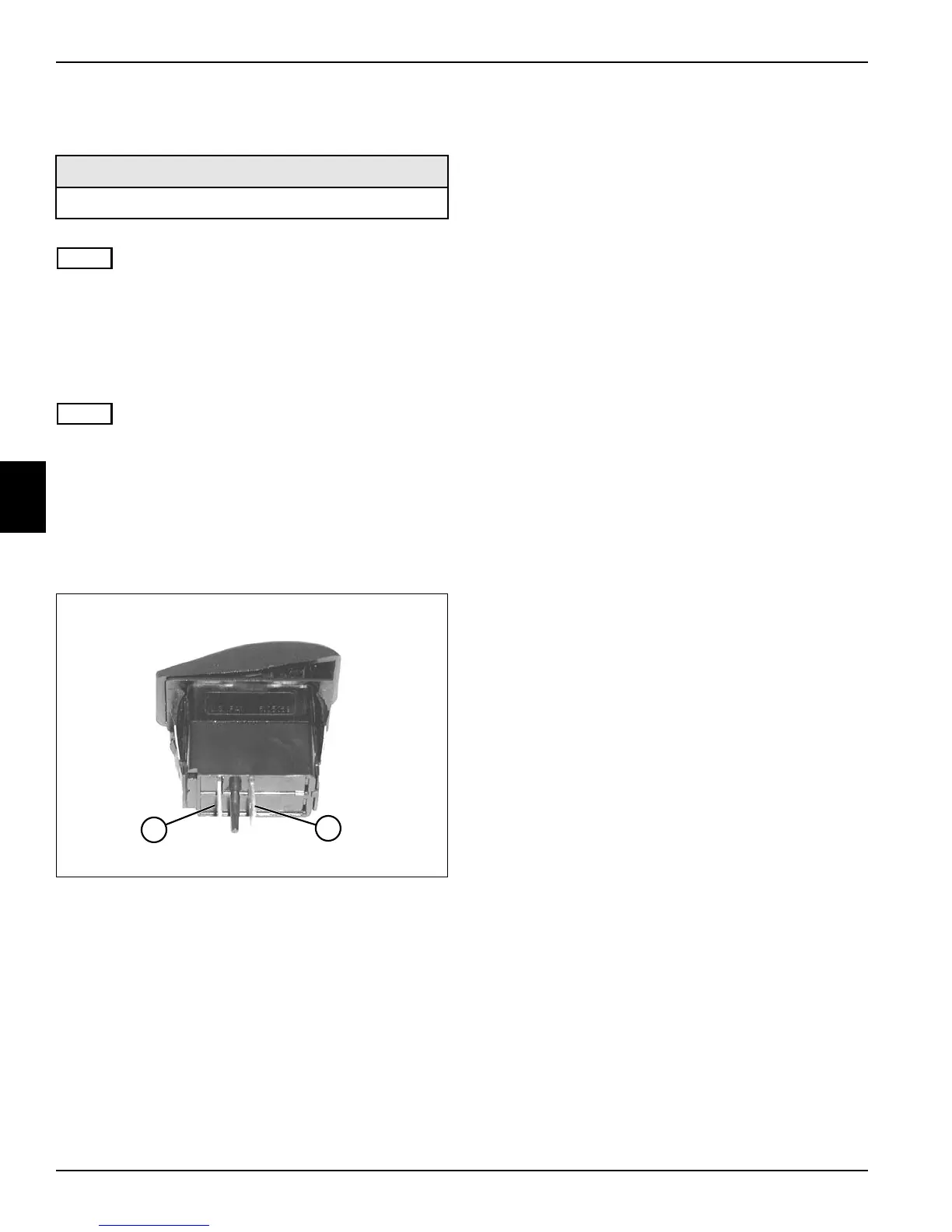

Figure 4-84
3. Move rocker switch to the ON position.
4. Set the meter to read ohms.
5. Touch meter leads to each other and confirm a
resistance value of 0.0 ohms.
6. Measure the resistance between terminals (1 and 2).
Is the resistance value 0.02 ohms or less?
YES Proceed to step 7.
NO Rocker switch is faulty; replace rocker switch.
7. Move rocker switch to the OFF position.
8. Measure the resistance between terminals (1 and 2).
Is the resistance value 0.02 ohms or less?
YES Rocker switch is faulty; replace rocker switch.
NO Rocker switch is good.
Required Tools or Equipment
Digital Multimeter or Ohmmeter
TN0679
1
2
