Jacobsen Eclipse 322 Repair Manual

CHASSIS
4222983 Second Edition 5-7
5

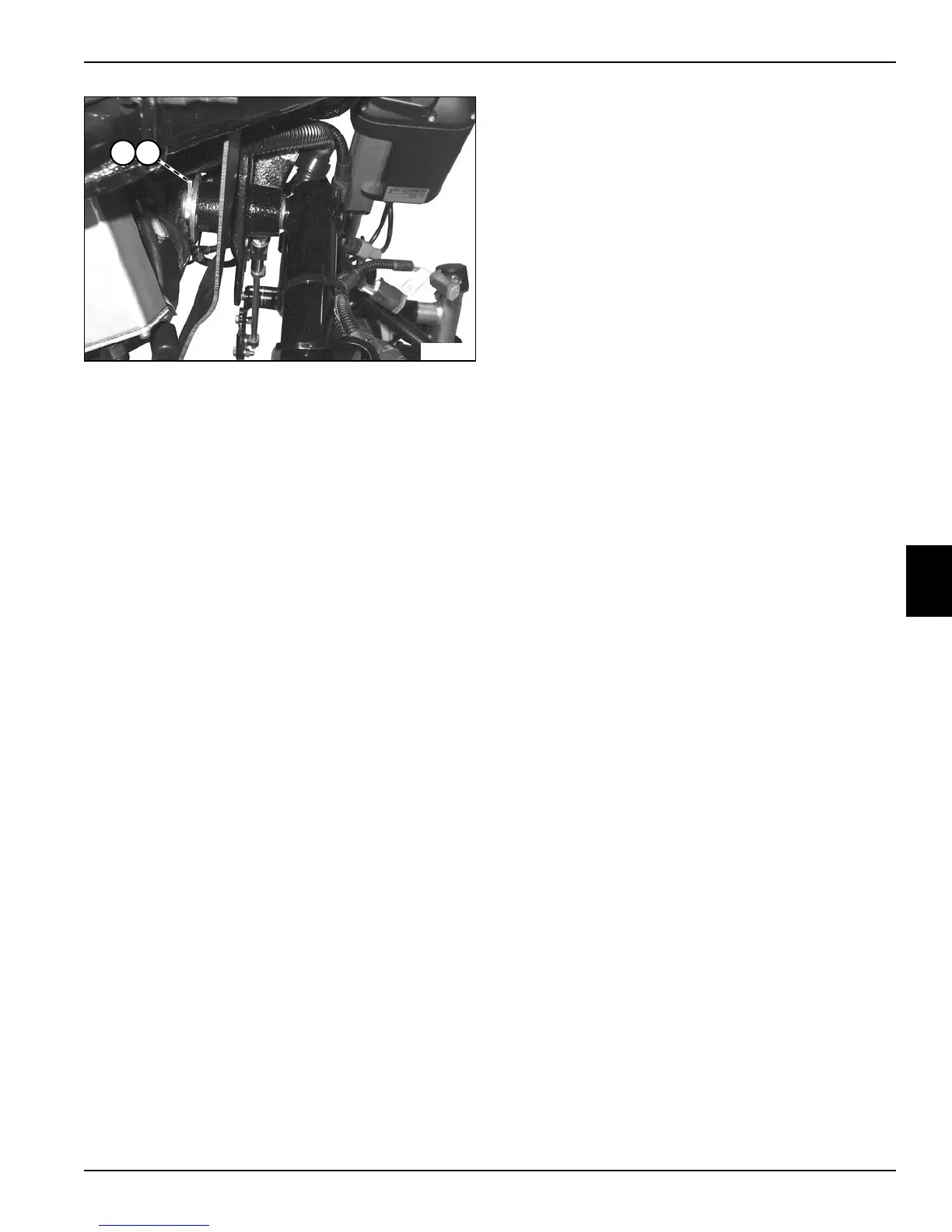

Figure 5-7
8. Remove cotter pin (7) and flat washer (8).
9. Remove the lift arm.
Installation Notes
• Pre-adjust the reel leveling rod before installation.
(See “Reel Leveling Rod Pre-Adjustment” on
page 6-22.)
• Install lift arm by reversing the order of removal.
• Use new cable ties to secure the wire connectors and
wire harness.
• Apply dielectric grease (Jacobsen part number
365422) to connections.
• Lubricate grease fittings.
TN2399
7 8
