Jacobsen Eclipse 322 Repair Manual

5-10 4222983 Second Edition
CHASSIS
5
Disassembly and Assembly

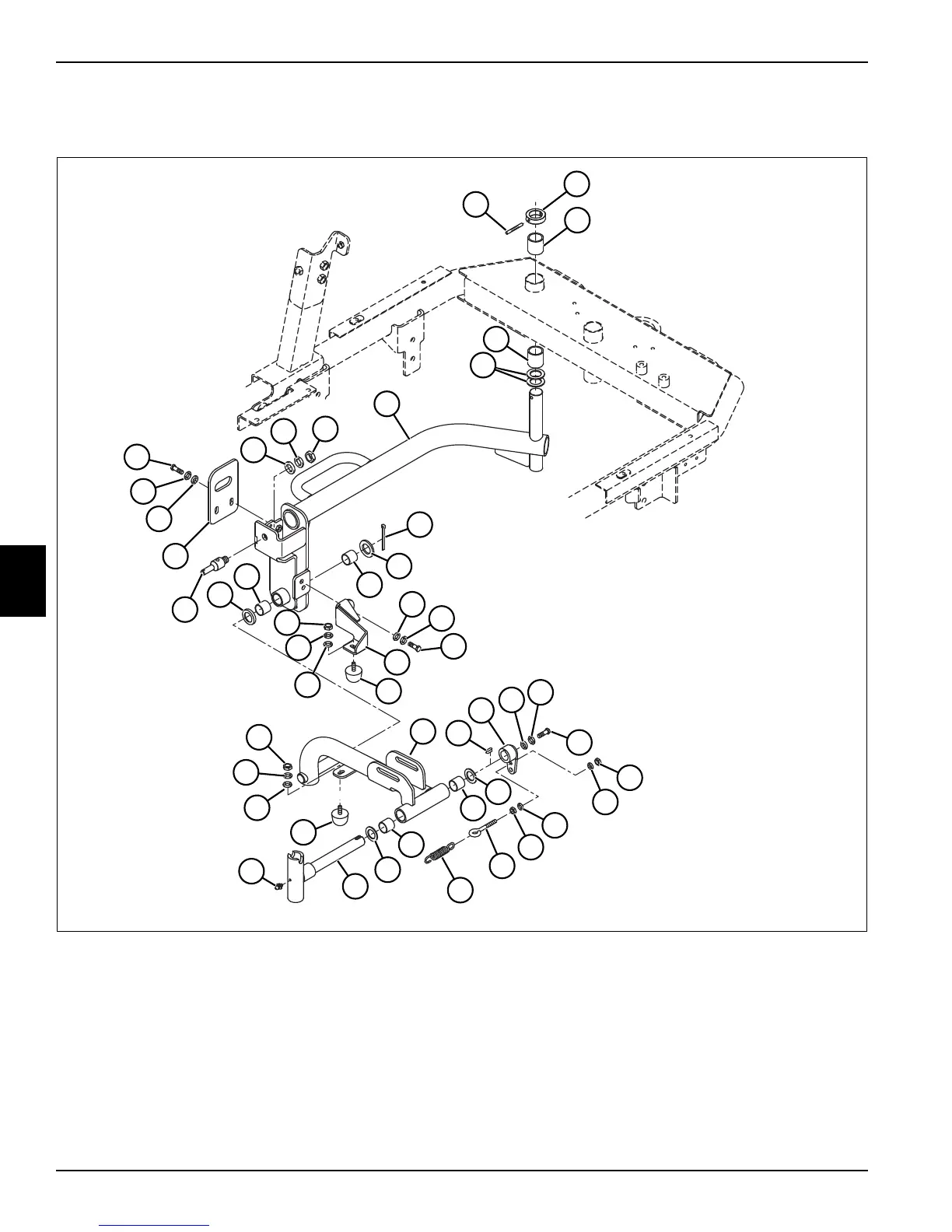

See Figure 5-11.
Figure 5-11
1 Lock Pin 8 Flat Washer 14 Thrust Washer 20 Nut 26 Key
2 Locking Collar 9 Screw 15 Polygon Bushing 21 Grease Fitting 27 Link Arm
3 Polygon Bushing 10 Lock Washer 16 Flat Washer 22 Center Reel Steering Pivot 28 Screw
4 Bushing 11 Flat Washer 17 Cotter Pin 23 Shim Washer (as required) 29 Flat Washer
5 Center Swing Arm 12 Locking Pin Bracket 18 Center Stop Bracket 24 Polygon Bushing 30 Nut
6 Nut 13 Actuator Pivot Pin 19 Rubber Bumper 25 Center Lift Arm 31 Spring
7 Lock Washer
T
N2786
1
TN2786
2
3
3
4
5
9
10
11
8
7
6
12
13
14
15
15
16
17
20
10
11
10
11
9
18
20
10
11
19
21
22
24
23
24
23
31
30
20
29
29
20
28
10
11
27
26
19
25
