Jacobsen Eclipse 322 Repair Manual

4-24 4222983 Second Edition
ELECTRICAL
4

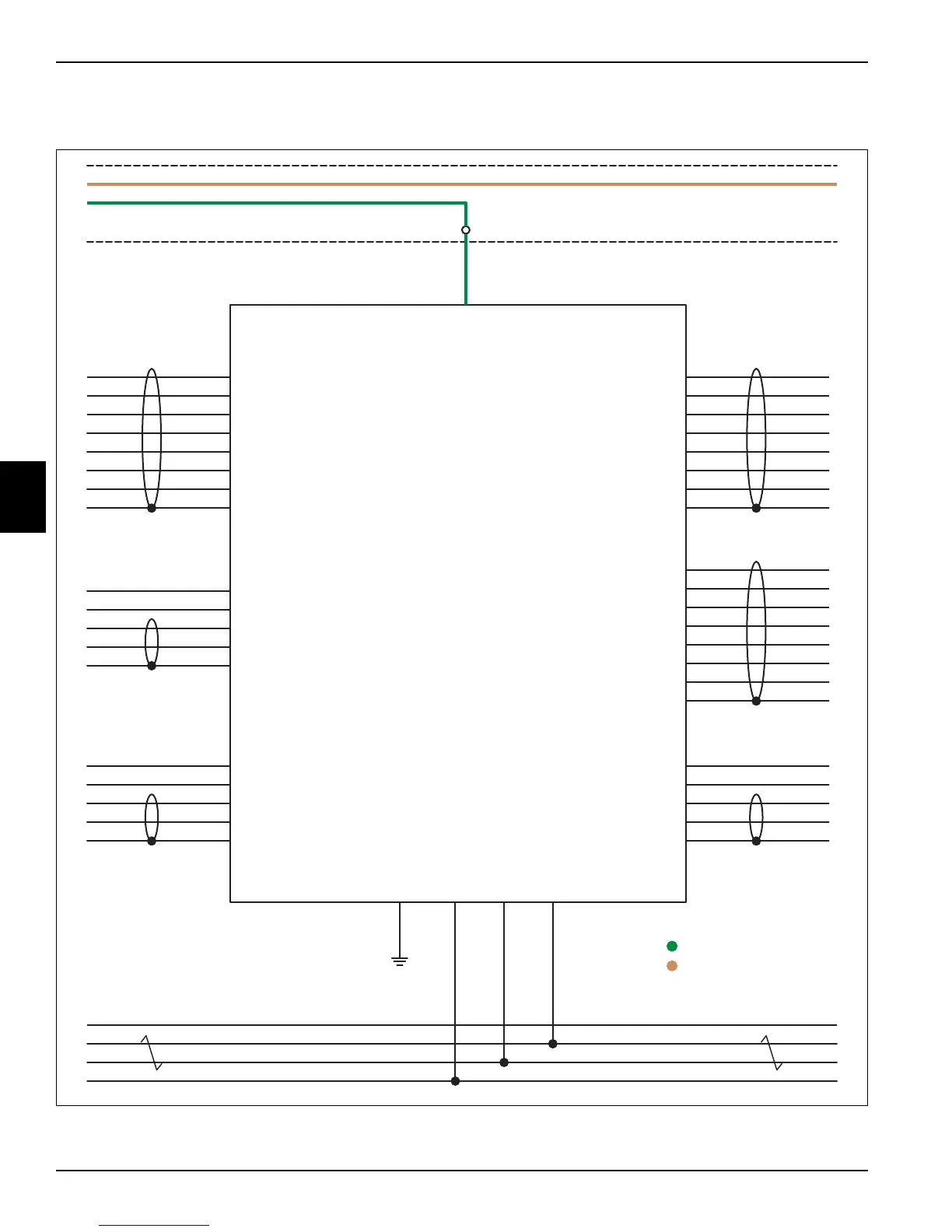

Electrical Schematic
Continued
Figure 4-15
GC1
PDU PDU
48V Switched Power
12V Switched Power 12V Switched Power
CAN Shield
CAN Low
CAN High
CAN Shield
CAN Low
CAN High
CAN Shield
CAN Low
CAN High
CAN Shield
CAN Low
CAN High
Shield1
Blk
92B
Grn
91B
Yel
Ground
J5-1
CAN
Shield
J5-2
CAN
Low
J5-6
CAN
High
J5-5
A12
Reel
Control
Unit
(RCU)
30 Brn
33 Yel
26 Blk
21 Wht
J7-10 Left Reel Motor Speed Signal Output
J7-11 Left Reel Motor Speed Signal Ground
J7-8 Left Reel Motor Reel Direction Output
J7-7 Left Reel Motor Temperature Input
J7-3 Left Reel Motor Tachometer Input
J9-A 48V Left Reel Motor Power Output
34 Org
31 Grn
35A Wht 35 Blk
J5-3
48V
Power
Input
20 Wht/Blu 20 Wht/Blu 20 Wht/Blu 20 Wht/Blu
J7-9 Left Reel Motor CW/CCW Signal Output
J7-12 Left Reel Motor CW/CCW Signal Ground
Center Reel Motor Speed Signal Output J6-10
Center Reel Motor Speed Signal Ground J6-11
Center Reel Motor Reel Direction Output J6-8
Center Reel Motor Temperature Input J6-7
Center Reel Motor Tachometer Input J6-3
48V Center Reel Motor Power Output J9-B
Center Reel Motor CW/CCW Signal Output J6-9
Center Reel Motor CW/CCW Signal Ground J6-12
32 Blu
42 Brn
45 Yel
38 Blk
22 Wht
6
Red
J122
46 Org
43 Grn
47A Wht47 Blk
44 Blu
50 Blk
54 Brn
57 Yel
55 Grn
56 Blu
59A Wht59 Blk
51 Wht
Right Reel Motor Speed Signal Output J8-10
Right Reel Motor Speed Signal Ground J8-11
Right Reel Motor Reel Direction Output J8-8
Right Reel Motor Temperature Input J8-7
Right Reel Motor Tachometer Input J8-3
48V Right Reel Motor Power Output J9-C
Right Reel Motor CW/CCW Signal Output J8-9
Right Reel Motor CW/CCW Signal Ground J8-12
23 Wht
58 Org
24 Org
J7-2 Left Lift Motor Control Output
J7-1 Left Lift Motor Control Output
J7-6 Left Lift Actuator 5V Supply
25 Org/Blk
29 Wht
27 Wht27A Blk
J7-5 Left Lift Sensor Signal Input
J7-4 Left Lift Sensor Signal Ground
28 Red
41 Wht
48 Org
49 Org/Blk
53 Wht
51A Blk
36 Org
J6-2 Center Lift Motor Control Output
J6-1 Center Lift Motor Control Output
J6-6 Center Lift Actuator 5V Supply
37 Org/Blk
39A Blk
J6-5 Center Lift Sensor Signal Input
J6-4 Center Lift Sensor Signal Ground
Right Lift Motor Control Output J8-2
Right Lift Motor Control Output J8-1
Right Lift Actuator 5V Supply J8-6
Right Lift Sensor Signal Input J8-5
Right Lift Sensor Signal Ground J8-4
40 Red
52 Red
39 Wht
48V Switched Power Circuit
12V Switched Power Circuit
