Installation iPRO-RC™ Series Banknote Recycler Section 2

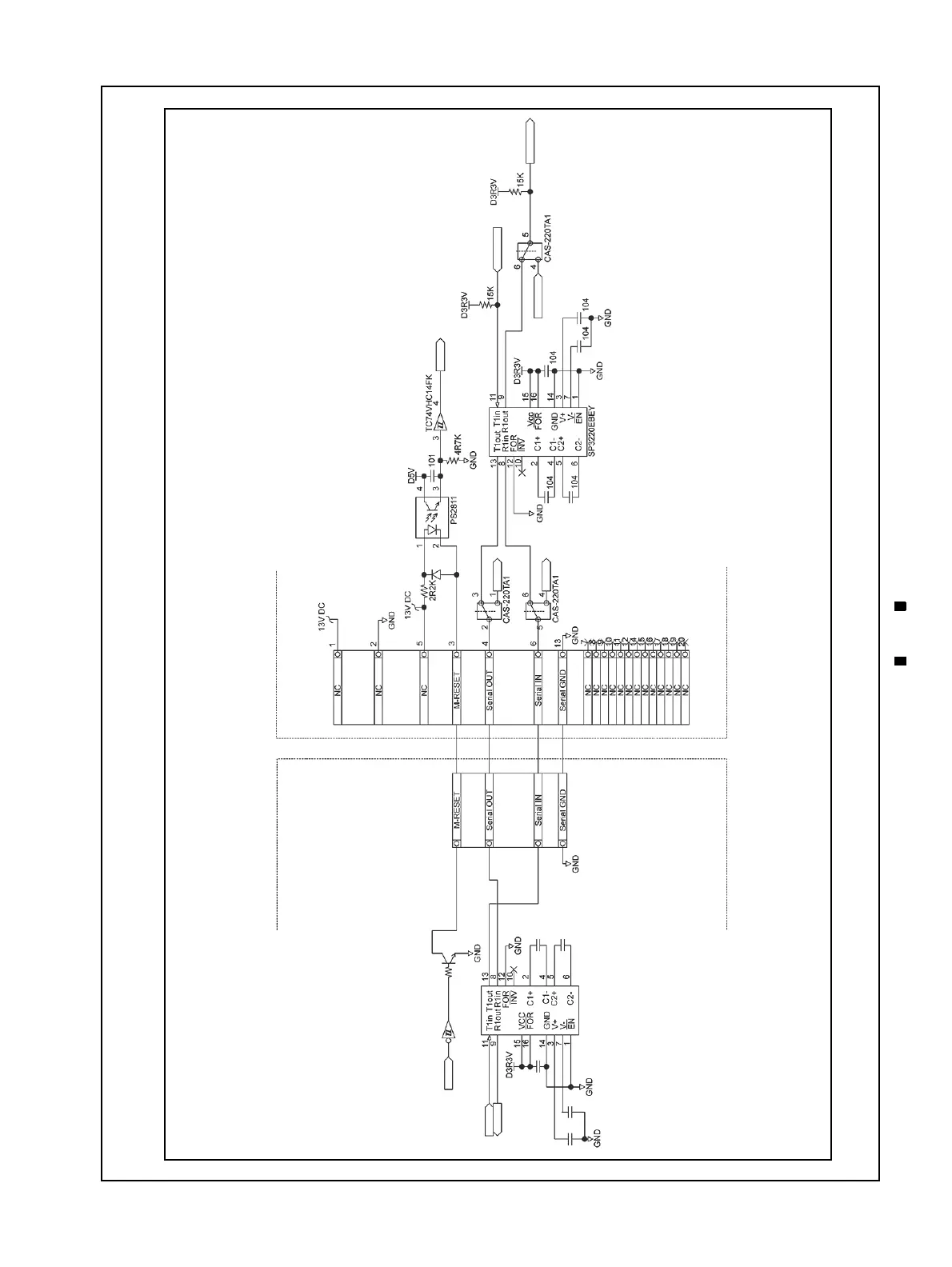

Standard Interface Circuit Schematics (Continued) Figure 2-13 illustrates the iPRO-RC™ RS232C Interface Schematic Diagram.
Figure 2-13 iPRO-RC RS232C Interface Sche- matic Diagram
Figure 2-13 iPRO-RC RS232C Interface Schematic Diagram
Controller Side Validator Side
