Johnson Controls VSD Series User Manual

Powered by Eaton Technology VSD Series Drives User Manual
LIT-1201828 For more information visit: www.johnsoncontrols.com 15-11
November 2009

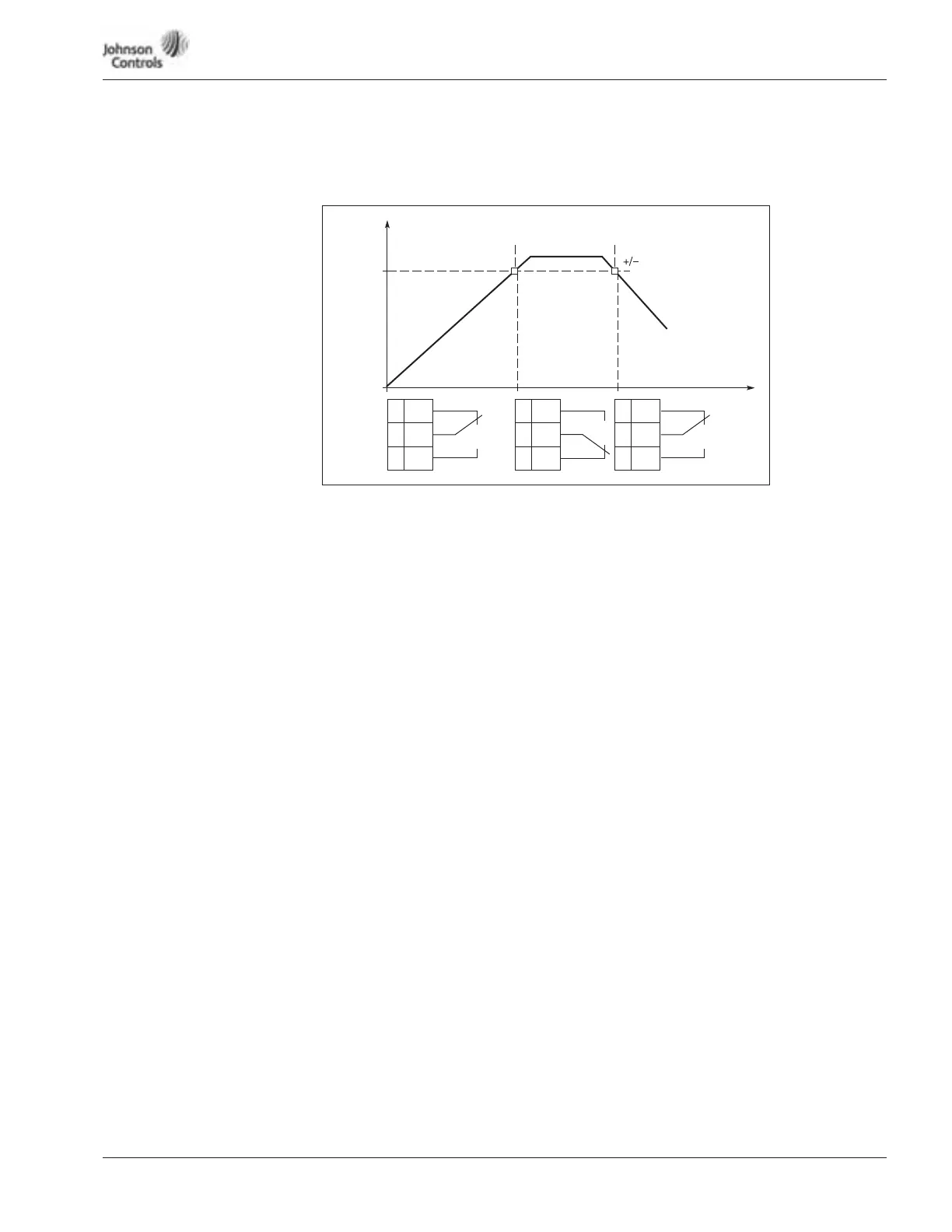

Figure 15-10: Output Frequency Supervision
315 Actual Speed supervision value
Selects the frequency value supervised by parameter ID314. See Figure 15-10.
316 Torque limit, supervision
function
0 No supervision
1 Low limit supervision
2 High limit supervision
If the calculated torque value falls below or exceeds the set limit (ID317) this function
generates a warning message via the digital output DO-1 or via a relay output RO-1 or
RO-2 depending on the settings of ID306 to ID311.
317 Torque limit, supervision value
Set here the torque value to be supervised by ID316.
318 Frequency converter
temperature limit supervision
0 No supervision
1 Low limit supervision
2 High limit supervision
If the temperature of the drive falls below or exceeds the set limit (ID319), this function
generates a warning message via digital output DO-1 or relay outputs RO-1 or RO-2
depending on the settings of ID306 to ID311.
319 Frequency converter
temperature limit value
This temperature value is supervised by ID318.
320 Start ON Delay
Relay or Digital output ON-delay time after start command is given.
21 RO-1Example:
22 RO-1
23 RO-1
21 RO-1
22 RO-1
23 RO-1
21 RO-1
22 RO-1
23 RO-1
t
f [Hz]
ID315
%
ID314 = 2
1% Hysteresis
