Powered by Eaton Technology VSD Series Drives User Manual
LIT-1201828
For more information visit: www.johnsoncontrols.com 3-5
November 2009
NEMA Type 1/12 Open Drives (1 – 250 HP)
Table 3-8: Control Wiring Instructions — NEMA Type 1/12 Open Drives
Mounting Drive
1. Mount Drive
(See Table below for dimensions.)

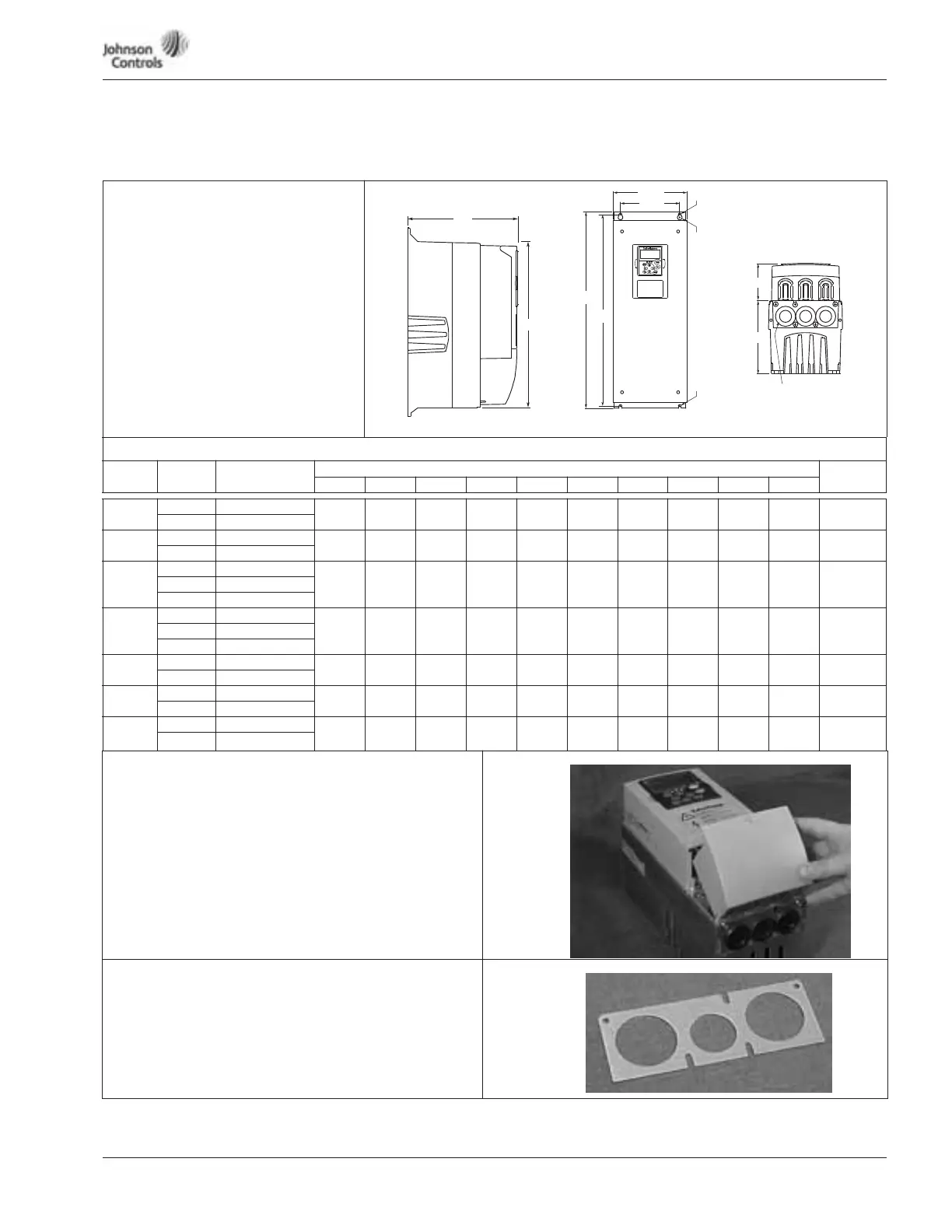

Figure 3-2:
VSD Series Open Drive Dimensions
Frame
Size
Voltage hp (VT) Approximate Dimensions in Inches (mm) Weight
Lbs. (kg)
H1 H2 H3 D1 D2 D3 W1 W2 R1 dia. R2 dia.
FR4 230V 3/4 – 3 12.9
(327)
12.3
(313)
11.5
(292)
7.5
(190)
2.5
(64)
5.0
(126)
5.0
(128)
3.9
(100)
.5
(13)
.3
(7)
11
(5)
480V 1 – 5
FR5 230V 5 – 7-1/2 16.5
(419)
16.0
(406)
15.4
(391)
8.4
(214)
2.7
(68)
5.8
(148)
5.7
(144)
3.9
(100)
.5
(13)
.3
(7)
17.9
(8.1)
480V 7-1/2 – 15
FR6 230V 10 – 15 22.0
(558)
21.3
(541)
20.4
(519)
9.3
(237)
2.7
(68)
6.7
(171)
7.7
(195)
5.8
(148)
.7
(18)
.4
(9)
40.8
(18.5)
480V 20 – 30
575V 2 – 25
FR7 230V 20 – 30 24.8
(630)
24.2
(614)
23.3
(591)
10.1
(257)
2.7
(68)
7.5
(189)
9.3
(237)
7.5
(190)
.7
(18)
.4
(9)
77.2
(35)
480V 40 – 60
575V 30 – 40
FR8 480V 75 – 125 29.7
(755)
28.8
(732)
28.4
(721)
11.3
(288)
1.3
(34)
11.0
(279)
11.2
(285)
10.0
(255)
.7
(18)
.4
(9)
127.8
(58)
575V 50 – 75
FR9 480V 150 – 200 45.3
(1150)
44.1
(1120)
— 14.3
(362)
5.4
(137)
8.8
(224)
18.9
(480)
15.7
(400)
.7
(18)
.4
(9)
321.9
(146)
575V 100 – 150
FR10 480V 250 – 350 44
(1120)
33.5
(850)
— 23.6
(600)
NA NA 23.6
(600)
16.7
(425)
.9
(23)
.47
(12)
550.7
(250)
575V 200 – 300
Power Wiring
Notice
Do not discard the plastic bag containing the wiring plate.
2. Remove the bottom cover by rotating the cover toward
you on the base hinges, then lifting the cover away from
the base.
Power Wiring
3. Locate the plastic bag shipped with the drive containing
the wiring plate, and remove the wiring plate.
R2
W1
W2
R2
R1
H1
H2
D1
H3
D2
D3
Knockouts
To Next Page
