Johnson Controls VSD Series User Manual

Powered by Eaton Technology VSD Series Drives User Manual
LIT-1201828 For more information visit: www.johnsoncontrols.com 6-5
November 2009

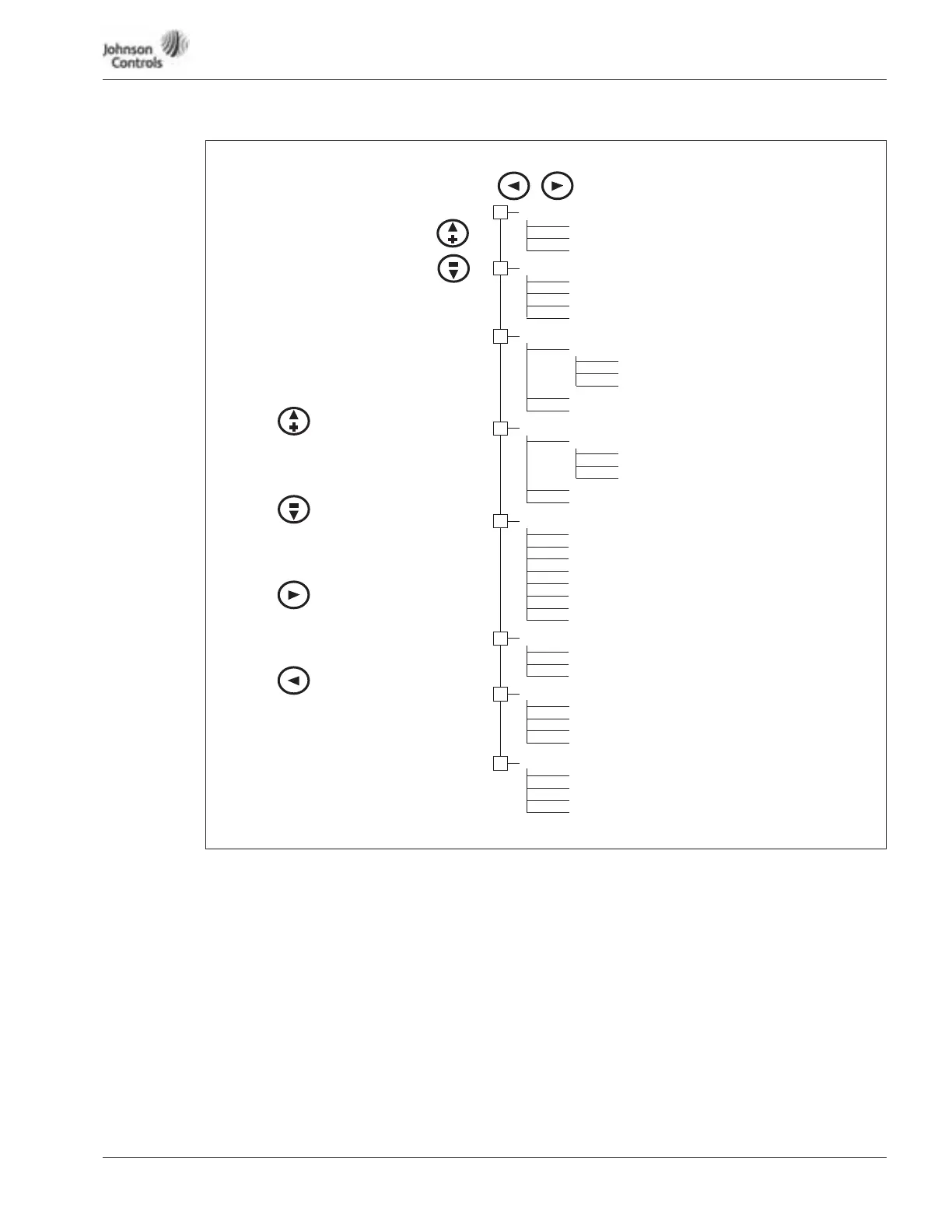

Figure 6-3: Main Menu Navigation

Menu application dependent.

For navigation of Operate Menu (M8), see Figure 6-2 on Page 6-1.
M1 Programming
햲
M2 Keypad Control
M3 Active Faults
M6 Expander Boards
M7 Monitor
M8 Operate Mode
햳
G1.1 Quick Setup
. . .
. . .
R2.1 Speed Setpoint
P2.2 Keypad Direction
P5.6.1
Default Page
P2.5 PI-StPt Default
A3.1 Active Fault 1
T3.1.1 Operation Days
. . .
T3.1.13 Zero Speed
A3.x Active Fault x
V7.1 Output Frequency
V7.2 Actual Speed
. . .
G1.x Field Bus
G6.1 Slot A Board
. . .
G6.5 Slot E Board
O1 Output Frequency
O2 Actual Speed
. . .
Ox . . .
+
+
+
+
+
G7.26 Multimonitor
햲
Menu Navigation:
Up Arrow — The up arrow
advances to the next
menu item.
For example, pressing the
up arrow once will
advance from M1 to M2.
Down Arrow — The down
Right Arrow — The right
Left Arrow — The left
arrow backs up to the
previous menu item.
arrow will advance to the
next level in the menu.
arrow will back up one
level in the menu
structure.
For example, pressing the
down arrow once will back
up from M2 to M1.
For example, pressing the
right arrow once will
advance from M2 to R2.1.
For example, pressing the
left arrow once will back
up from R2.1 to M2.
+
+
M5 System Menu
S5.1 Language
S5.2 Application
S5.3 Copy Parameters
+
S5.4 Compare Parameters
S5.5 Security
S5.6 Keypad Settings
S5.7 Hardware Settings
S5.8 System Information
. . .
M4 Fault History
1
2
3
6
7
8
5
4
H4.1 Most Recent Fault
T4.1.1 Operation Days
. . .
T4.1.13 Zero Speed
H4.1.x Oldest Saved Fault
. . .
