VSD Series Drives User Manual Powered by Eaton Technology
6-8 For more information visit: www.johnsoncontrols.com LIT-1201828
November 2009
Active Faults Menu (M3)
When a fault occurs, the drive stops. The sequence indication F1, the fault code, a short
description of the fault and the fault type symbol will appear on the display. In addition, the
indication FAULT or ALARM is displayed and, in case of a FAULT, the red LED on the keypad
starts to blink. If several faults occur simultaneously, the sequence of active faults can be
browsed with the Browser buttons. See Figure 6-6.
The active faults memory can store the maximum of 10 faults in the sequential order of
appearance. The fault remains active until it is cleared with the STOP/RESET button or with a
reset signal from the I/O terminal. Upon fault reset the display will be cleared and will return
to the same state it was before the fault trip.

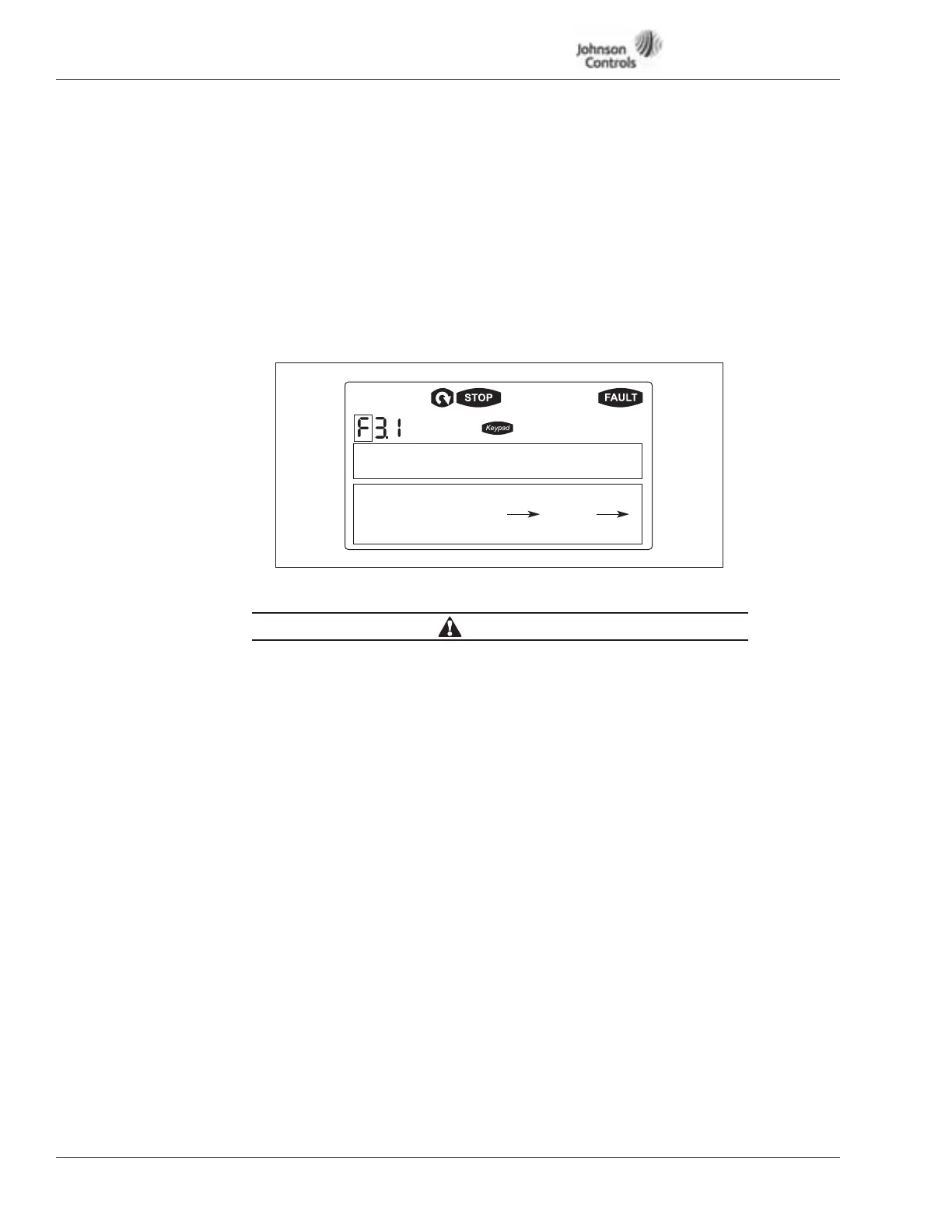

Figure 6-6: Active Fault Display Example
CAUTION
Remove any External Start signals or permissives before resetting
the fault to prevent an unintentional restart of the drive, which
could result in personal injury or equipment damage.
51 Ext Fault
FT1T13
