Johnson Controls VSD Series User Manual

Powered by Eaton Technology VSD Series Drives User Manual
LIT-1201828 For more information visit: www.johnsoncontrols.com 7-5
November 2009

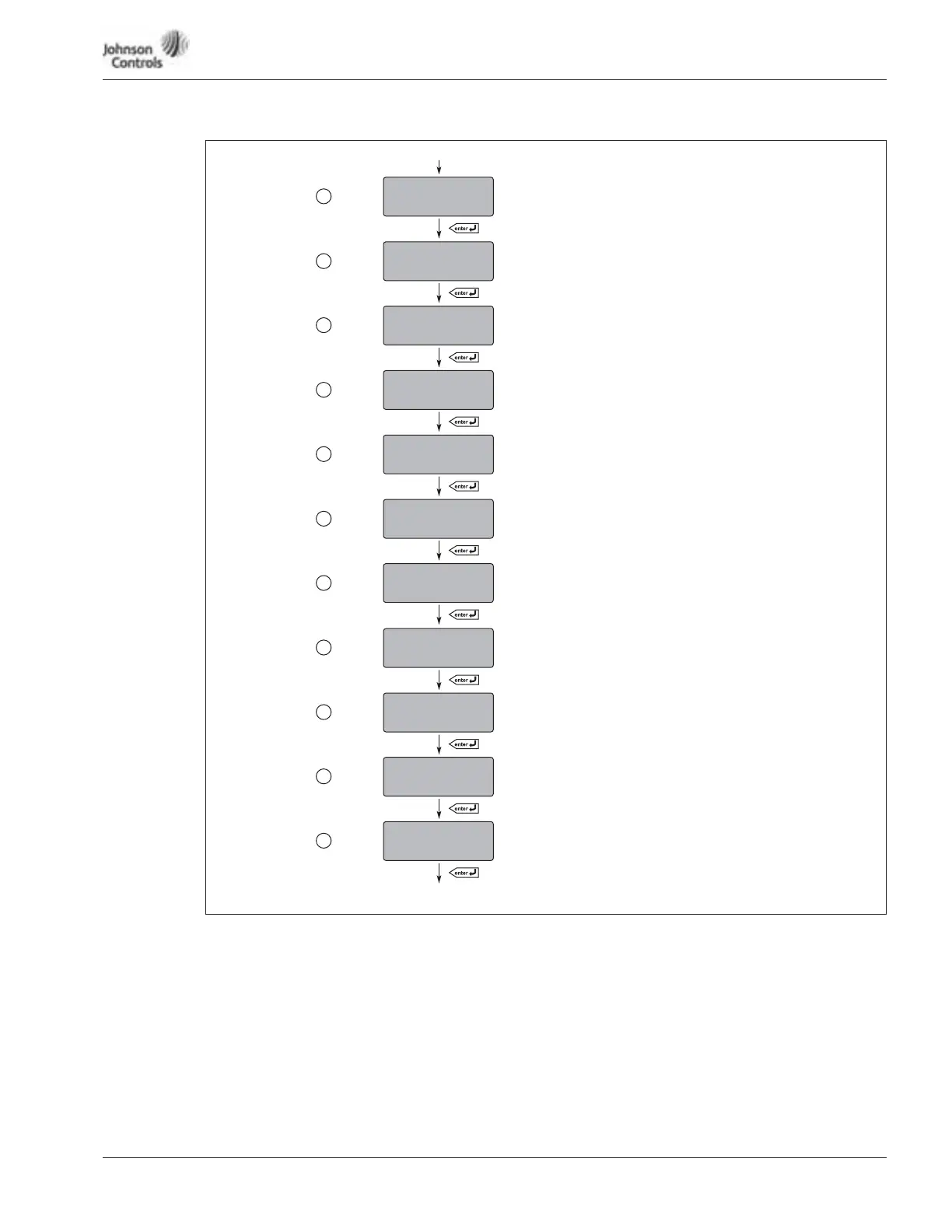

Figure 7-2: Start-Up Wizard Navigation (2 of 3)
motor NP rpm
1720 rpm
Motor Name Plate Speed
1720 rpm
min. frequency
12.00 Hz
Drive Minimum Output Frequency
default 12.00 Hz
max. frequency
60.00
Drive Maximum Output Frequency
default 60.00 Hz
AUTO ACCEL Time
60.0s
Acceleration time from zero to Max. Frequency,
when running in auto mode and PI-regulator is not active.
default 60.0 seconds
AUTO DECEL time
60.0s
Deceleration time from Max. Frequency to zero,
when in auto mode and drive is stopped.
default 60.0 seconds
PI-input source
(a) ai-1
PI Input/Feedback Auto source, when PI is active:
AI-1 (0-10V DC); AI-2 (0-20 mA); Fieldbus
default AI-1
motor NP freq
60.00 Hz
Motor Name Plate Frequency
default 60.00 Hz
sensor min. scale
XXX.X
PID Input/Feedback device min. value
This value corresponds to the min. value of the sensor
output and to P1.2.10 or P1.2.14
(not available in Remote Input and Generic PI applications)
AI-1 Min.
0.0%
Analog Input 1 min. value
0.00% = 0V
(not available in Remote Input and Generic PI applications)
8Steps:
9
10
11
12
13
14
15
16
sensor max. scale
XXX.X
Analog Input 1 max. value
100.00% = 10V
(not available in Remote Input and Generic PI applications)
17
AI-1 Max.
100.00%
PID Input/Feedback device max. value
This value corresponds to the max. value of the sensor
output and to P1.2.11 or P1.2.15
(not available in Remote Input and Generic PI applications)
Continued
18
