Johnson Controls VSD Series User Manual

Powered by Eaton Technology VSD Series Drives User Manual
LIT-1201828 For more information visit: www.johnsoncontrols.com 15-17
November 2009

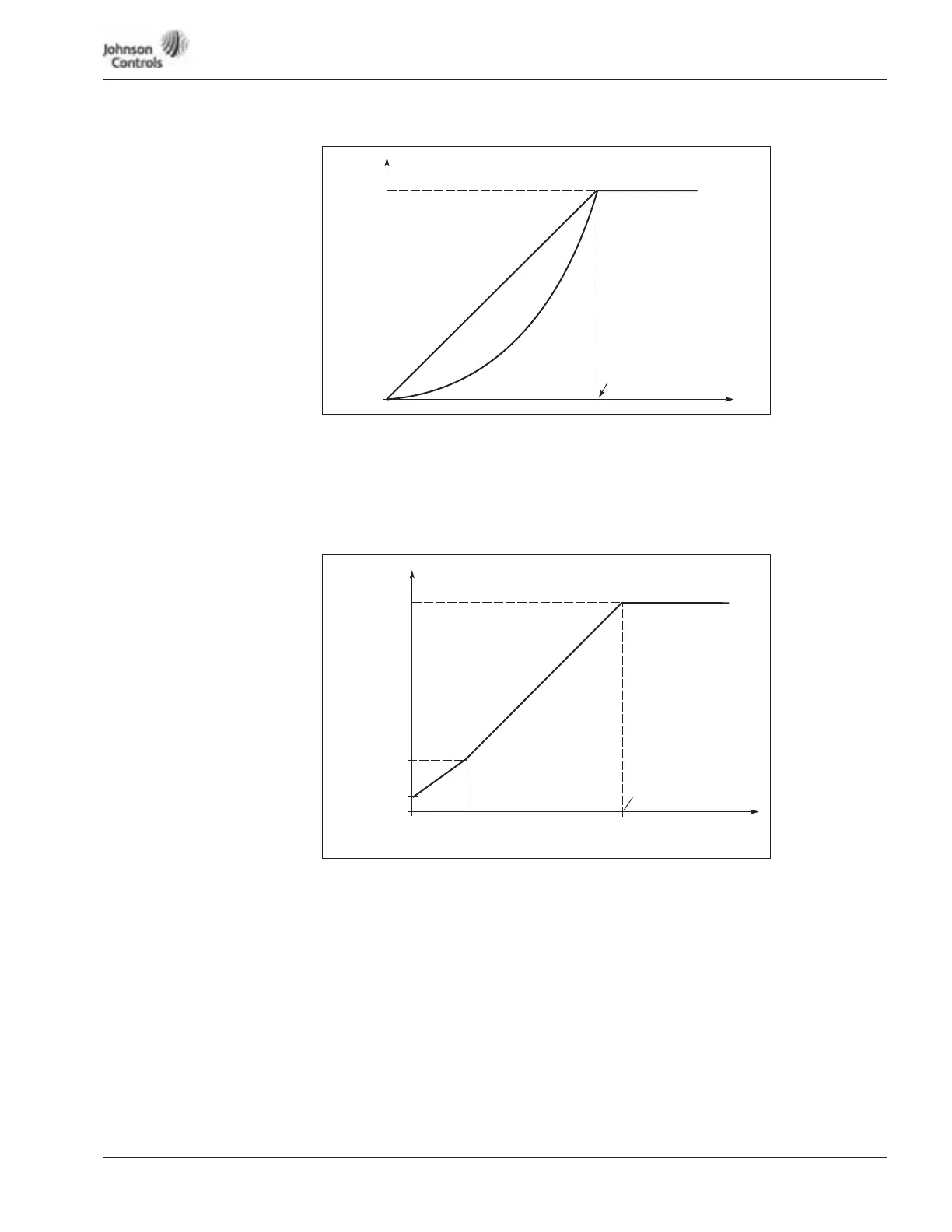

Figure 15-14: Linear and Squared V/Hz Ratio
Figure 15-15: Programmable V/Hz Curve
Programmable V/Hz curve:
2 The V/Hz curve can be programmed with three different points. A
programmable V/Hz curve can be used if the other settings do not satisfy
the needs of the application.
Linear with flux optimization:
3 The drive starts to search for the minimum motor current in order to save
energy, lower the disturbance level and the noise. This function can be
used in applications with constant motor load, such as fans, pumps etc.
604 Field weakening point
The field weakening point is the output frequency at which the output voltage reaches
the set (ID605) maximum value.
V
f [Hz]
Linear
Squared
Vn
ID605
Default: Nominal
Voltage of the Motor
Field Weakening
Point
Default: Nominal
Frequency of the
Motor
ID607
(Default 10%)
ID608
(Default 1.3%)
ID606
(Default 5 Hz)
ID602
V
f[Hz]
Vn
ID605
Default: Nominal
Voltage of the Motor
Field Weakening
Point
Default: Nominal
Frequency of the
Motor
