VSD Series Drives User Manual Powered by Eaton Technology
1-2 For more information visit: www.johnsoncontrols.com LIT-1201828
November 2009

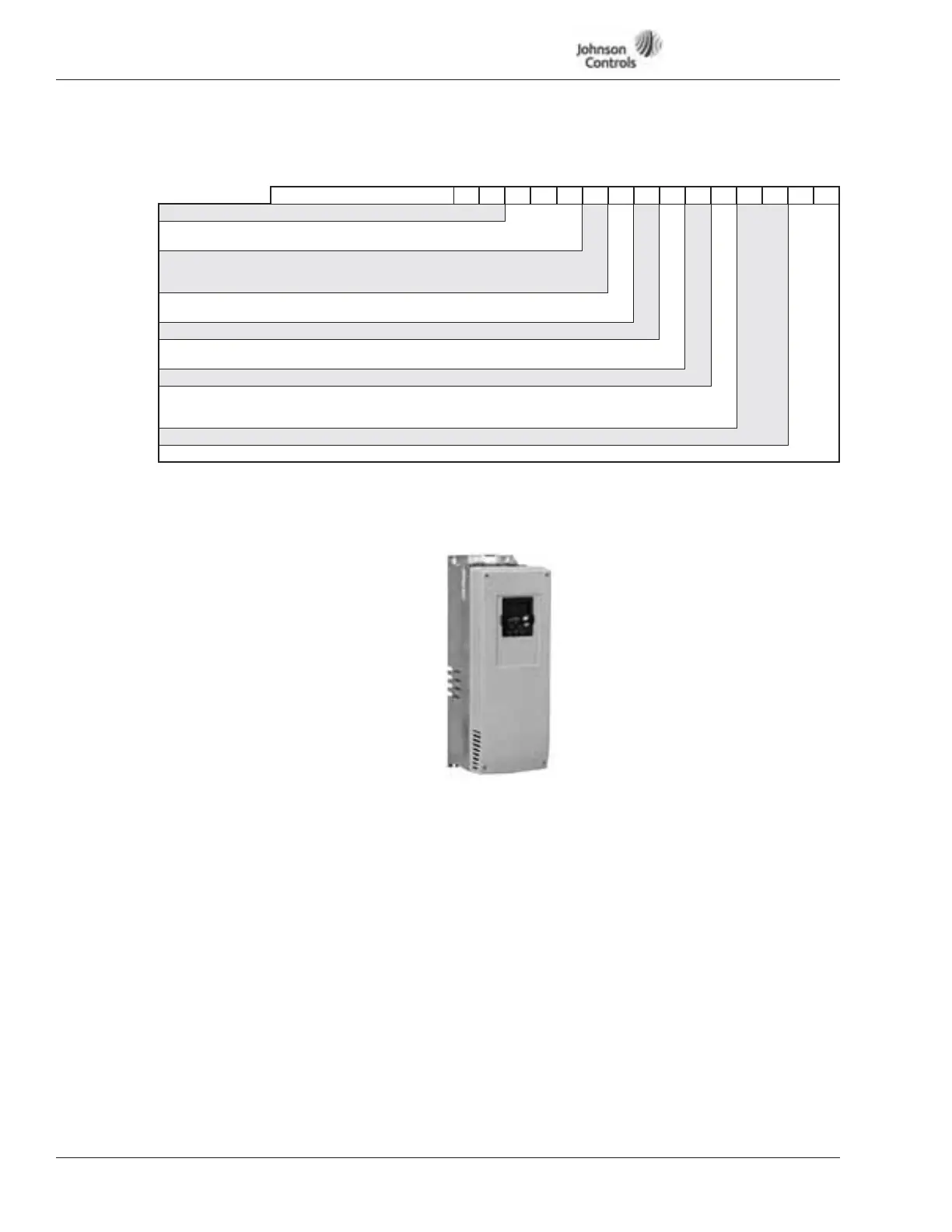

Catalog Numbering System
Table 1-1: VSD Series Open Drives Selection Chart
All horsepower ratings are Variable Torque (VT).
3 to 200 @ 575V; 1-1/2 to 250 hp @ 480V; 1 to 100 hp @ 230V.
Voltage Ratings: 230V = 208 – 240V; 480V = 380 – 500V; 575V = 525 – 690V.
N2/XT Communications selectable on drive keypad.
SA = Sensor Actuator Bus for FEC Interface.
Code Number V S 0 A - N 0000
Base Product VS = Variable Speed Drive Prefix
Horsepower (VT)
001 = 1.0 hp to
250 = 250 hp
Voltage
2 = 230V (or 208V)
4 = 480V
5 = 575V
Enclosure Rating 1 = TYPE 1
2 = TYPE 12
Enclosure Style 0 = None (Open Drive)
Revision # A = Rev 1 (Americas)
C = Rev 1 (Canada)
Separator (–)
Communications
0 = None
N = N2/XT/SA
Bus Comm (N2 by default)
L = L
ONWORKS
®
Network
Option 1 00 = None
Option 2 00 = None
Johnson Controls Open Drive
TYPE 1 & TYPE 12, 208 – 240V, 380 – 500V, 525 – 690V
