Fault History Menu (M4)
All faults are stored in the Fault History Menu, which can be viewed by using the Browser
buttons. Additionally, the Fault time data record pages are accessible for each fault as in the
Active Faults Menu described above. See Figure 6-7.
The drive’s memory can store a maximum of 30 faults, in the order of appearance. If there are
30 uncleared faults in the memory, the next occurring fault will erase the oldest fault from the
memory.

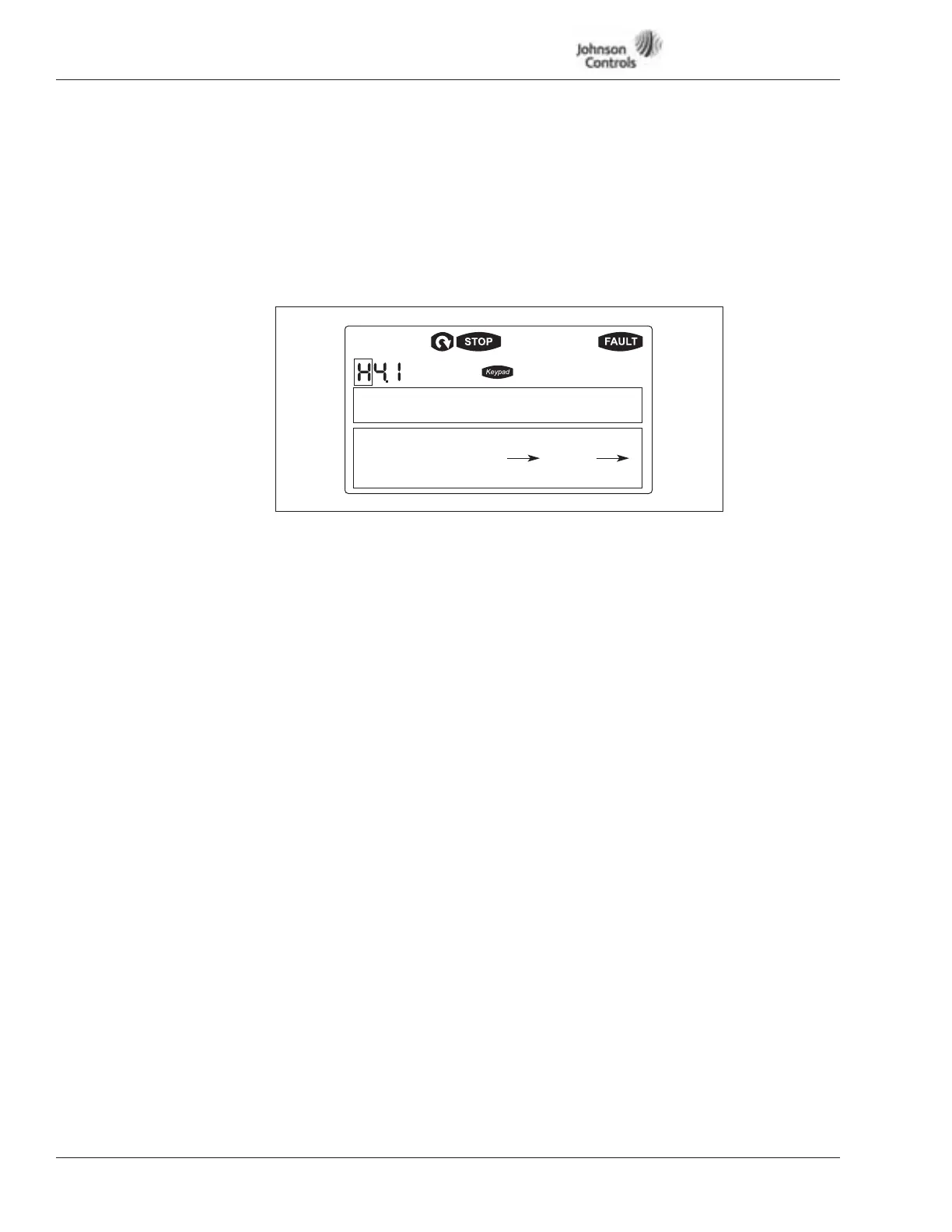

Figure 6-7: Sample Fault History Display
Note: Pressing the ENTER button for 3 seconds will clear the entire fault history.
11 Output Phase
FT1T13
To Next Page
