VSD Series Drives User Manual Powered by Eaton Technology
7-6 For more information visit: www.johnsoncontrols.com LIT-1201828
November 2009

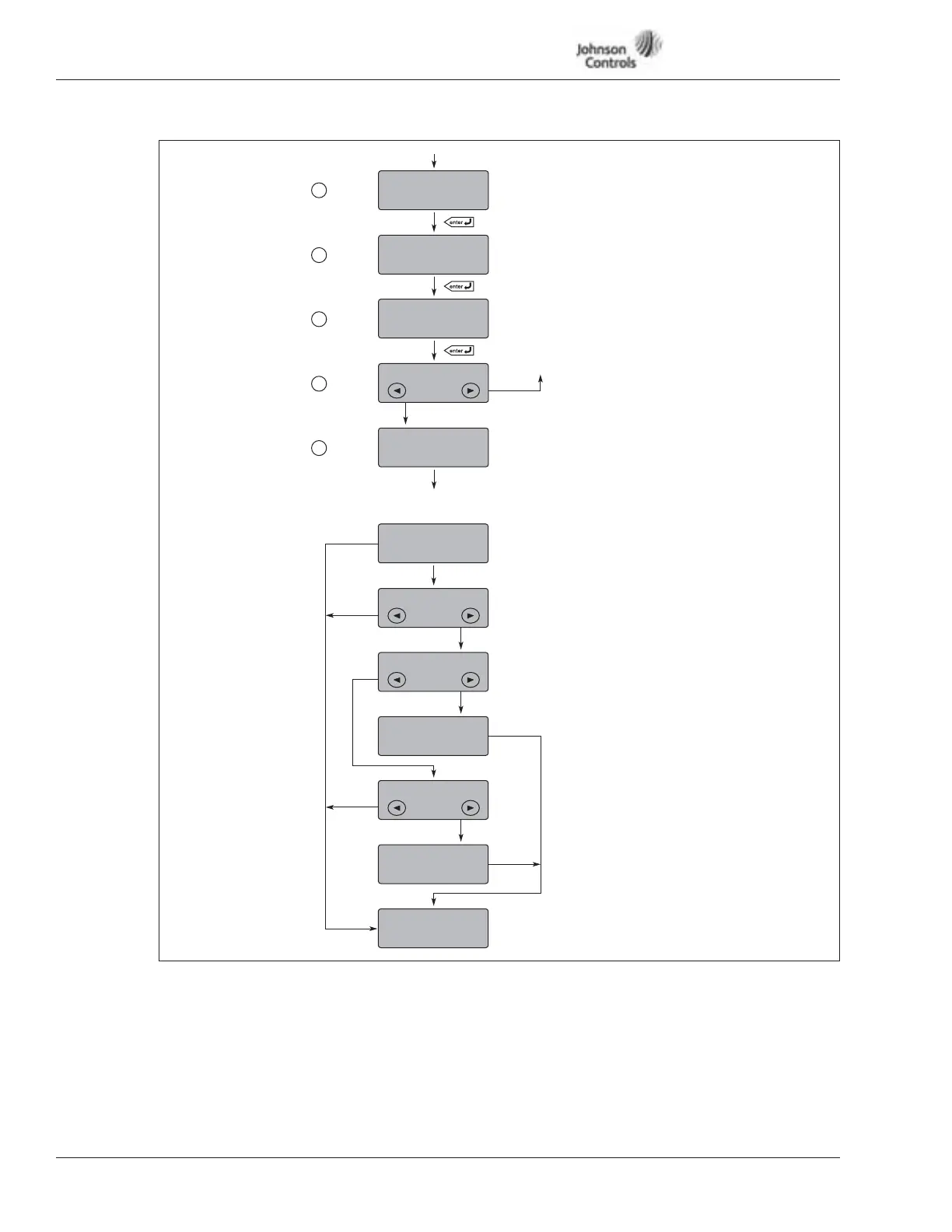

Figure 7-3: Start-Up Wizard Navigation (3 of 3)
Note: Start-Up Wizard can be cancelled with the STOP/RESET button. If pressed, the text
“EXIT?” is shown on the display along with “No” and “Yes”.
Note: In Pressure Control application, inverse selection is an option.
copy from keypad
NO yes
PI-contr I-time
30.00
PI control integration time
default 30.00 second
repeat setup?
NO yes
Jump to
*
setup done
press enter
new keypad
press enter
When keypad is used for copying
parameters to or from another drive
PI-contr. p-gain
0.10
PI control gain value
default will vary depending on application
downloading . . .
wait. . .
copy to keypad
NO yes
operate menu
default page
uploading . . .
wait. . .
copy parameters
NO yes
PI-stpt
PI Setpoint if source is fieldbus
(not available in Remote Input application)
19Steps:
20
21
22
23
To Next Page
