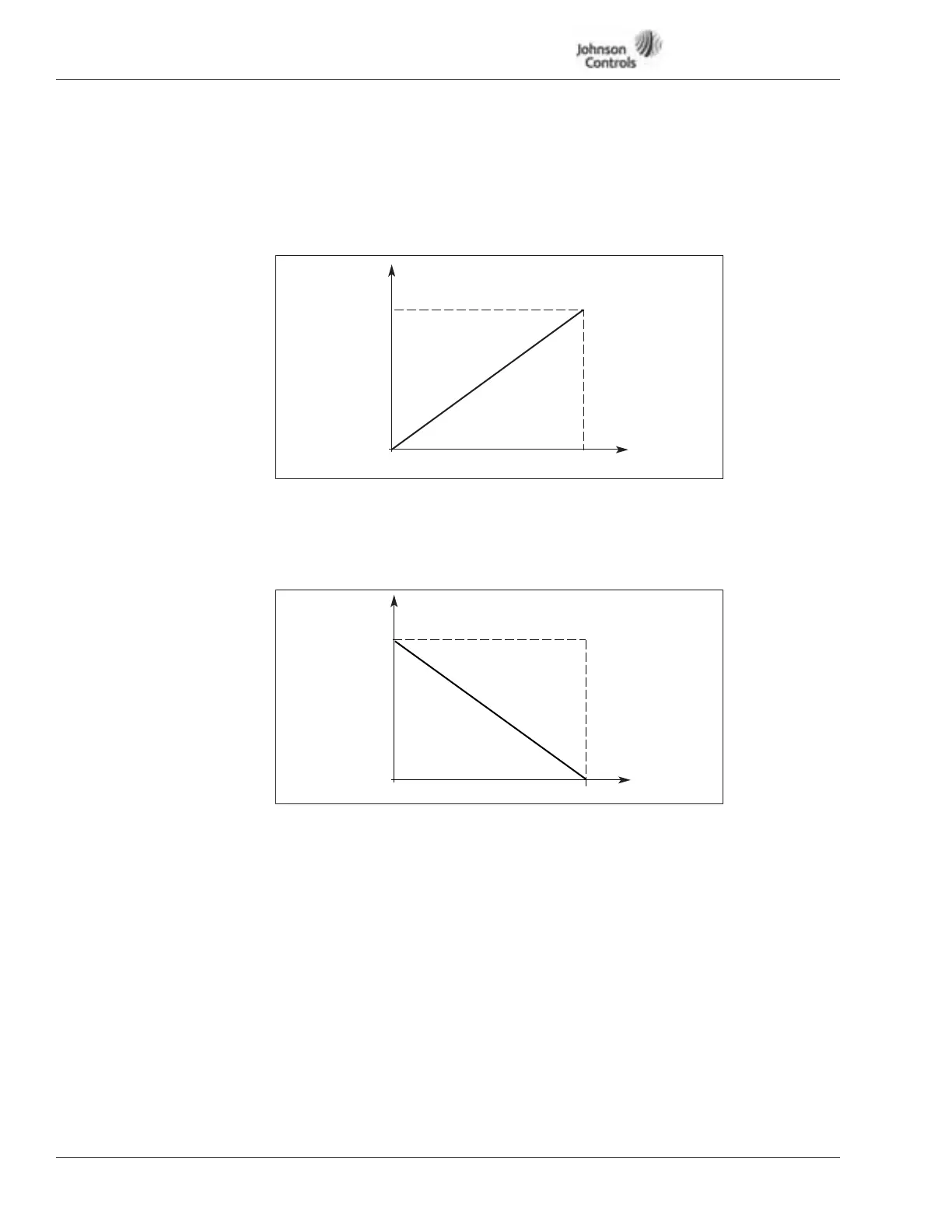

Figure 15-1: AI-1 No Signal Inversion
Figure 15-2: AI-1 Signal Inversion
208 DI-6 Function
Same as DI-2 (ID204) except selection 0 = Overload fault relay input for Intellipass use.
209 AI-1 signal inversion
If this parameter = 0 no inversion of analog V
in
signal takes place.
If this parameter = 1 inversion of analog signal takes place.
max. AI-1 signal = zero speed
min. AI-1 signal = maximum set speed
Output
Frequency
ID102
0
100%
AI-1
(Term. 2)
Max. Frequency
Output
Frequency
ID102
0
100%
AI-1
(Term. 2)
Max. Frequency
