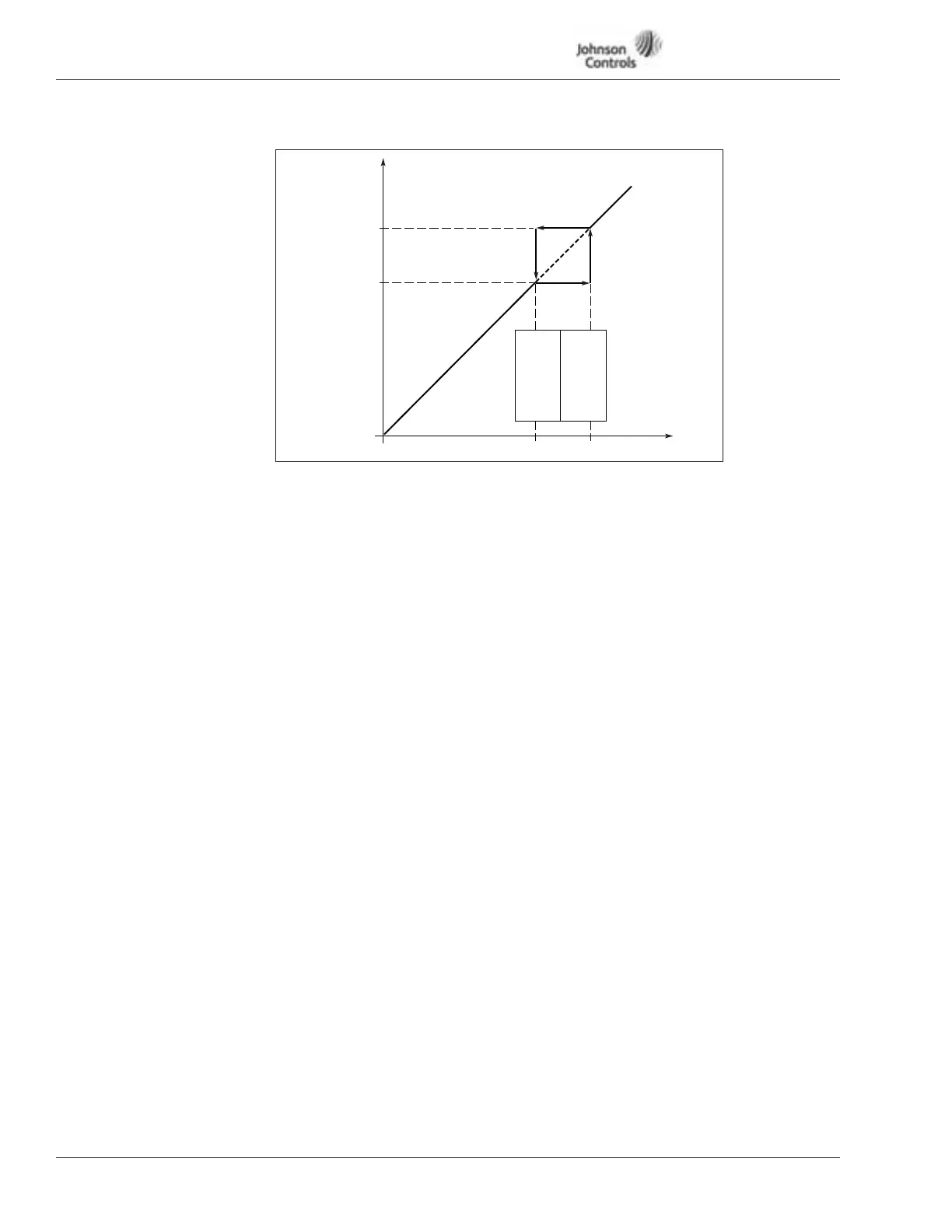

Figure 15-12: Example of Prohibit Frequency Area Setting
503 Prohibit frequency area 2;
Low limit
504 Prohibit frequency area 2;
High limit
505 Prohibit frequency area 3;
Low limit
506 Prohibit frequency area 3;
High limit
507 Prohibit frequency area 4;
Low limit
508 Prohibit frequency area 4;
High limit
509 Prohibit frequency area 5;
Low limit
510 Prohibit frequency area 5;
High limit
511 Prohibit frequency area 6;
Low limit
512 Prohibit frequency area 6;
High limit
Output
Frequency
(Hz)
ID501
ID503
ID505
ID507
ID509
ID511
ID502
ID504
ID506
ID508
ID510
ID512
Reference (Hz)
