Johnson Controls VSD Series User Manual

Powered by Eaton Technology VSD Series Drives User Manual
LIT-1201828 For more information visit: www.johnsoncontrols.com 6-1
November 2009
Chapter 6 — Menu Information
Keypad Operation
The menu is navigated by using the left and right arrow buttons. If a reference level is
available for setting, the up and down arrow buttons adjust the value. To exit the Operate
Menu to access the other menus, depress the ENTER button for 2 seconds. While in the other
menus, if there is no keypad activity, the display will return to the Operate Menu after one
minute. Figure 6-2 illustrates the Operate Menu button function.

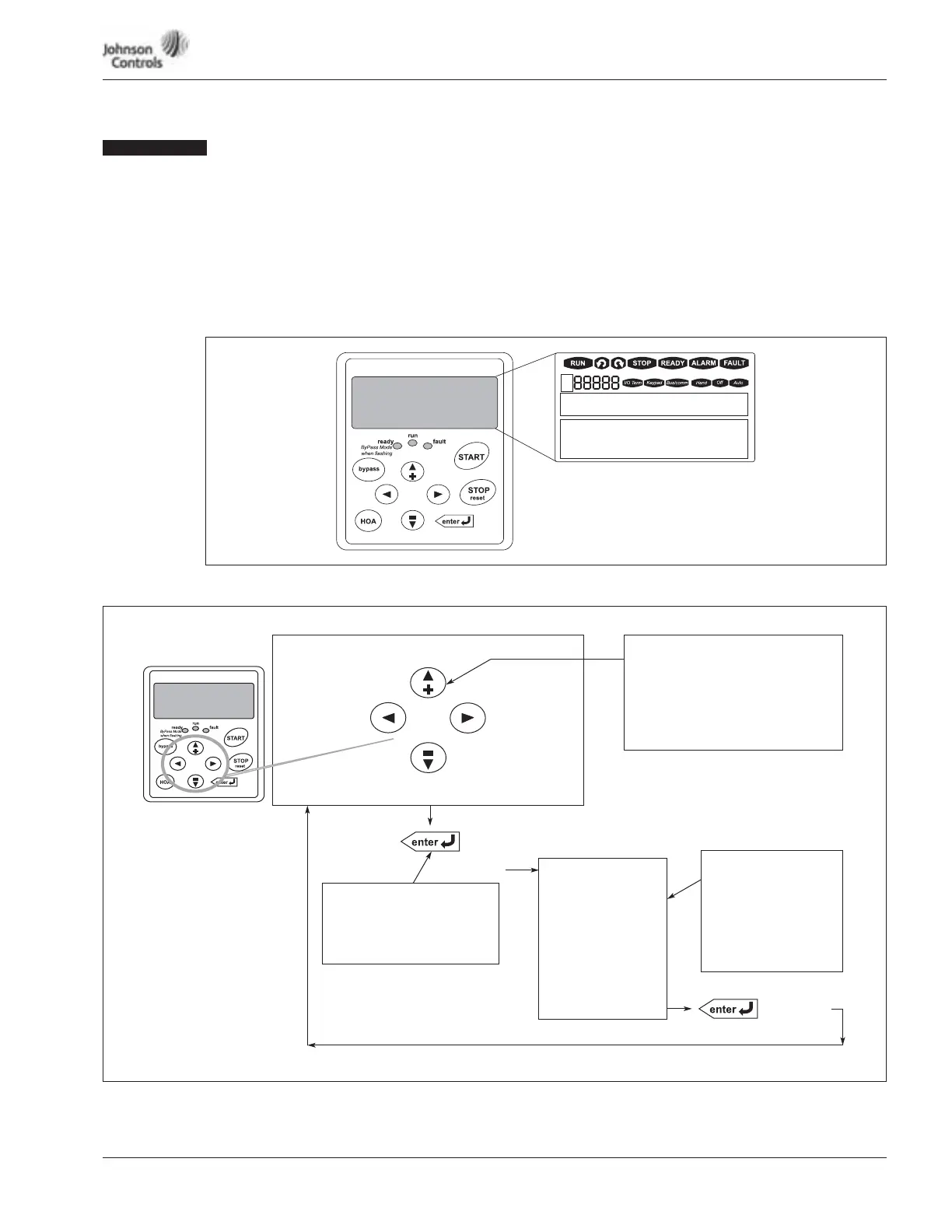

Figure 6-1: Keypad and Display
Figure 6-2: Operate Menu Navigation
One Touch Operate Menu Navigation
Freq Ref Up
Password ?
Freq Ref Down
Exit Operate Menu by navigating
to Programming display and
pressing ENTER button or simply
press ENTER button 1 second.
Acknowledgement password
value if defined.
Monitor Display
Navigation Left
Monitor Display
Navigation Right
Programming Menu *
Note!
HOA OFF-MODE OR HAND-MODE
• Up and down arrows are used to
adjust speed setpoint
HOA AUTO-MODE
• Up and down arrows are used to
adjust PI-Setpoint
Note!
While in Programming
Menu the display will
automatically return to
default Operate Menu
display after 1 minute
of inactivity. (Time can
be adjusted with
Parameter P5.6.3).
or time delay
M1 Parameters
M2 Keypad Control
M3 Active Faults
M4 Fault History
M5 System Menu
M6 Expander Boards
M7 Monitor
Return to Operate
* See User Manual (LIT-1201828) for complete parameter list.
