Chapter 5 — IntelliPass Bypass Option
Product Description
The Johnson Controls VSD Series IntelliPass Drive is powered by the Cutler-Hammer
®
tradition of providing a premier intelligent drive integrated with a reliable bypass
configuration, by taking advantage of the enclosed control and circuit breaker expertise of
Eaton’s electrical business.
The IntelliPass bypass is a two- or three-contactor design utilizing the Cutler-Hammer
24V DC series of contactors and power supplies. The features, function and form allow the
drive and bypass to become an integrated design, enabling Johnson Controls to introduce
the world’s smallest drive and bypass package. The IntelliPass drive comes standard with a
Cutler-Hammer protective disconnect integrated into the drive and bypass design.

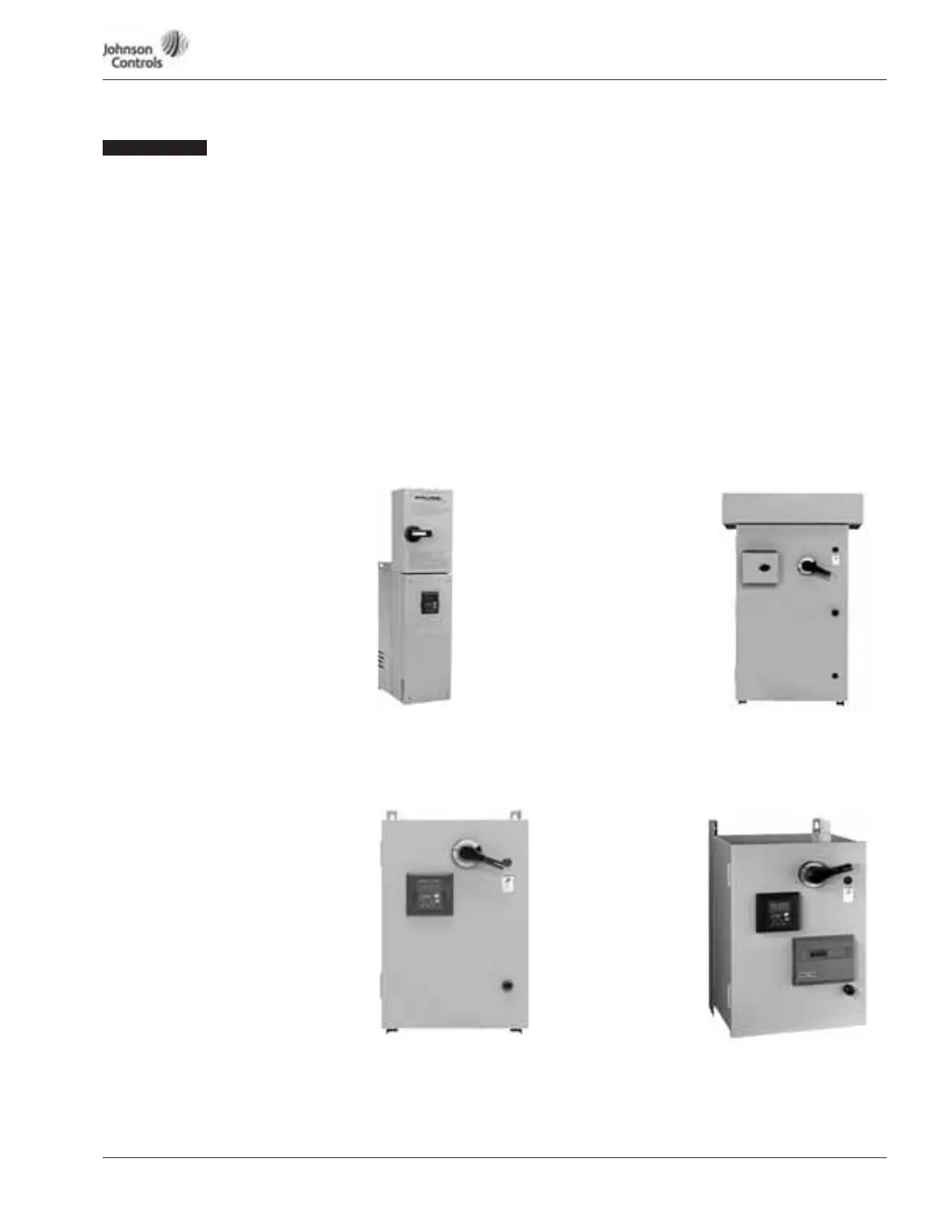

IntelliPass 2 & 3 Contactor
Bypass Drive
IntelliPass TYPE 12, 2 & 3 Contactor
Bypass Drive
IntelliPass TYPE 3R, 2 & 3 Contactor
Bypass Drive
DX-9100 TYPE 1, 2 & 3 Contactor
Bypass Drive
208V, 1 – 30 hp
230V, 1 – 30 hp
480V, 1 – 75 hp
208V, 1-1/2 – 60 hp
230V, 1 – 75 hp
480V, 1 – 150 hp
575V, 3 – 100 hp
208V, 1-1/2 – 60 hp
230V, 1 – 75 hp
480V, 1 – 150 hp
575V, 3 – 100 hp
208V, 1-1/2 – 60 hp
230V, 1 – 75 hp
480V, 1 – 150 hp
575V, 3 – 100 hp
