VSD Series Drives User Manual Powered by Eaton Technology
5-8 For more information visit: www.johnsoncontrols.com LIT-1201828
November 2009

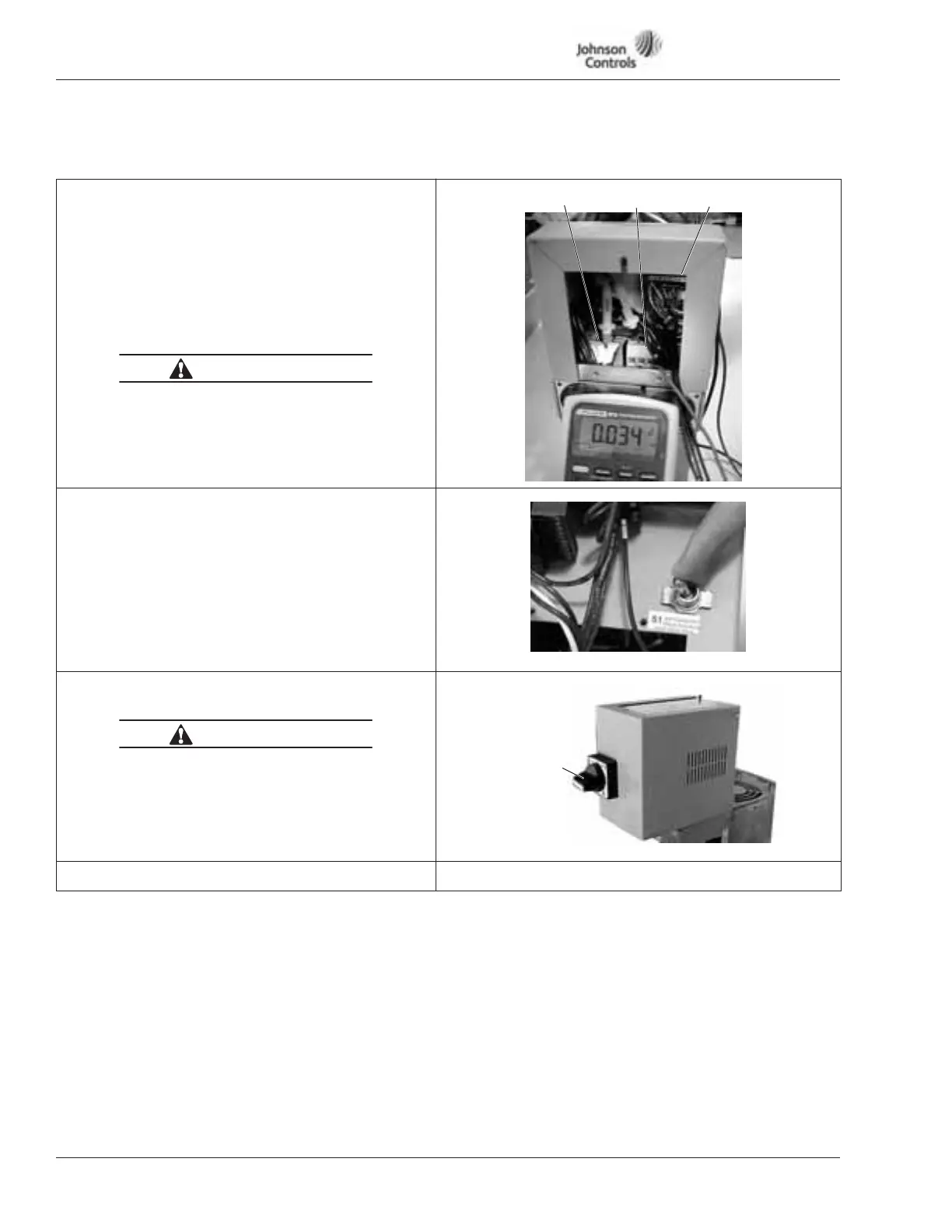

Table 5-6: Bypass Power Wiring Instructions — NEMA Type 1 IntelliPass/IntelliDisconnect Drive (Continued)
Static Check
27. Make sure power is off, and perform static checks as
described in Table 5-10 (for the converter), Table 5-11
(for the inverter) and Table 5-12 (for the DC bus). Refer to
Page 5-14, Static Check.
Note: Static check shown is for L3 and B+ terminals.
28. Once the pre-power static checks are completed,
reinstall the drive’s outer and side covers, tightening
all the screws.
High Voltage is present on L1, L2, L3, B-, B+, BT, T1, T2, T3.
Starting Drive
29. Make sure that the drive’s 3rd contactor S1 switch, if
present, is in the ON position (shown in OFF position).
Note: The bypass mode operates with the switch in the OFF
position, however the drive will not run. Yet the keypad
will operate.
Starting Drive
30. Turn the circuit breaker handle in a clockwise direction.
High Voltage
● Always work with another person.
● Be sure equipment is properly grounded.
● Wear safety glasses.
Start-Up Wizard
See Page 7-4, Start-Up Wizard
WARNING
L1, L2, L3 B-, B+, BT T1, T2, T3
WARNING
Circuit Breaker
Handle
To Next Page
