1
1 – 6
1.4

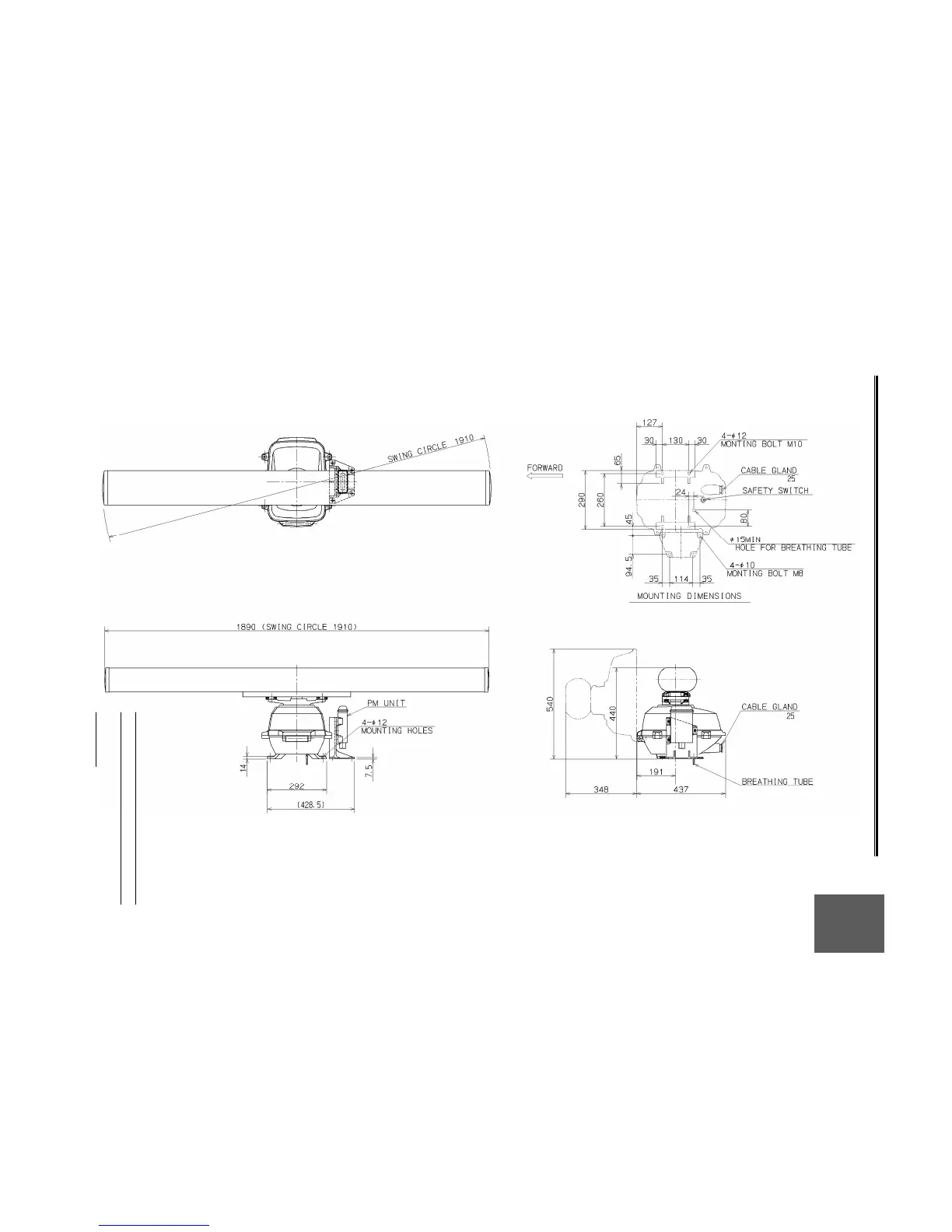

Fig. 1.1 Outline Drawing of Scanner Unit Type NKE-1055-6
MASS APPROX. 33 O (SCANNER UNIT)
MASS APPROX. 3 O (PM UNIT)
UNIT mm
