3 – 27
3.3

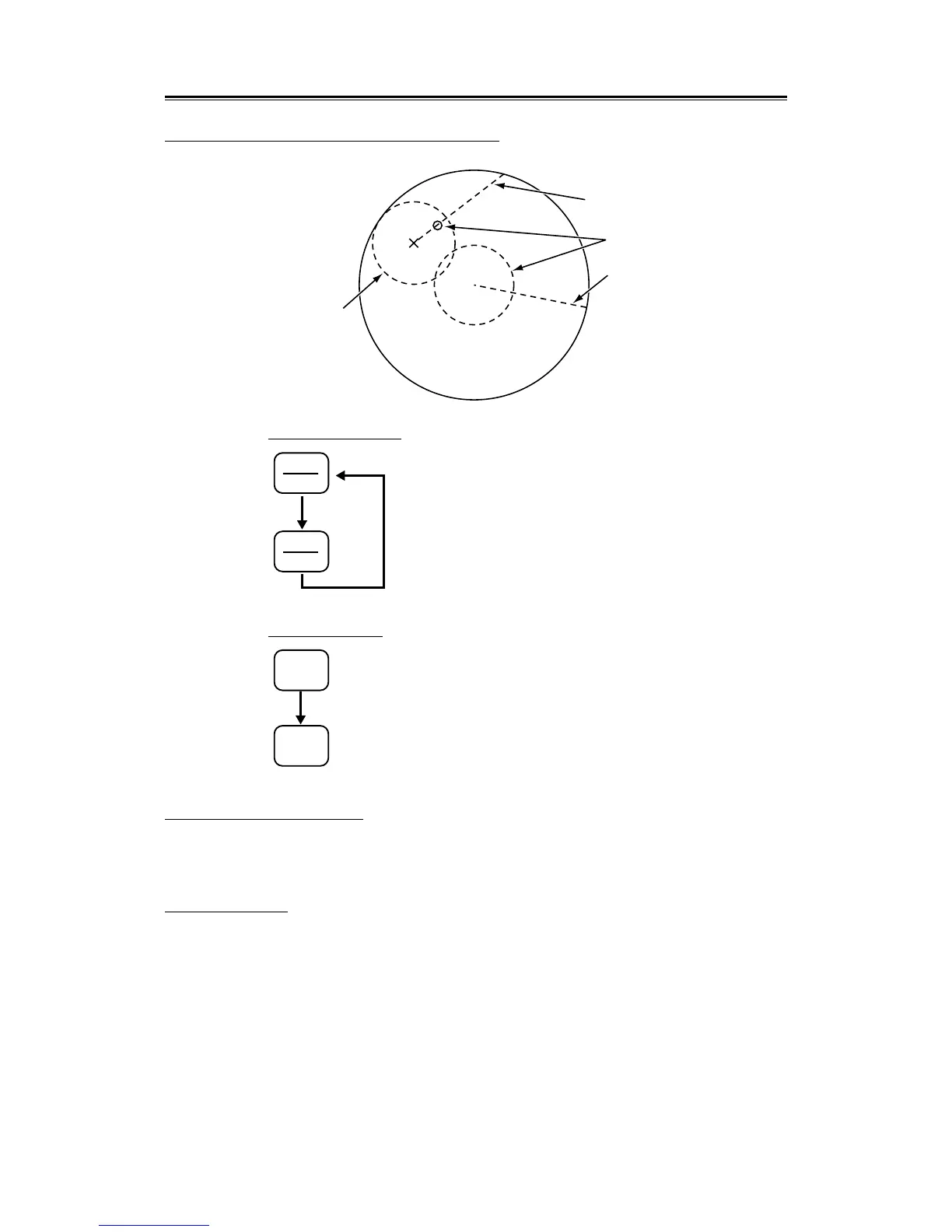

When EBL2 is used in the floating mode
EBL2
EBL1
VRM1
VRM2
Displaying VRM
The VRM currently selected is displayed in a box on the lower left
of the screen.
Pressing the [VRM1／VRM2] key once displays (selects) VRM1.
Pressing it again displays (selects) VRM2.
Clearing VRM
Pressing the [VRM OFF] switch once clears the VRM outside a
box on the lower left of the screen.
Pressing it again clears the other VRM.
Bearing Display of VRM
◎ The numerical bearings of VRM1 and VRM2 currently displayed on the PPI is displayed on the lower
left of the screen. Also, VRM1 or VRM2 currently activated is displayed in a box above the range data.
Motion of VRM
◎ Variable range markers are displayed around the own ship. Turn the VRM control clockwise to increase
the scale or counterclockwise to decrease it.
VRM1
VRM2
VRM1
VRM2
VRM
OFF
VRM
OFF
