3-32
3
3.4 General
Radar
Operations
y
y
y
Changing Motion Mode of
T
rails (T
rails Mode)
Procedures
1

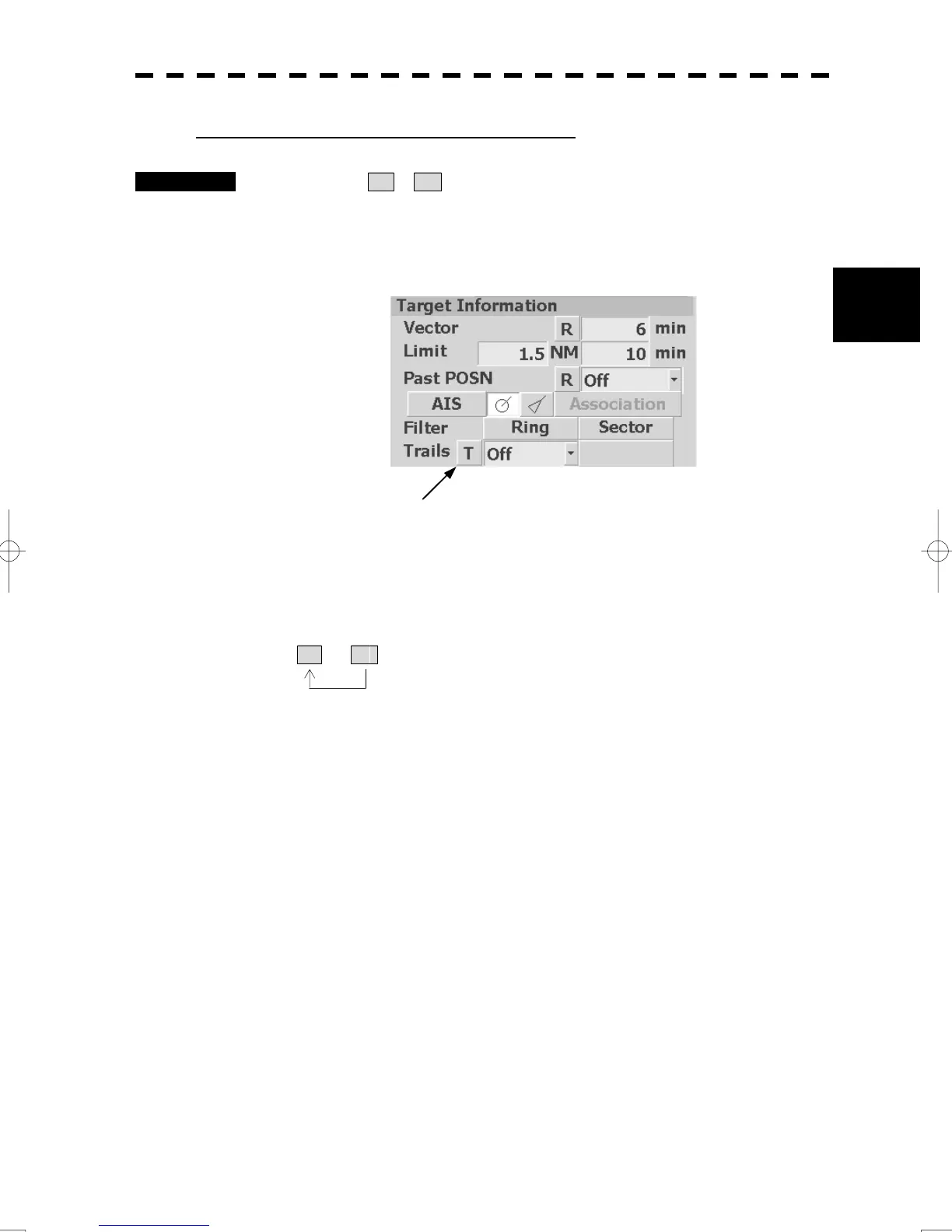

Click the
T
/
R
button located at the upper right of the radar display
.
The trails motion modes are switched.
T
⇒
R
Radar trail
Switch of T
rue/ Relative motion trail
138
140
