8.5.5.2 Replacement of battery on CBD-1831(UPS Battery)

Replace the UPS Battery (CBD-1831) with a new one.

(Note

: CBD-1626 is used according to a manufacturing lot.)

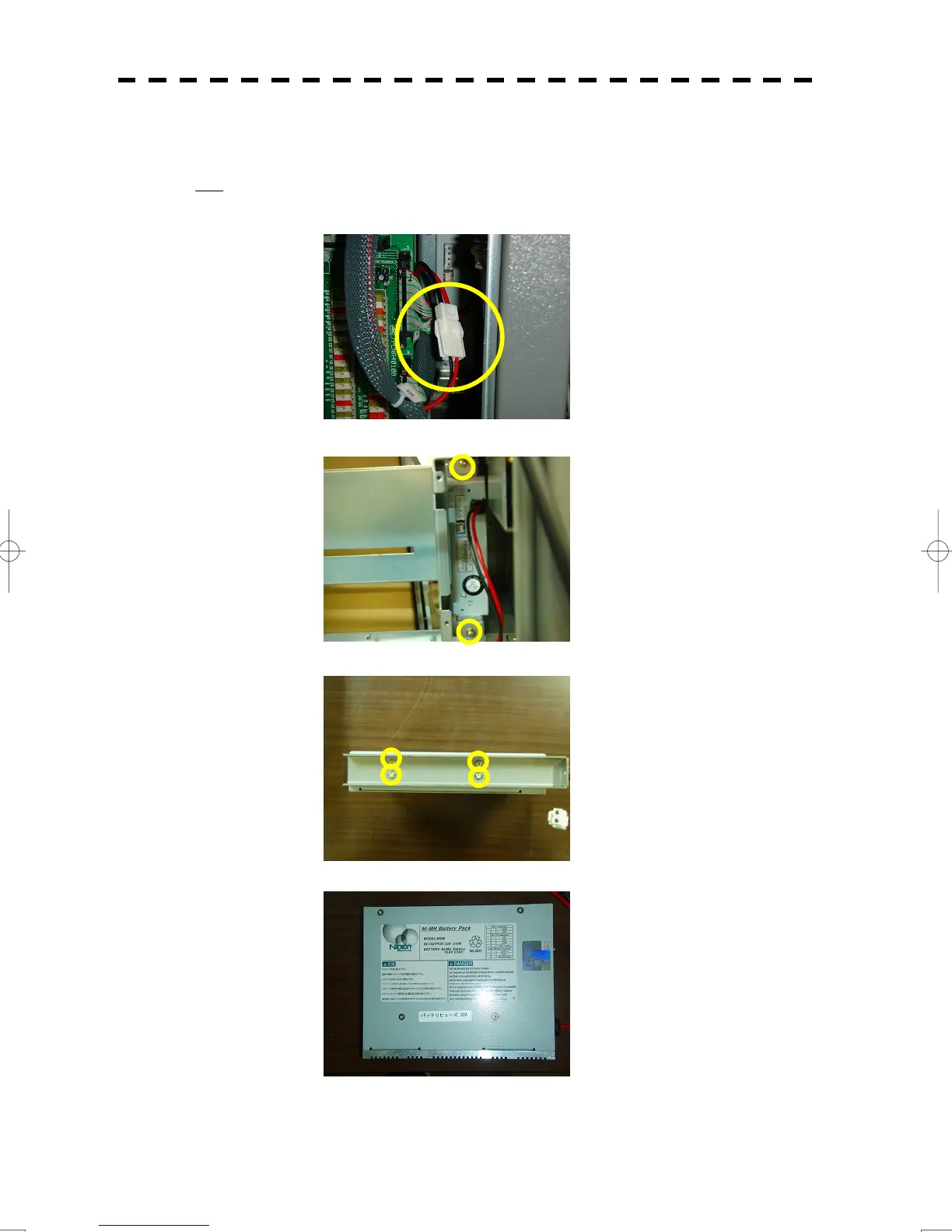

1) Remove cables connected to CBD-1831 UPS battery.

2) Remove screws fixing in NDC-1445/1444 processing unit.

3) Unscrew CBD-1831 UPS battery. (There are four screws each on upper and lower side.)

4) Replace it with new CBD-1831 UPS battery.

5) Install CBD-1831 UPS battery in NDC-1445/1444 processing unit in the reverse order of removing

it.
