4.2.3 Measurement with Two Arbitrary Points
Procedures 1 Press the [EBL2] key.
The EBL2 ( located at the upper right of the display) will be highlighted, and EBL2
will be shown on the PPI display.
2 Press the [EBL] dial to select C for the EBL2 starting point mode
switching located at the upper right of the radar display.
3 Put the cursor on the point A of the two points between which
measurement is made, and left-click.

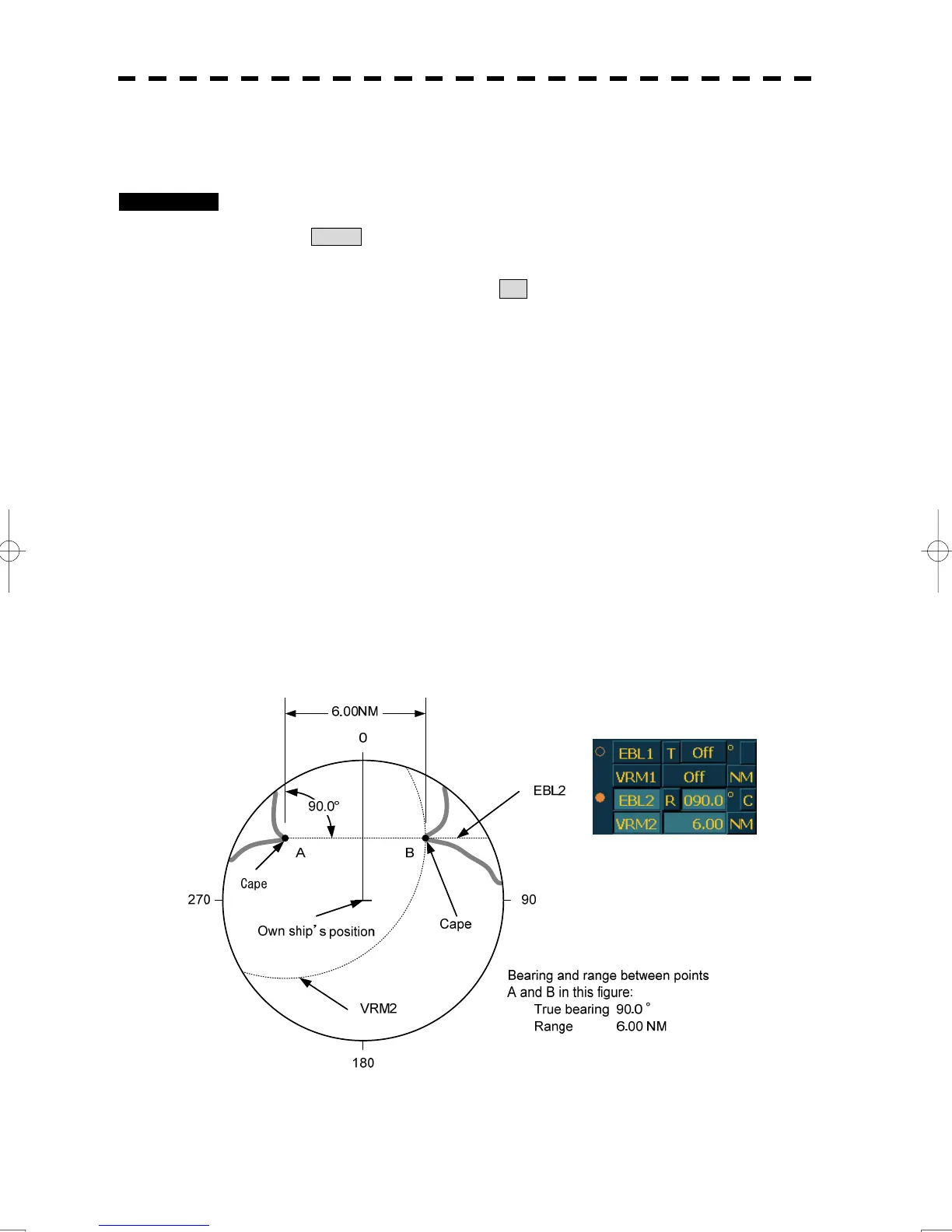

Refer to the figure below.
4 Move the EBL2 to the other point B by turning the [EBL] dial.
Refer to the figure below.
5 Press the [VRM2] key.
When VRM2 is selected, ● (intersection marker) will appear on the dotted line of
EBL2.
6 Move the intersection marker on the dotted line to point B by turning the
[VRM] dial.
The range and bearing between the two points will be shown in the VRM2 range and
EBL2 bearing (located at the upper right of radar display).
Similarly, EBL1 can also be used for measuring the bearing and range between two points. In this case,
perform the above procedure reading EBL2 as EBL1 and VRM2 as VRM1.
To Next Page
