4.1 Use of Navigation Tools
y
yyy
[II] Operation of Parallel Index Lines

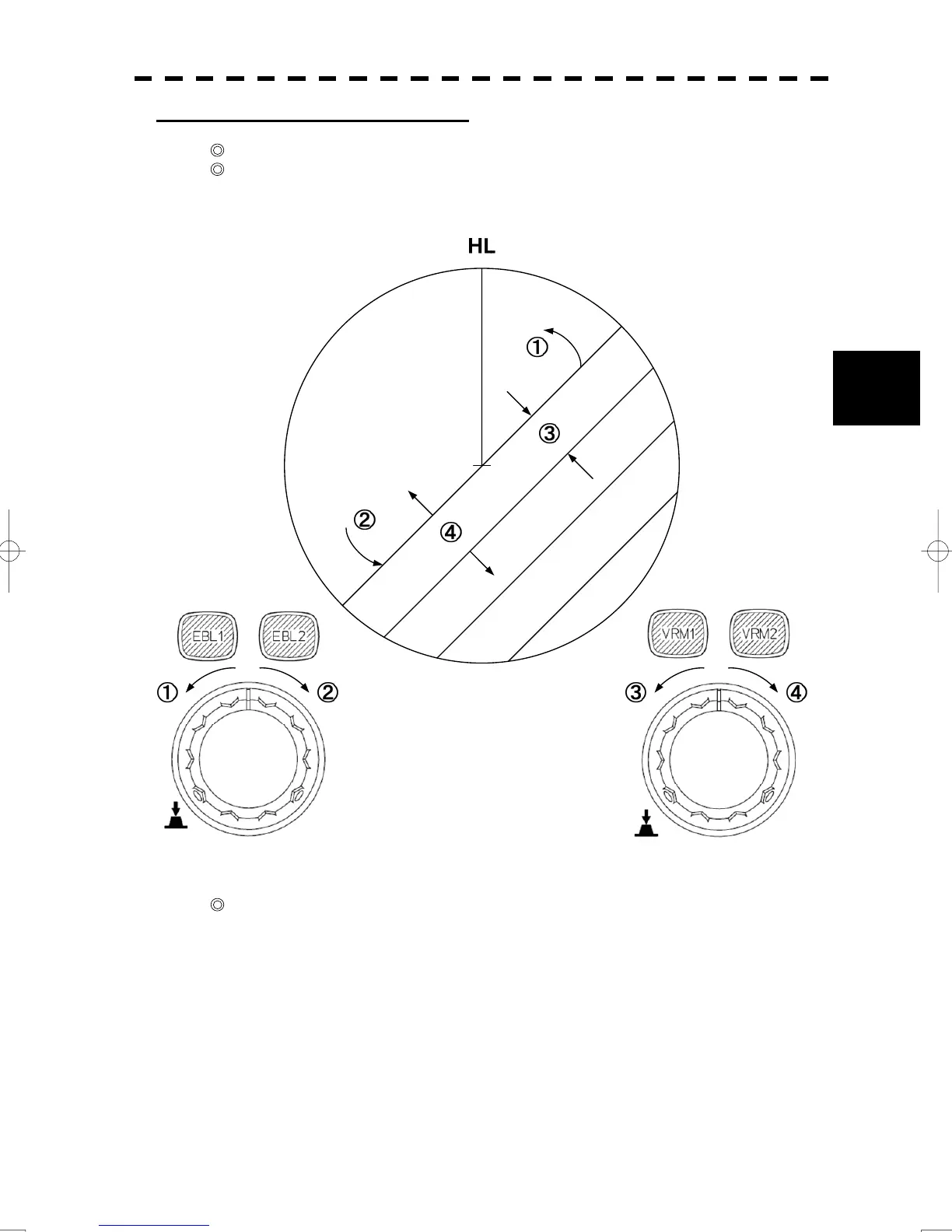

Parallel index lines rotate in the same direction as you turn the [EBL] dial. ( ① , ② )
The intervals of parallel index lines narrow when you turn the [VRM] dial counterclockwise ( ③ ),
and widen when you turn the [VRM] dial clockwise (
④ ).
When the [VRM] dial is pressed, the PI Menu closes and the parallel index lines are fixed.
During the operation of parallel index lines, pressing the [EBL1] or [EBL2] key disables operation for
rotation directions. Pressing the [VRM1] or [VRM2] key disables operation for parallel index line
intervals.
