6-15
[II] Numeric data display
While an AIS-SART symbol is displayed, left-click once the symbol for the activated symbol, and then left-click once
again to change to the numeric display symbol for the AIS-SART numeric data display.

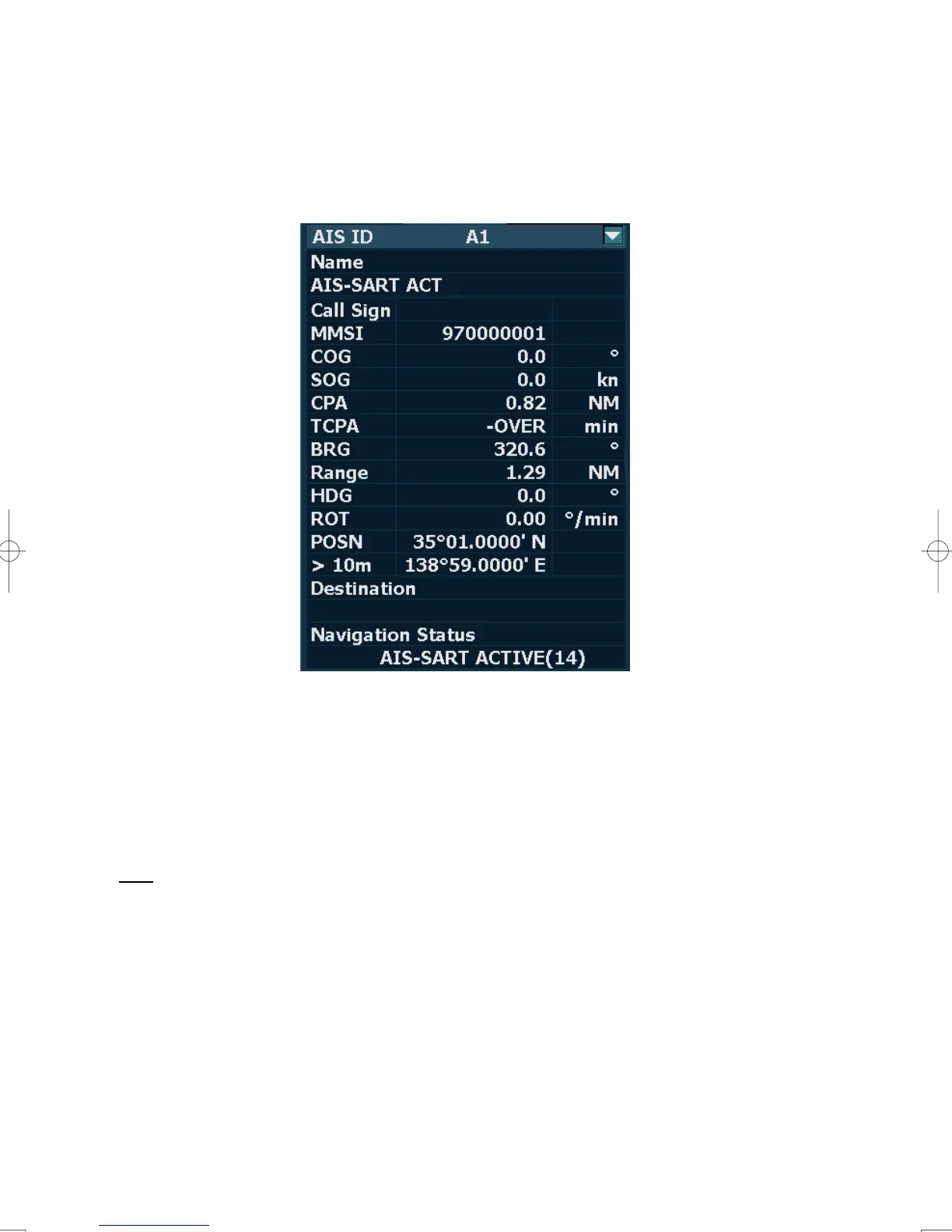

[Example of AIS-SART Numeric Data Display]
The following are Navigation Status by operating condition:
Normal operation : AIS-SART ACTIVE(14)
Trial operation : AIS-SART TEST(15)
If displaying “AIS-SART TEST(15), it indicates that the AIS-SART operation test is performing.
Note:
For indication the AIS-SART symbols, the Display Unit software version number is needed more than
Ve r. 0 1 . 0 1 .
For how to confirm Display Unit software version number, see to the section “8.4.1 Check Performance on
Test Menu”.
