[II] Transmission Monitor Adjustment (MON Indicator Adjustment)
Adjust the circuit for monitoring the transmission performance of the radar equipment.
In Case of Added Inter-switch Function (Option)
For adjusting the performance unit, set the interswitch connection to straight,
i.e. No.1 scanner is connected to No.1 display unit as the Master.
Procedures 1. Open the Serviceman Menu.
2. Perform the following menu open procedure to open the performance
monitor Indicator Adjustment menu.
Adjust Menu
→ TXRX Adjustment
→ Performance Monitor
3. Increase or decrease numerical value by Left-clicking the ▲ / ▼ button
for the MON Indicator Adjustment so that the performance monitor level
indicator will be adjusted to “8”.
4. Attach the INFORMATION LABEL provided with the performance monitor
to an appropriate position on the display unit.
5. Write the performance monitor bar value check date to the
INFORMATION LABEL.
Adjusted to 8

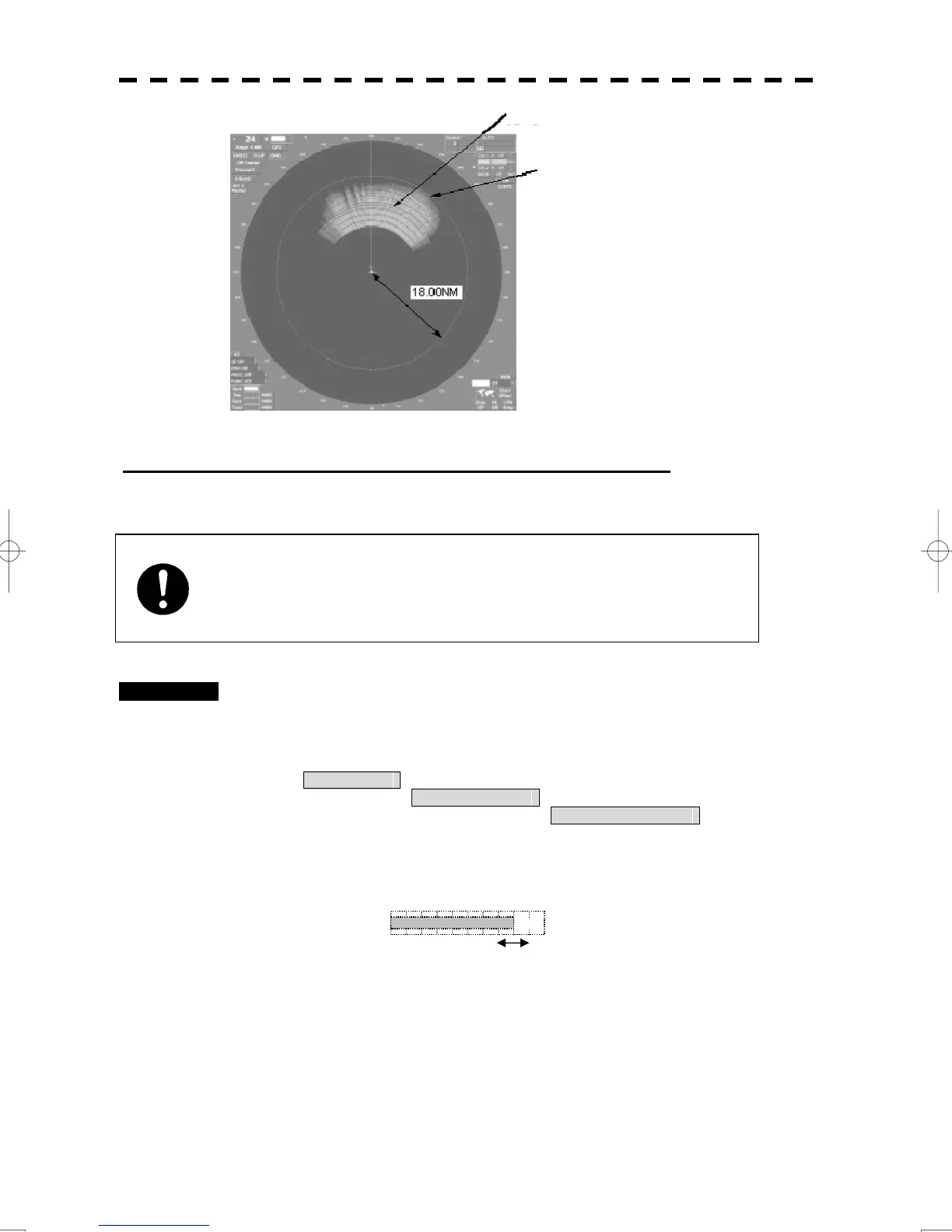

Performance Monitor Pattern
Increase or decrease the numerical value so
that the farthest point of the performance
monitor pattern touches the 18.00 NM line.
To Next Page
