8.5 Replacement of Major Parts
yyyy
yyyy

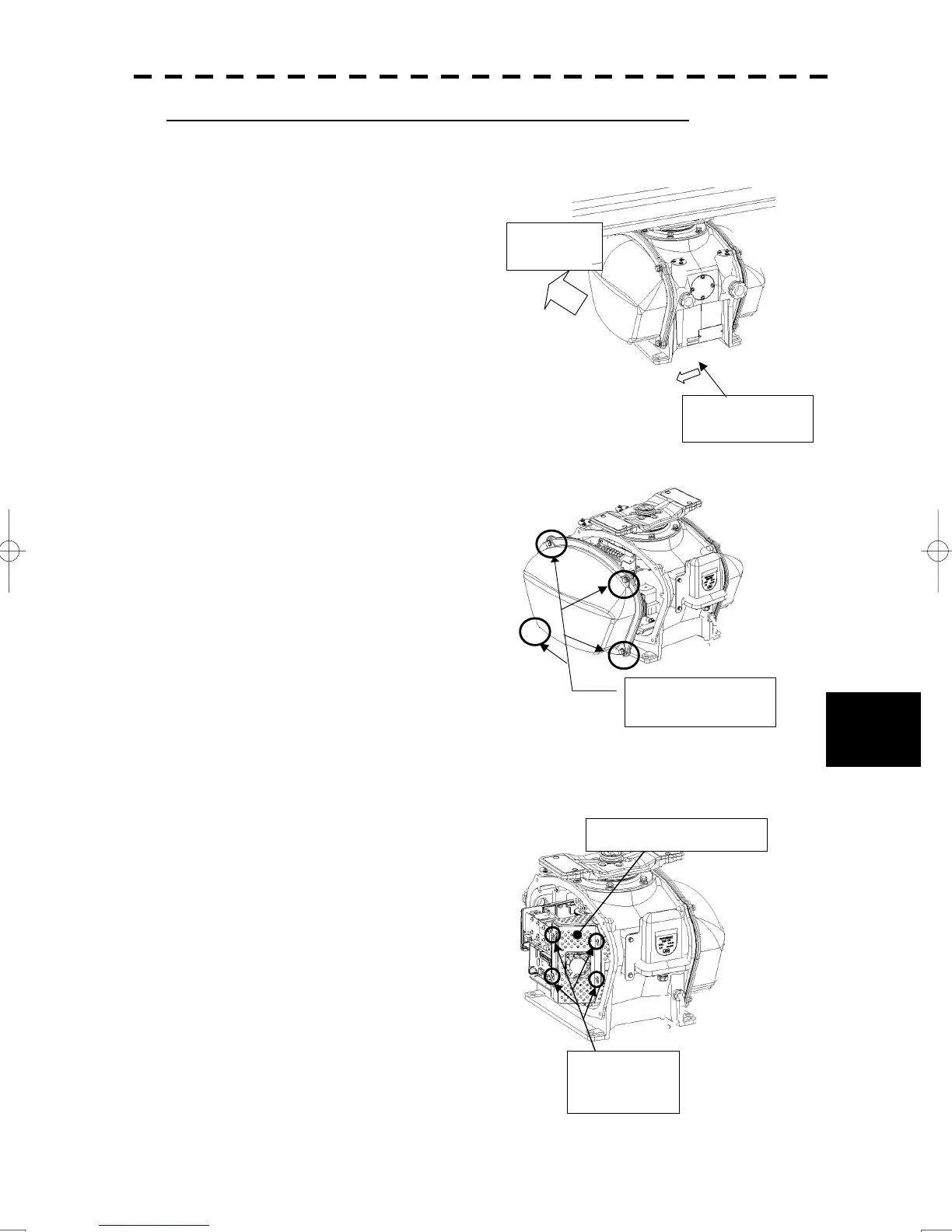

Magnetron Replacement Procedure for Scanner Unit NKE-1125
(1) Before beginning work, turn off the
safety switch located on the bottom of
the stern side of the scanner unit.
(2) Loosen the hexagonal bolts (4) and
remove the pedestal cover.
Remove the cover on the right (starboard) side.
(3) Loosen the screws (four M4 screws) to
remove the magnetron cover.
When the starboard side cover is
removed.
Loosen the four
hexagonal bolts.
Bow direction
Turn off the safety
switch.
Bow
direction
Loosen the
four screws.
Magnetron cove
r
