8.5 Replacement of Major Parts

yyyy

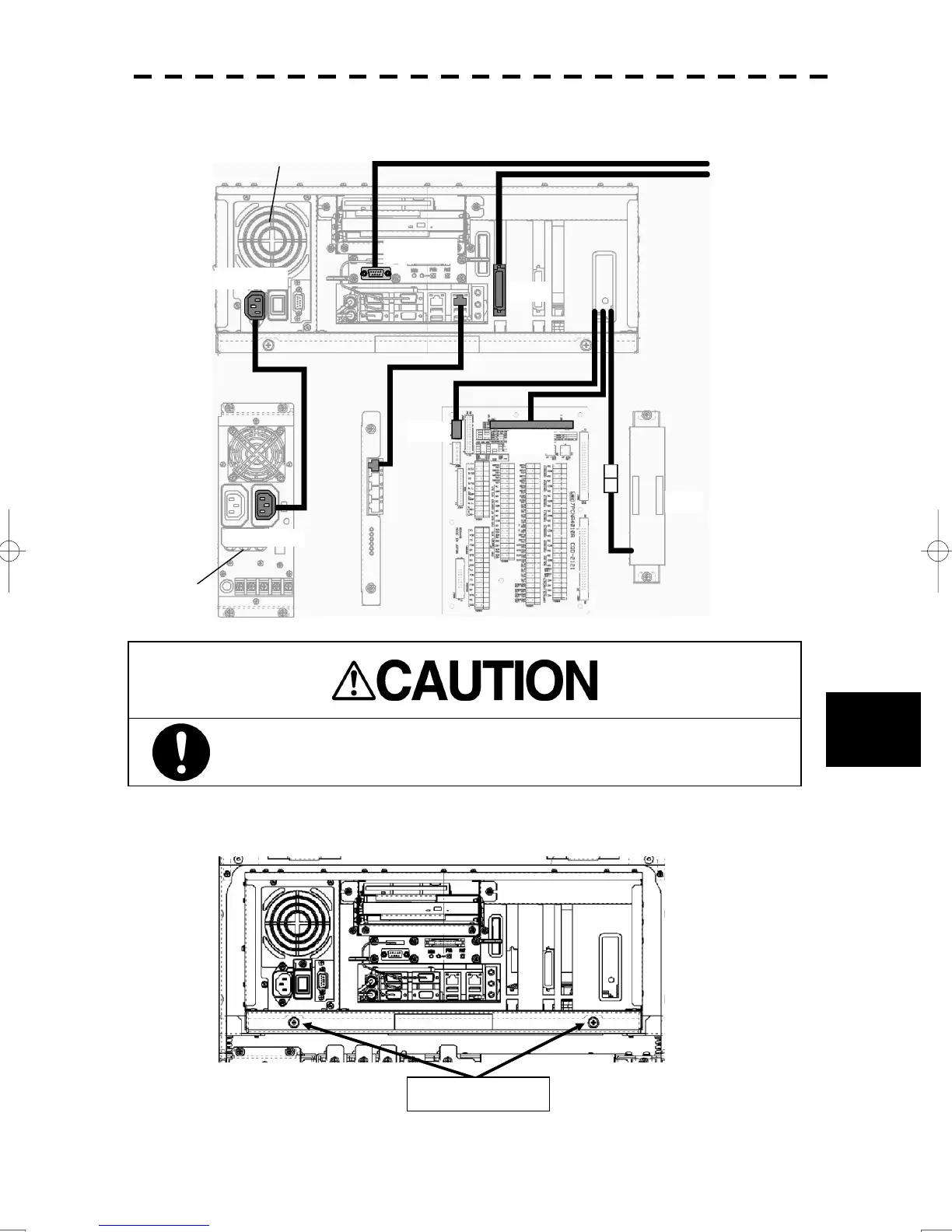

2) Remove following cables connected to NCM-860 control unit.

3) Remove 2 screws in front of NCM-860 control unit.

When you pull out Control Unit from the main unit, always disconnect cables and

connectors that are connected to the main unit after turning off power switch and pulling

down circuit breaker. If it is forcibly pulled out while the cables and connectors are

connected, the cables and connectors may be damaged.

W208

W201

W202

P301

P302

W302

P813

ATX AC

CONTROL

DVI

UPS

W209

Control Unit ATX Power Supply

Main Power

Supply Unit

Remove two screws
