A-11

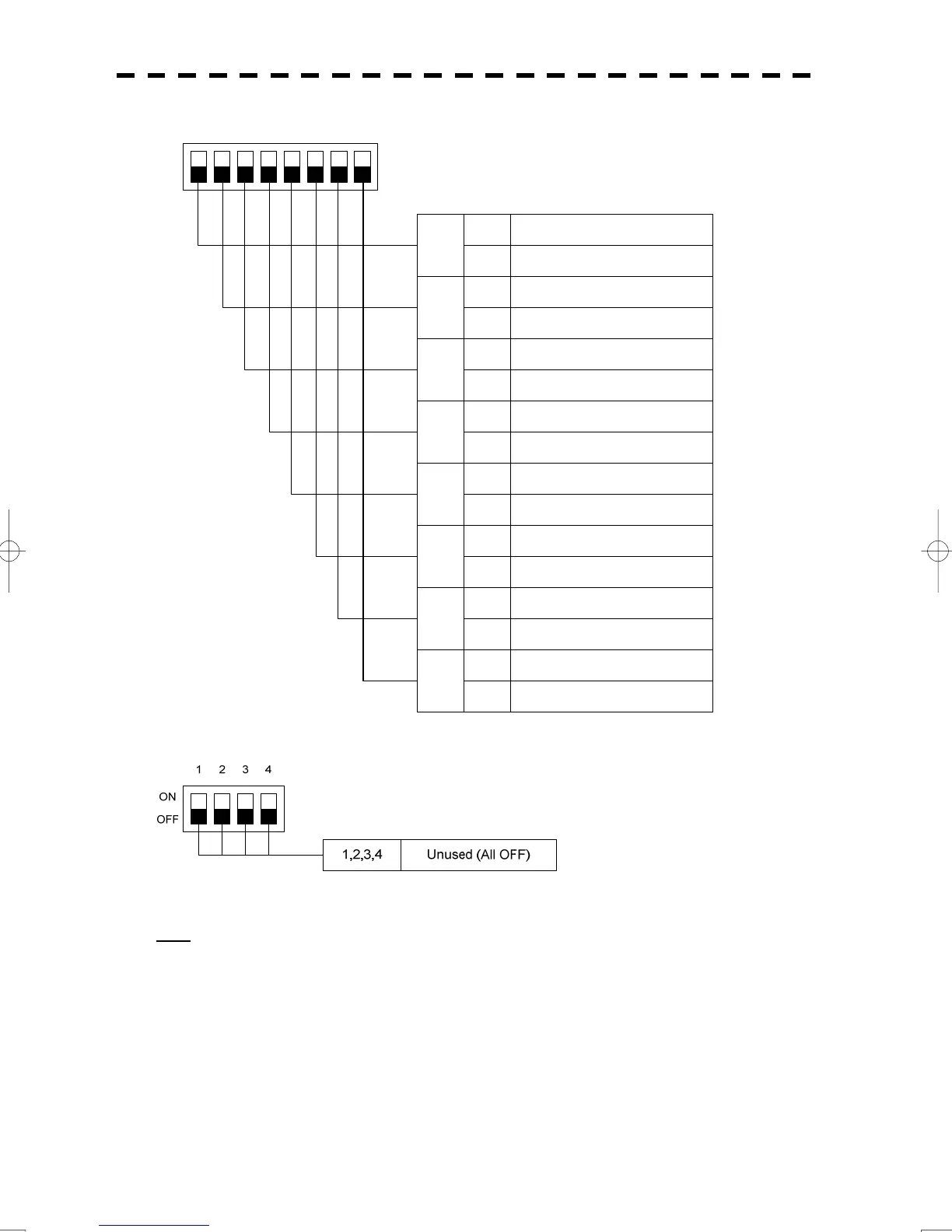

2) SW12 setting (radar connection settings)
1234
ON
OFF
1
Radar connection settings
ON No.1 display unit connected
OFF No.1 display unit not connected
5678
2
ON No.1 scanner unit connected
OFF No.1 scanner unit not connected
3
ON No.2 display unit connected
OFF No.2 display unit not connected
4
ON No.2 scanner unit connected
OFF No.2 scanner unit not connected
5
ON No.3 display unit connected
OFF No.3 display unit not connected
6
ON No.3 scanner unit connected
OFF No.3 scanner unit not connected
7
ON No.4 display unit connected
OFF No.4 display unit not connected
8
ON No.4 scanner unit connected
OFF No.4 scanner unit not connected
3) SW13 (unused)
Note:
Before the DIP switches of the interswitch circuit can be set, the interswitch breaker must be turned off
in order to ensure safety operation.
