B-4

APPENDIX

Interconnection Diagram/System Diagram/Connection Diagram/Gyro Settings

W62 H-7ZCRD1332*

W65 H-7ZCRD1335*

W63 H-7ZCRD1333*

W64 H-7ZCRD1334*

W66 H-7ZCRD1336*

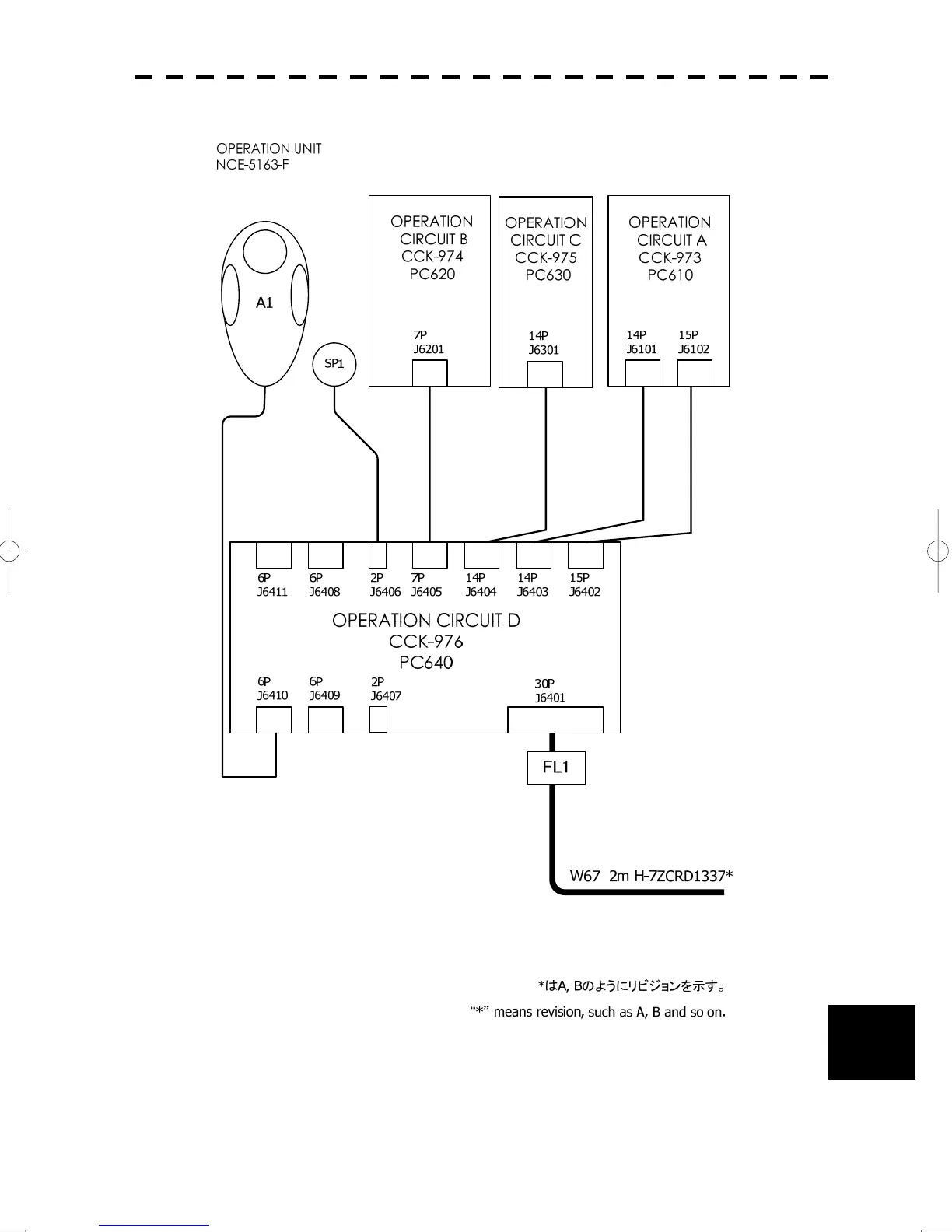

Fig B-104. Interconnection Diagram of NCE-5163-F
