13.4.5 Colors

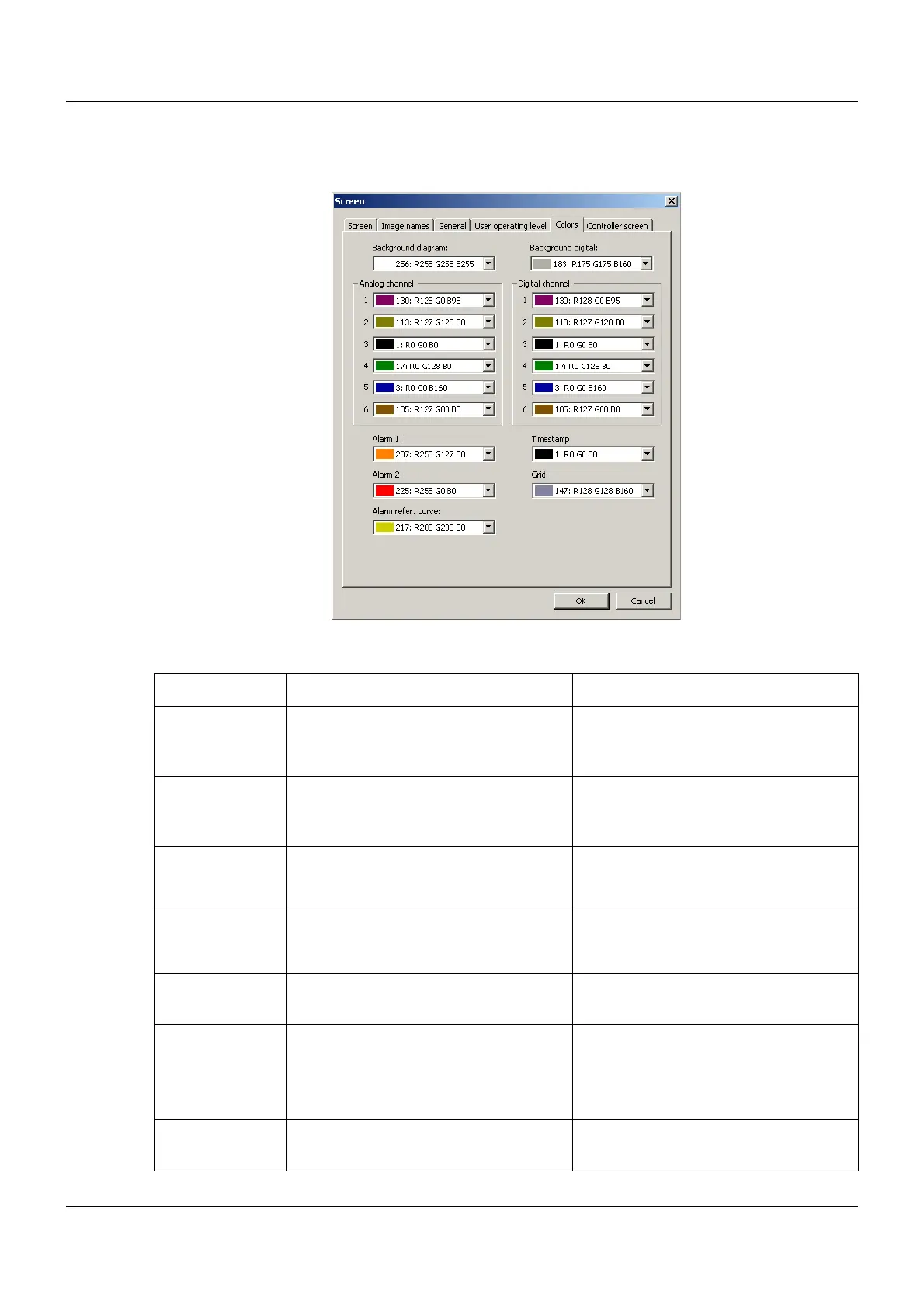

Setup dialog
Parameter
Parameter Selection/settings Description
Background dia-
gram
Color 256 Background color for the Diagram visu-
alization
Chapter 7.2 "Diagram", page 56
Background digi-
tal
Color 183 Background color for the Digital visual-
ization.
Chapter 7.6 "Digital", page 65
Analog channel Color ... Color used to display the corresponding
analog channel (graphically, numerically,
and in text form).
Digital channel Color ... Color used to display the corresponding
digital channel (graphically, numerically,
and in text form).
Alarm 1 Color 237 Color used to mark Alarm 1.
Chapter 7.2 "Diagram", page 56
Timestamp Color 1 Color used to display the time informa-
tion.
Chapter 7.2 "Diagram", page 56
Chapter 7.6 "Digital", page 65
Alarm 2 Color 225 Color used to mark Alarm 2.
Chapter 7.2 "Diagram", page 56
