3 Installation
3.3 Strain relief for interface cable
Procedure:
(A)(B)
(B)

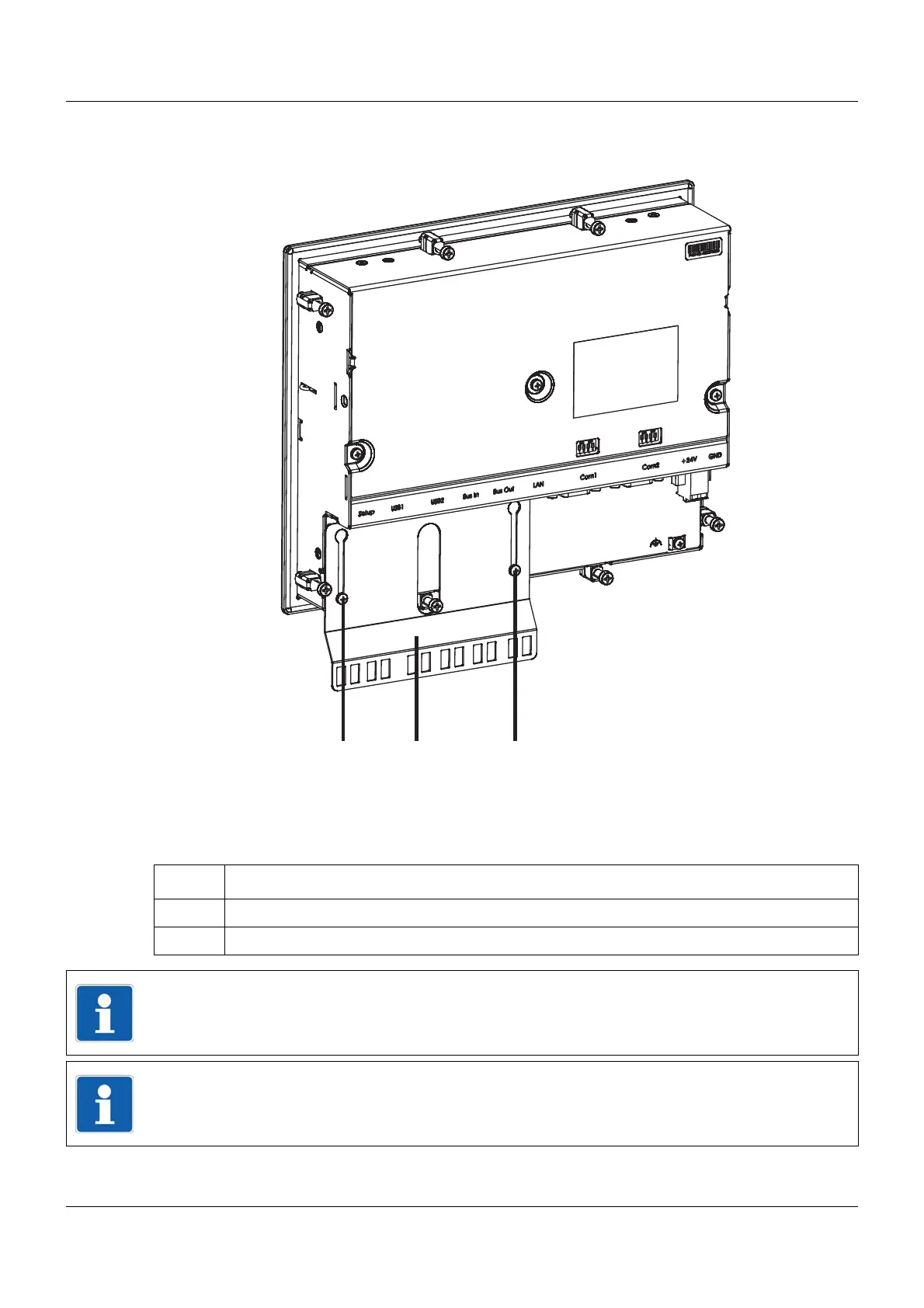

(A) Panel for strain relief (B) Fastening screws
Step Activity
1 Loosen the fastening screws (B) (do not remove).
2 Place the panel for strain relief (A) on the case and retighten the fastening screws (B).
NOTE!
The interface cables can be attached to the panel using cable ties for strain relief.
NOTE!
If the cable shield is connected to the case of the multifunction panel, the exterior sheathing
of the interface cable must be removed at the location of the strain relief.
