JUMO mTRON T - 1 NV Connecting List: Analog

To Next Page

To Previous Page

13 Configuration

194

13.18.1 NV connecting list: Analog

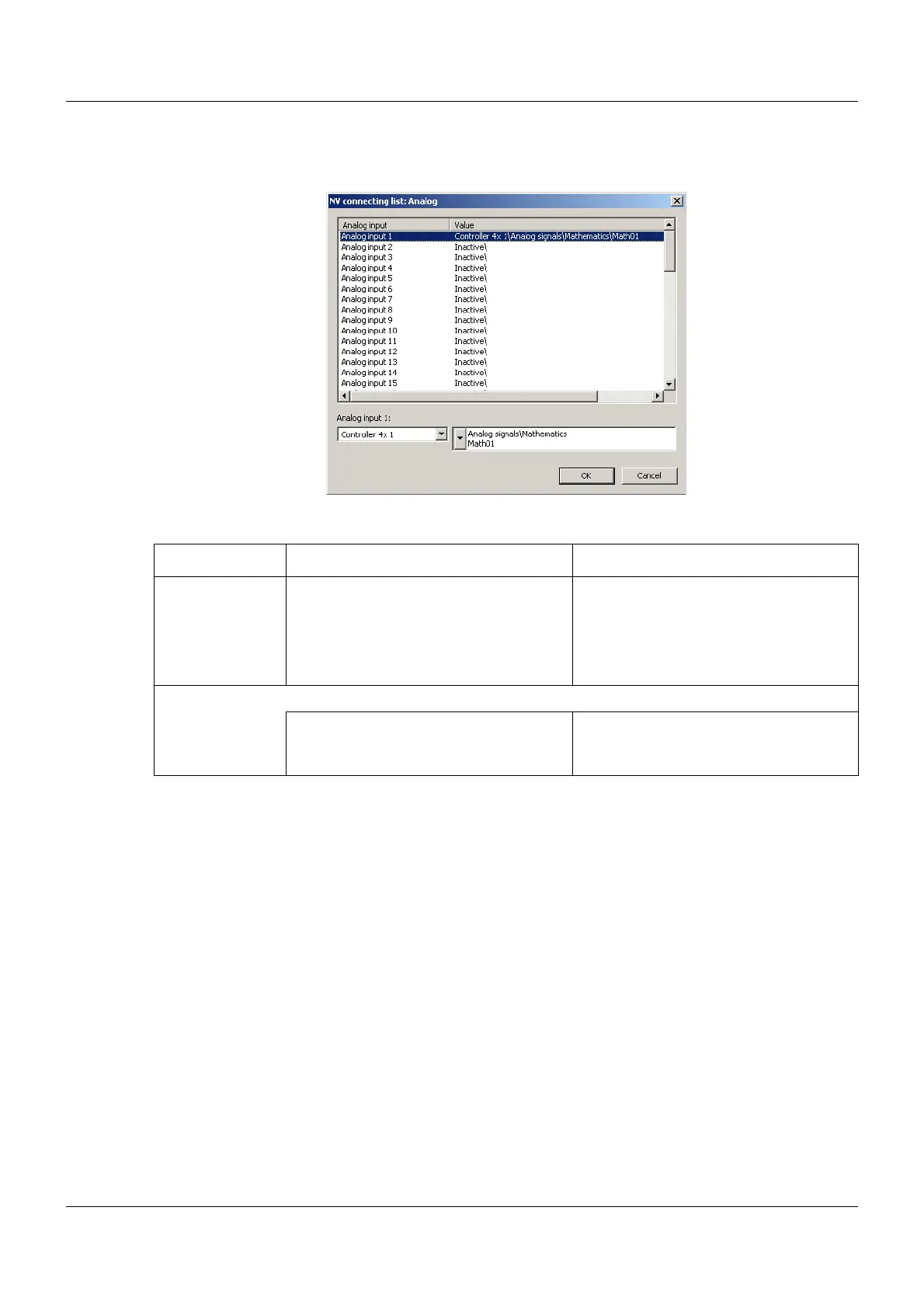

Setup dialog

Parameter

Parameter Selection/settings Description

Analog input/

Value

Select input to be connected. List of analog inputs of the multifunction

panel

If a connection has already been config-

ured, the module and its signal are dis-

played in the "Value" column.

Analog input 1

(Example)

This is the previously selected analog input.

Select the module and – in the selector

to the right – the signal that is to be con-

nected to the analog input.

List of modules in the system and the

relevant signals
