JUMO mTRON T - Digital

65
7 Visualization
 Setup program:
HMI > C
ONFIGURATION LEVEL > SCREEN > USER OPERATING LEVEL
7.6 Digital
In this visualization, only the digital channels are displayed; the analog channels are not shown.
Horizontal presentation
As of system version 03, the digital channels can also be displayed horizontally. The header
rows of the vertical presentation (channel name, switch symbol) are then shown on the right of
the digital traces.
Sampling rate and operating mode
 Chapter 5.1.1 "Status line and Title line", page 44
Communication status
 Chapter 5.1.1 "Status line and Title line", page 44

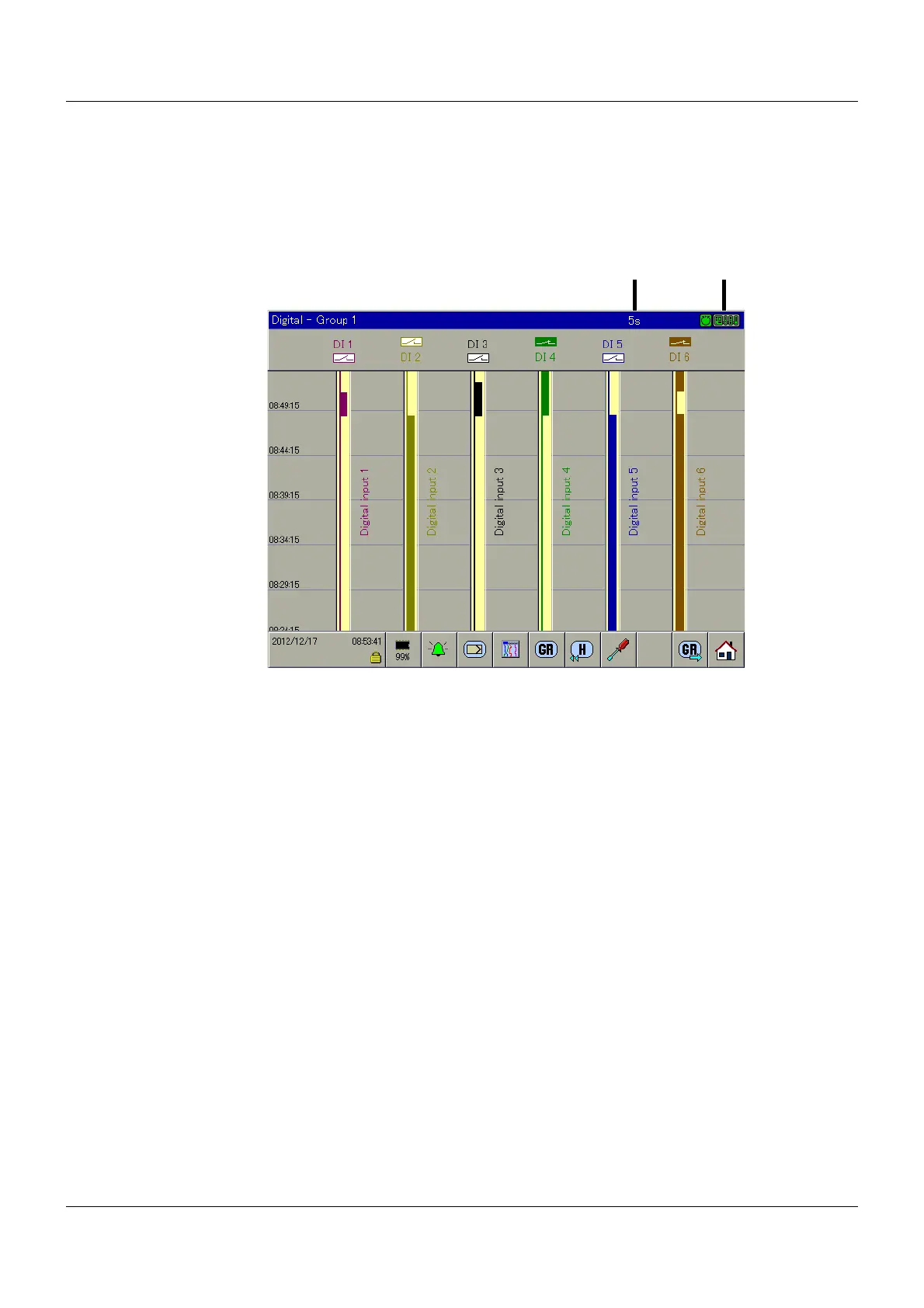

(1)
(3) (4) (5) (6) (7)
(2)
(1) Operating mode (2) Communication status
(3) Group selection (4) Memory display
(5) Numerical measured value display (6) Group rotation
(7) Home button
