7 Visualization
Alarm
An alarm (Alarm1 or Alarm2) is marked with an orange or red background. The colors can be
configured in the setup program and using the multifunction panel.
Group rotation
The function switches to the next counters/integrators.
Home button
This function calls up a defined visualization. The function must be activated and configured
via the setup program.
Setup program:
HMI > C
ONFIGURATION LEVEL > SCREEN > USER OPERATING LEVEL

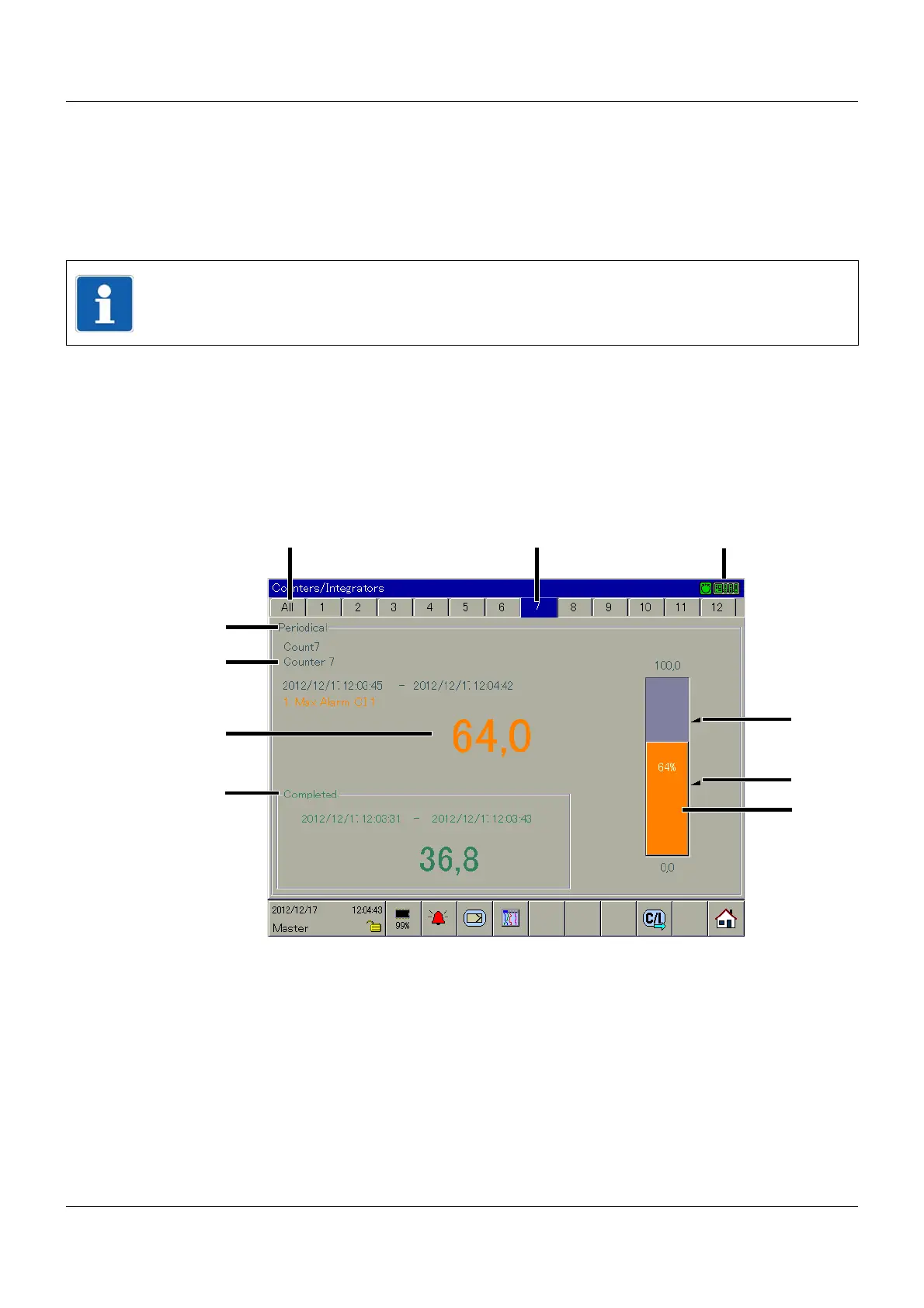

7.10.2 Individual display
NOTE!
This function is only available if sufficient counters/integrators have been configured.
(2)
(4)
(11) (12)
(3)
(1)
(6)
(10)
(5)
(8)
(9)
(7)
(1) Group display (2) Individual display
(3) Communication status (4) Type of capture period
(5) Channel name and channel description (6) Counter/integrator status
(7) Limit value 1 (8) Limit value 2
(9) Alarm (10) Data of the last recorded period
(11) Group rotation (12) Home button
