13.5 Analog inputs
The multifunction panel can manage and record 54 analog inputs. The analog inputs relate to
inputs and/or signals that reach the multifunction panel via the system bus.
For example, the analog inputs are pooled into groups together with other analog signals via
the "Groups" configuration and are available for further use via these groups.

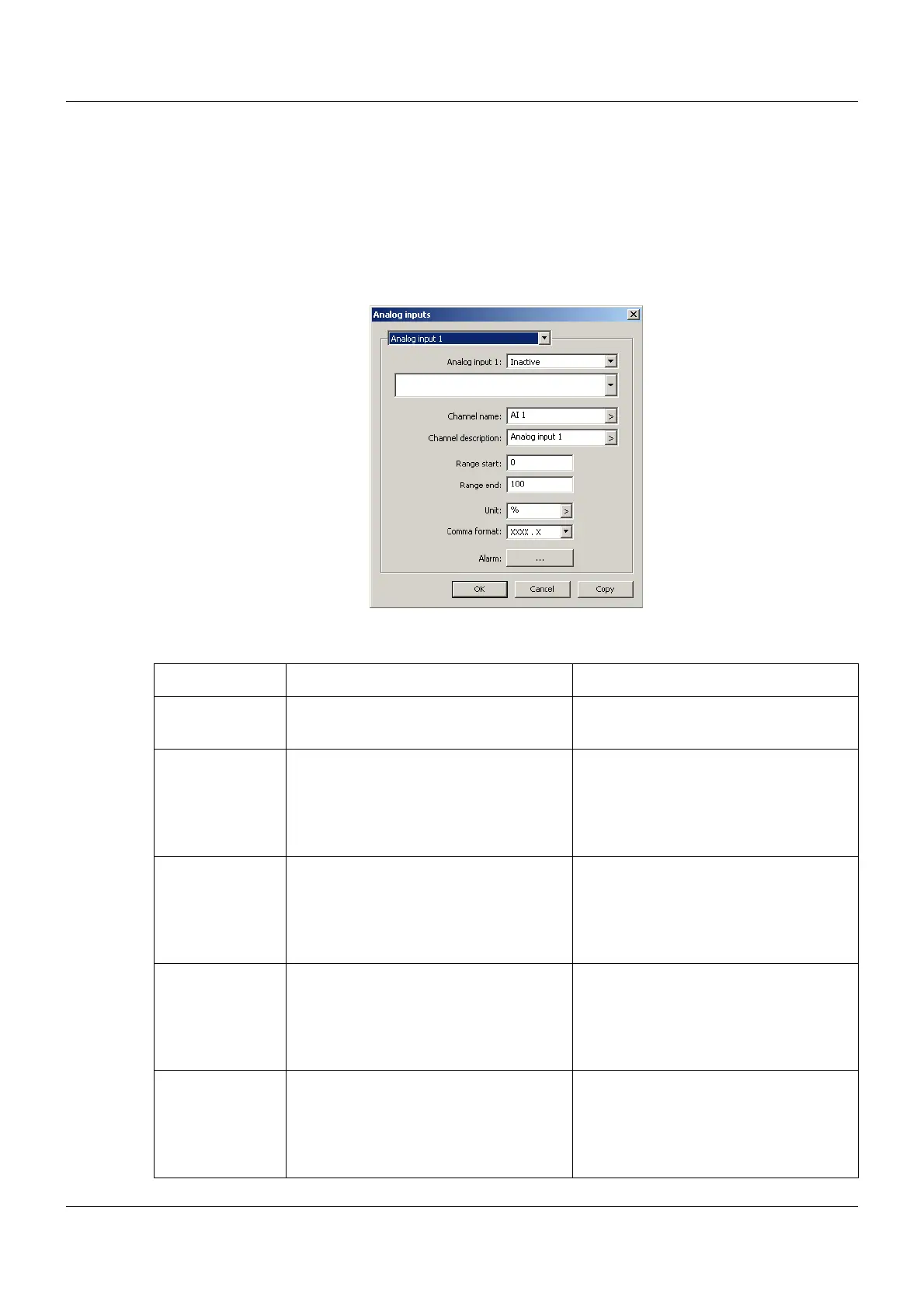

Setup dialog
Parameter
Parameter Selection/settings Description
Analog input x Inactive No signal allocated.
Analog selector Signal that is to be allocated to the input.
Channel name AI x Name with a maximum length of seven
characters that is used in the visualiza-
tions together with the channel descrip-
tion.
 Chapter 7.4 "Text image", page 60
Channel descrip-
tion
Analog input x Description with a maximum length of
21 characters that is used in the visual-
izations together with the channel
names.
 Chapter 7.4 "Text image", page 60
Range start 0 Limitation of the measuring range
If measured values appear that are
below the configured range, the multi-
function panel issues the indication
"<<<<<".
Range end 100 Limitation of the measuring range
If measured values appear that are
above the configured range, the multi-
function panel issues the indication
">>>>>".
?
