5 Operation
44

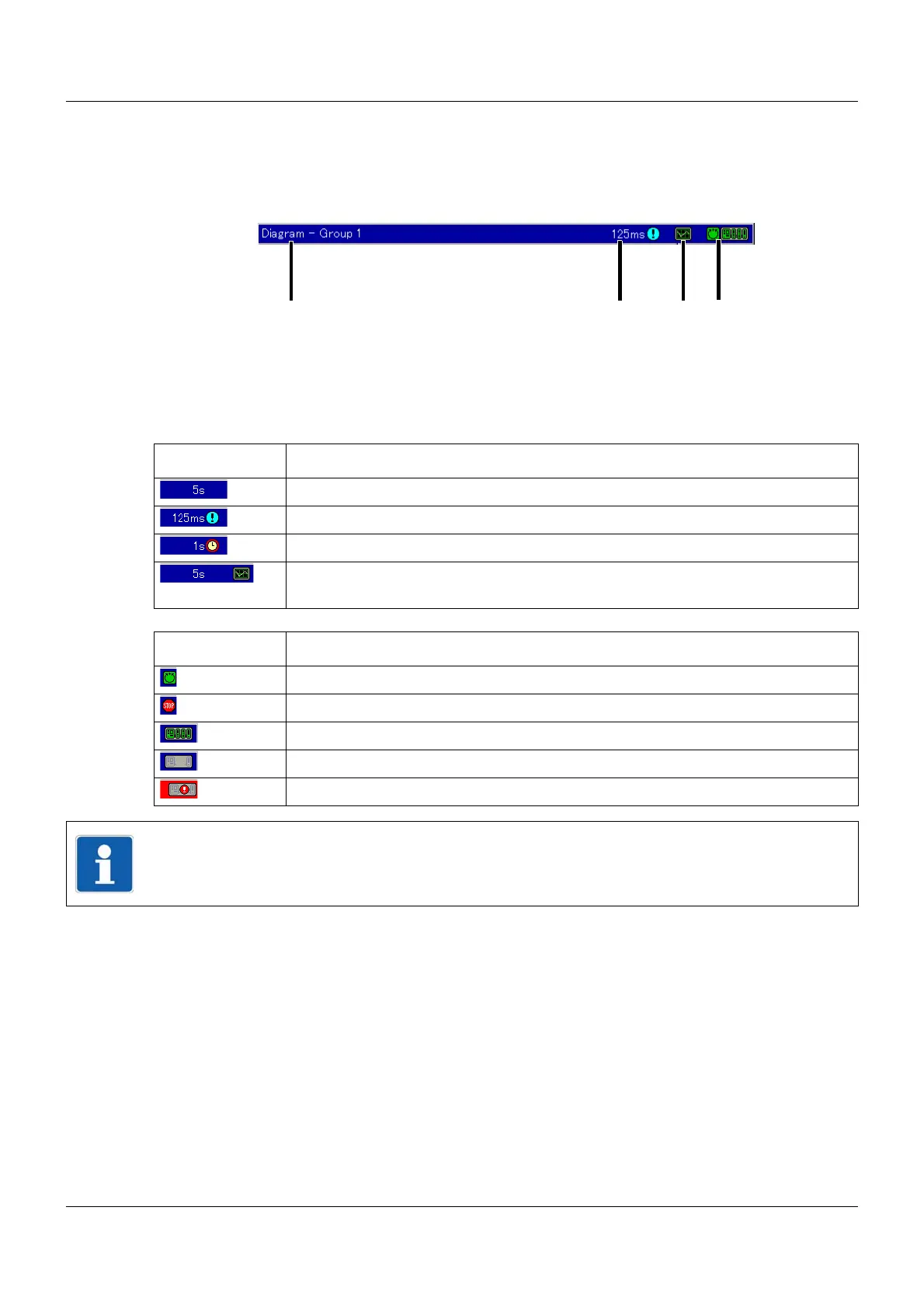

5.1.1 Status line and Title line
This line displays alarm and error messages as well as general information on the active dis-
play (e.g. sampling rate). It is automatically hidden by the system if required.
(1) (2) (3)
(2)
(1) Area for text and error messages; if the text
is displayed with a red background, it
relates to an alarm (error message)
(2) Area for symbols relating to the panel
(3) Area for symbols relating to communication
with other modules
Symbol (2) Meaning
Sampling rate (5 s) and operating mode (standard operation)
Sampling rate (125 ms) and operating mode (event operation)
Sampling rate (1 s) and operating mode (time operation)
Data read-out is currently being performed by the PCA communication software
PCC.
Symbol (3) Meaning
Base unit is in RUN status
Base unit is in STOP status
Communication with base unit not interrupted
Communication with base unit interrupted
Communication with base unit interrupted
NOTE!
If the text is displayed with a read background, it relates to an error message.
