213
14 Configuration – in setup program only
14.5 Modbus frames for writing
This function is used to compile up to eight Modbus frames for writing process values to exter-
nal devices (via interface) individually for each opposite side. The process values (analog, in-
teger, and digital signals, and text) are written to the frames by the system and are available to
external devices.
Each frame can be used to configure up to 64 entries (process values), which are then grouped
and transferred in a Modbus telegram.

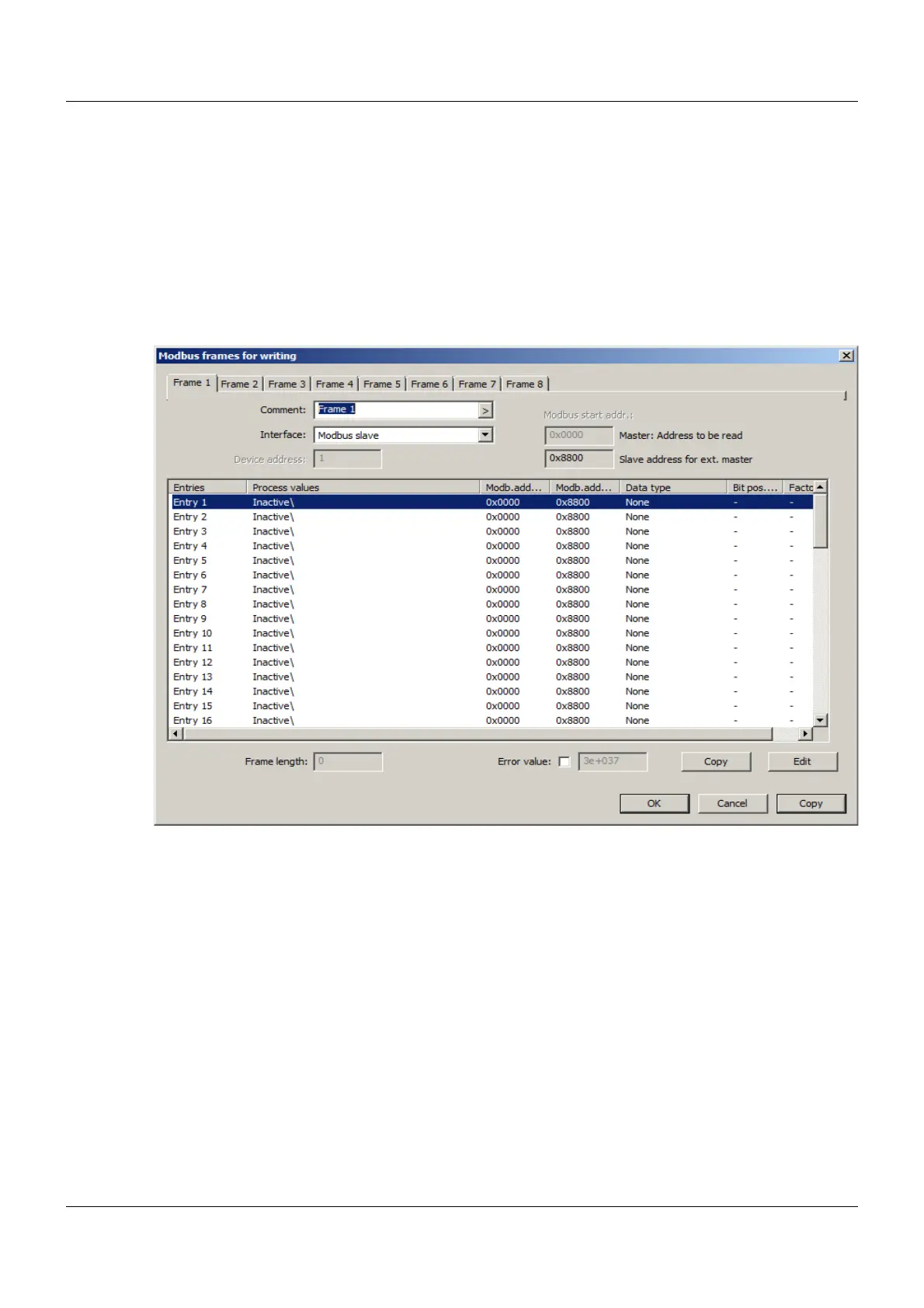

Setup dialog
Configuration and use of the Modbus frames for writing is described in the Modbus interface
description B 705060.2.0.
