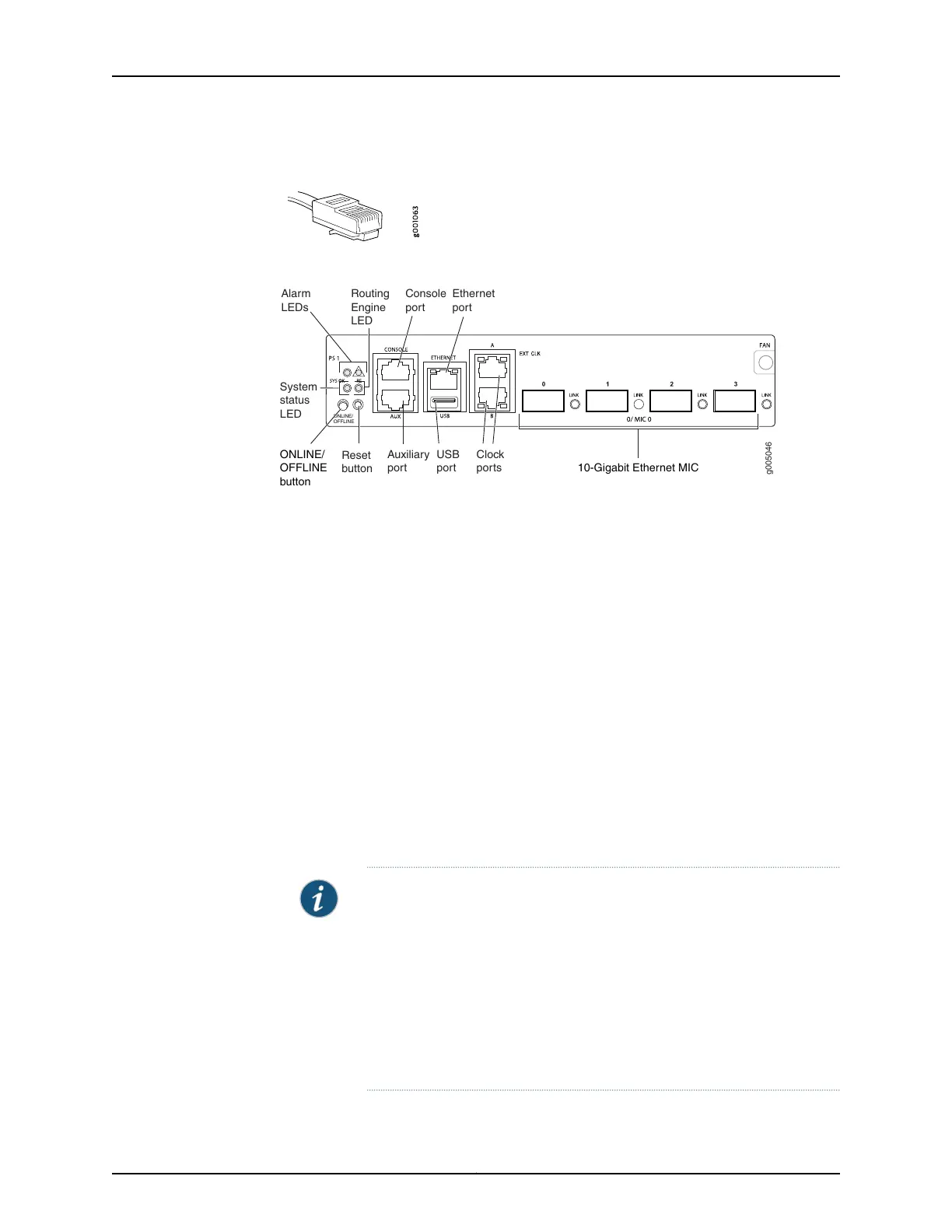

Figure 37: Routing Engine Ethernet Cable Connector
Figure 38: Ethernet Port
g005046
ONLINE/
OFFLINE
Auxiliary
port
USB
port 10-Gigabit Ethernet MIC
Console
port
Ethernet
port
Clock
ports
Routing
Engine
LED
Alarm
LEDs
System
status
LED
Reset
button
ONLINE/
OFFLINE
button
Connecting the Router to a Management Console or Auxiliary Device
To use a system console to configure and manage the Routing Engine, connect it to the
appropriate CONSOLE port on the front panel. To use a laptop, modem, or other auxiliary
device, connect it to the AUX port on the front panel. Both ports accept a cable with an
RJ-45 connector. One serial cable with an RJ-45 connector and a DB-9 connector is
provided with the router. To connect a device to the CONSOLE port and another device
to the AUX port, you must supply an additional cable.
To connect a management console or auxiliary device:
1. Turn off the power to the console or auxiliary device.
2. Plug the RJ-45 end of the serial cable (Figure 39 on page 99 shows the connector)
into the AUX port or CONSOLE port on the front panel. Figure 40 on page 99 shows
the ports.
3. Plug the female DB-9 end into the device's serial port.
NOTE:
For console devices, configure the serial port to the following values:
•
Baud rate—9600
•
Parity—N
•
Data bits—8
•
Stop bits—1
•
Flow control—none
Copyright © 2017, Juniper Networks, Inc.98
MX5, MX10, MX40, and MX80 3D Universal Edge Router Hardware Guide
