4. Press the tab on the rear of the fan tray to allow the air filter to slide into place.
5. Release the tab to secure the air filter.

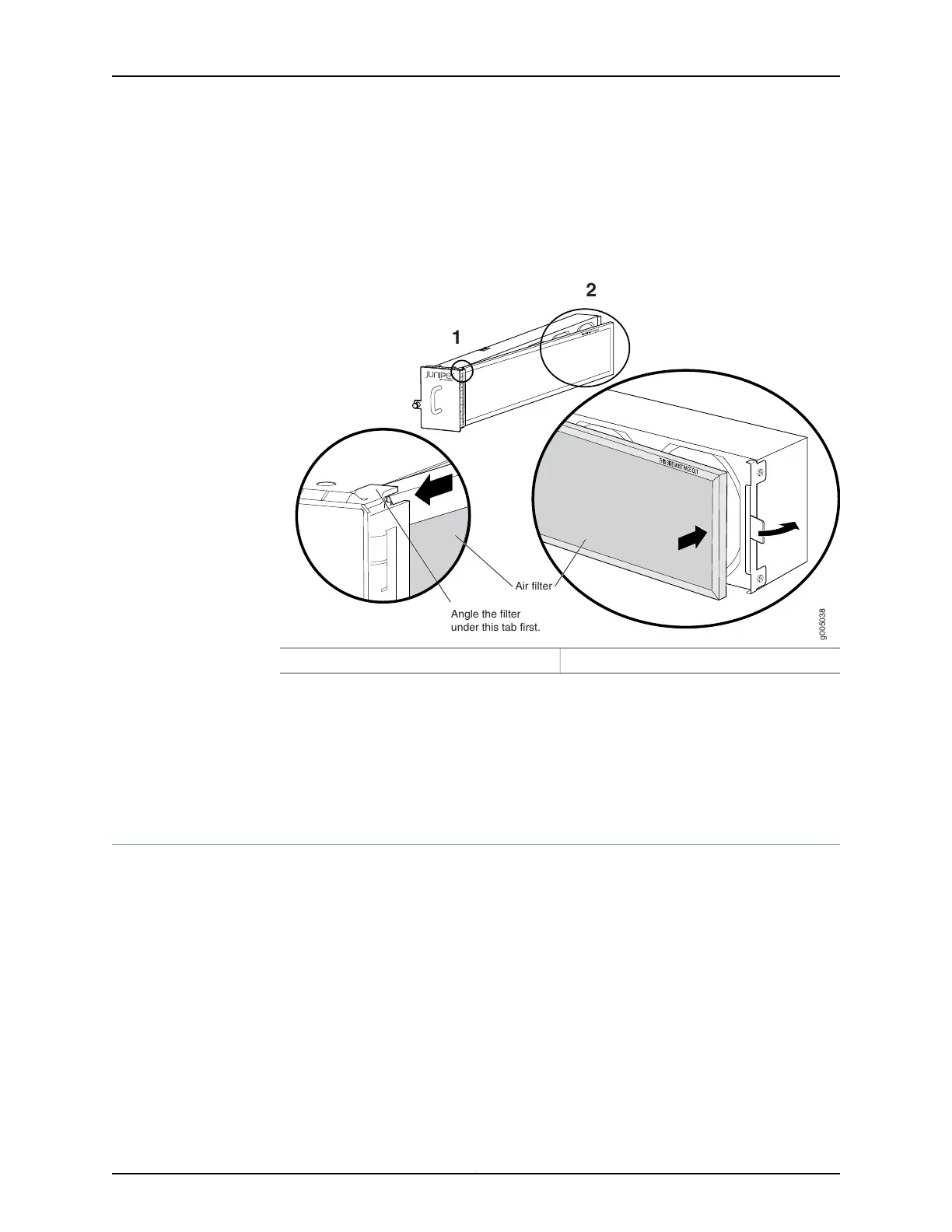

Figure 44: Installing the Air Filter
1
2
g005038
Air filter
Angle the filter
under this tab first.
2—1— Securing the air filter in the fan trayInserting the air filter into the fan tray
Related
Documentation
MX5, MX10, MX40, and MX80 Cooling System Description on page 19•
• Maintaining the MX5, MX10, MX40, and MX80 Air Filter on page 158
• Preventing ElectrostaticDischarge Damage to an MX5, MX10, MX40, and MX80 Router
on page 194
Installing an MX5, MX10, MX40, and MX80 Fan Tray
To install the fan tray (see Figure 45 on page 111):
1. Attach an ESD grounding strap to your bare wrist and connect the strap to one of the
ESD points on the chassis.
2. Grasp the fan tray handle, and insert it straight into the chassis.
3. Tighten the captive screw on the fan tray faceplate to secure it in the chassis.
Copyright © 2017, Juniper Networks, Inc.110
MX5, MX10, MX40, and MX80 3D Universal Edge Router Hardware Guide
