Routing Engine shuts down the system by disabling output power from each power
supply.

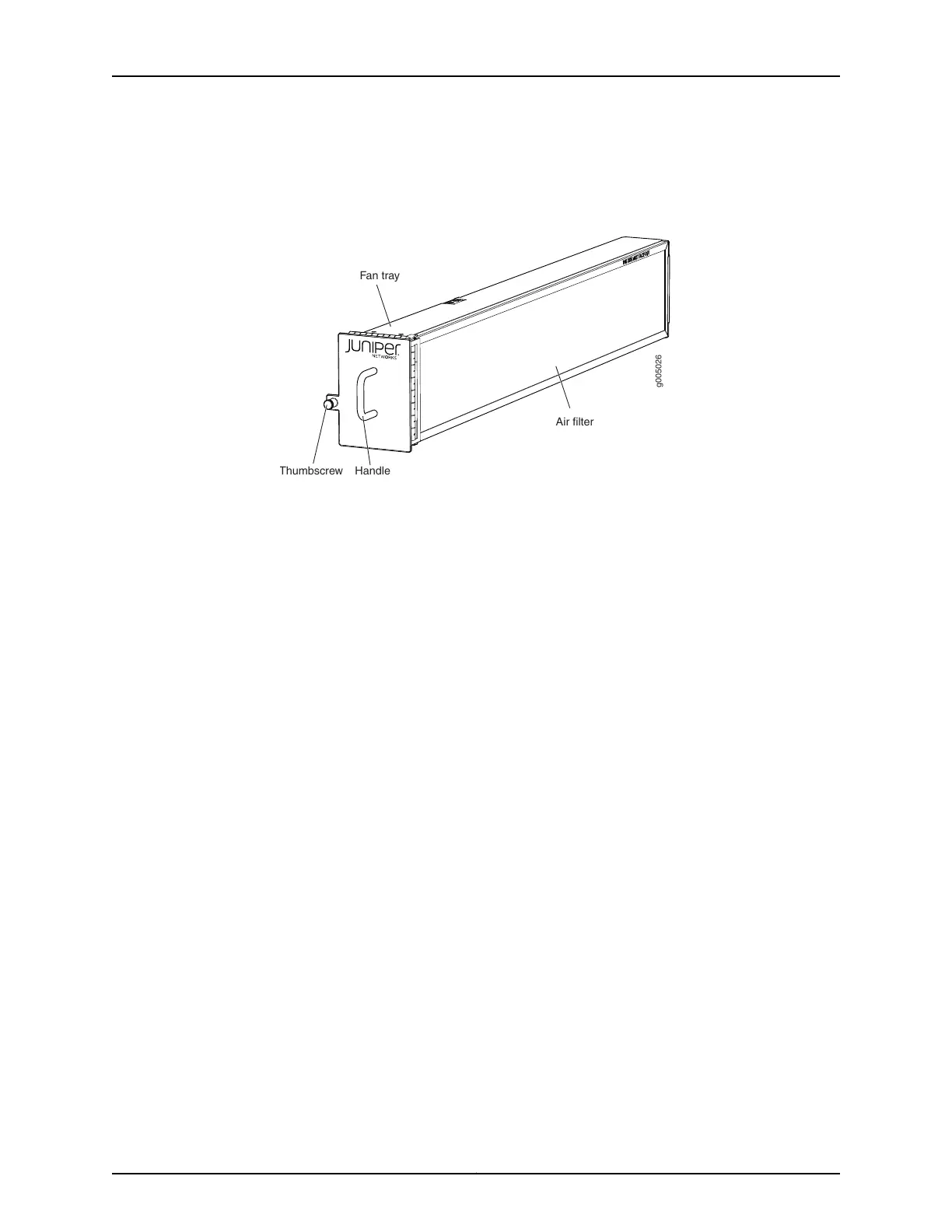

Figure 16: Fan Tray and Air Filter
g005026
Air filter
HandleThumbscrew
Fan tray
Related
Documentation
• Maintaining the MX5, MX10, MX40, and MX80 Air Filter on page 158
• Maintaining the MX5, MX10, MX40, and MX80 Fan Tray on page 158
• Troubleshooting the MX5, MX10, MX40, and MX80 Fan Tray on page 169
• Replacing an MX5, MX10, MX40, and MX80 Fan Tray on page 111
