Installing an MX5, MX10, MX40, and MX80 AC Power Supply
To install an AC power supply (see Figure 59 on page 136):
1. Attach an ESD grounding strap to your bare wrist and connect the strap to one of the
ESD points on the chassis.
2. Move the ACinput switch next to the appliance inlet on the power supply to the off (O)
position.
3. Using both hands, slide the power supply straight into the chassis until the power
supply is fully seated in the chassis slot. The power supply faceplate should be flush
with any adjacent power supply faceplate or blank installed in the power supply slot.
4. Attach the power cord to the power supply.
5. Attach the power cord to the AC power source, and switch on the dedicated customer
site circuit breaker. Follow the instructions for your site.
6. Move the AC input switch next to the appliance inlet on the power supply to the on (
| ) position and observe the status LED on the power supply faceplate. If the power
supply is correctly installed and functioning normally, the status LED lights green
steadily.

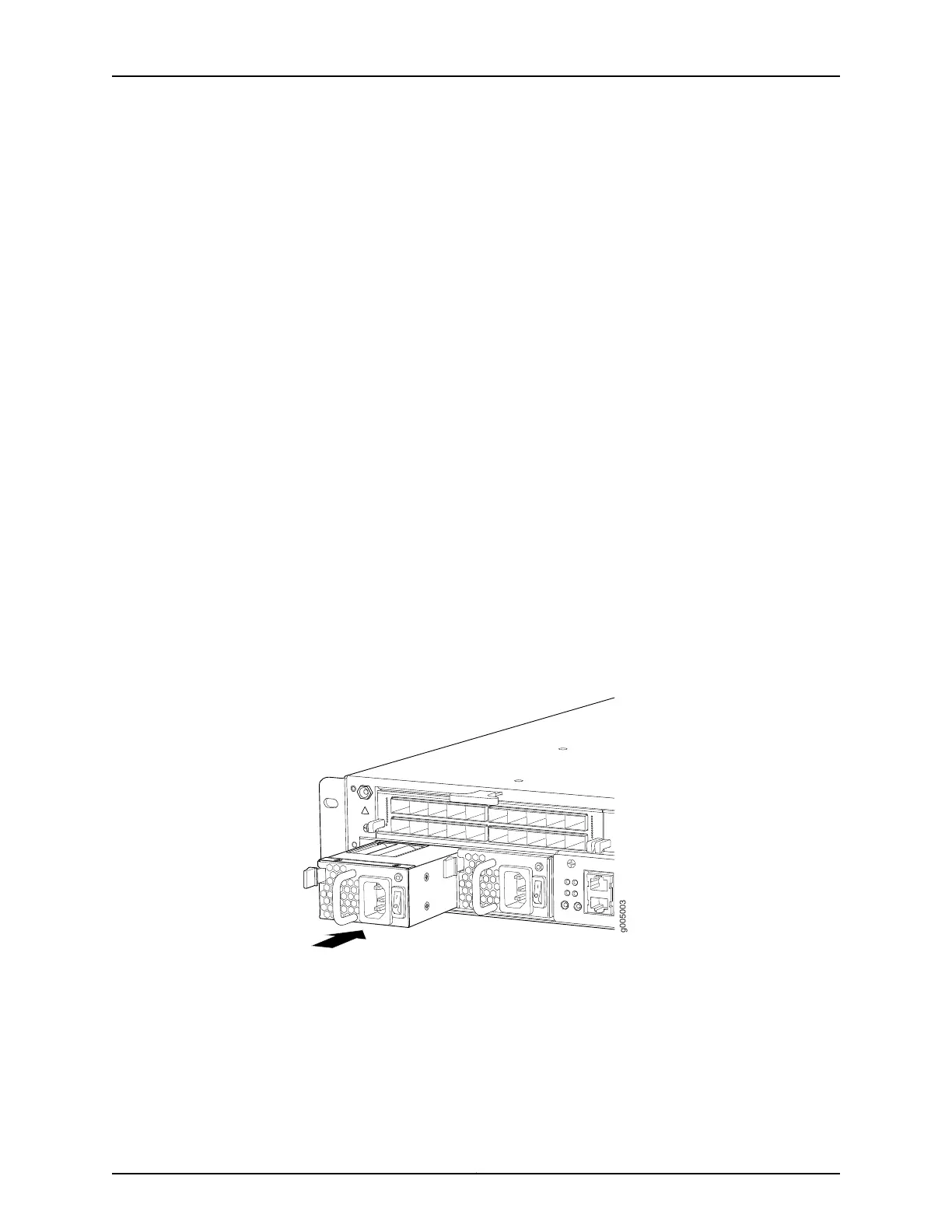

Figure 61: Installing an AC Power Supply
Related
Documentation
MX5, MX10, MX40, and MX80 Power System Description on page 35•
• MX5, MX10, MX40, and MX80 Routers AC Power Specifications on page 53
• AC Power Circuit Breaker Requirements for the MX5, MX10, MX40, and MX80 Router
on page 56
• AC Power Cord Specifications for MX5, MX10, MX40, and MX80 Routers on page 56
