Juniper MX10 - Figure 77: ESD Points on the MX5, MX10, MX40, and MX80 Chassis; Figure 78: Placing a Component into an Electrostatic Bag

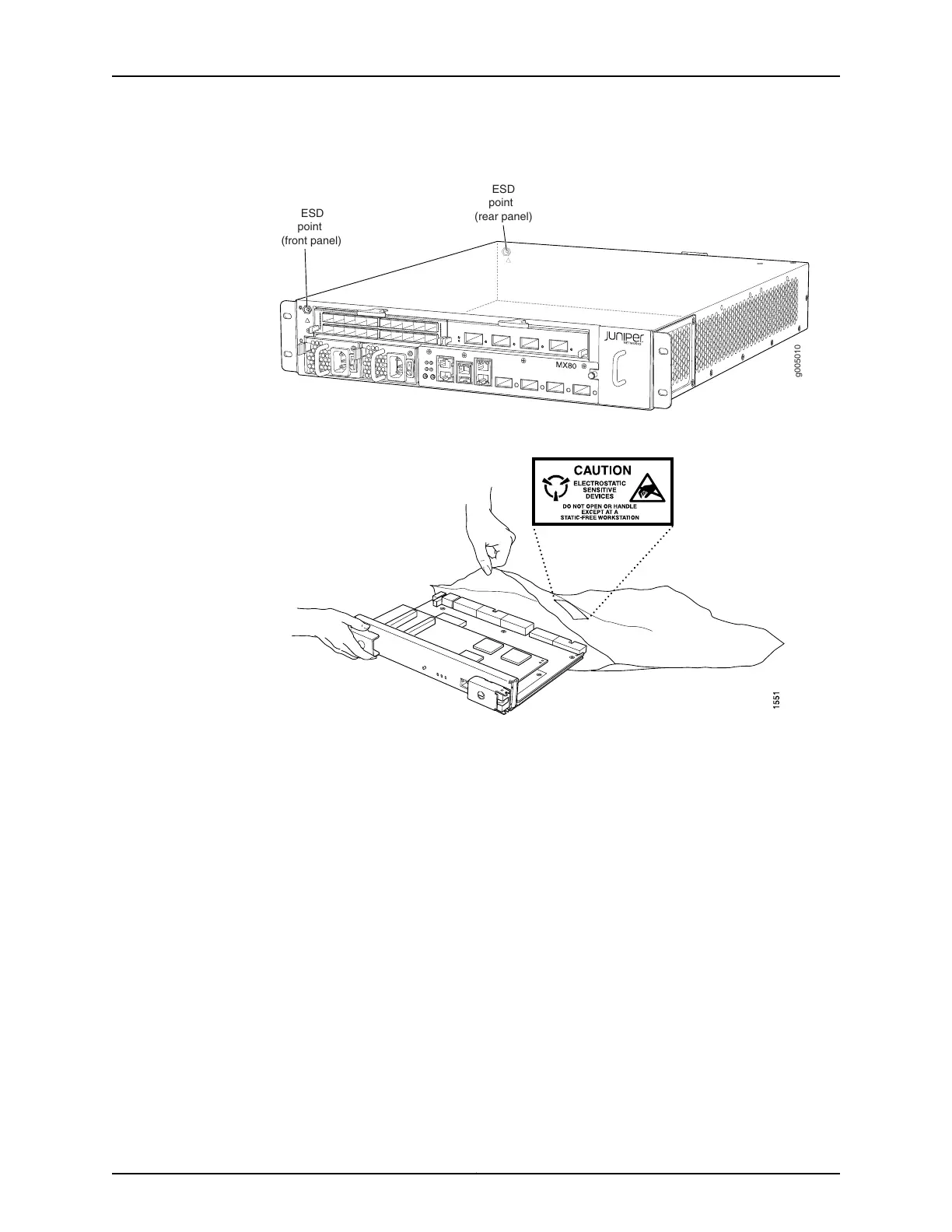

Figure 77: ESD Points on the MX5, MX10, MX40, and MX80 Chassis
g005010
ESD
point
(front panel)
ESD
point
(rear panel)
Figure 78: Placing a Component into an Electrostatic Bag
195Copyright © 2017, Juniper Networks, Inc.
Chapter 26: General Safety Guidelines and Warnings
