CHAPTER 2
Chassis Components and Descriptions
•
MX5, MX10, MX40, and MX80 Chassis Description on page 9
•
MX5, MX10, MX40, and MX80 Baseboard Description on page 11
•
MX5, MX10, MX40, and MX80 Cable Management Bracket Description on page 12
•
MX5, MX10, MX40, and MX80 Front Panel Description on page 13
•
Alarm LEDs on the MX5, MX10, MX40, and MX80 Front Panel on page 15
•
Component LEDs on the MX5, MX10, MX40, and MX80 Front Panel on page 15
MX5, MX10, MX40, and MX80 Chassis Description
The router chassis is a rigid sheet metal structure that houses all the other router
components (see Figure 5 on page 9, Figure 6 on page 10, Figure 7 on page 10,
Figure 8 on page 10, Figure 9 on page 11, and Figure 10 on page 11). The chassis measures
3.5 in. (8.9 cm) high, 17.5 in. (44.5 cm) wide, and 23.46 in. (59.6 cm) deep. The chassis
installs in standard 600-mm deep (or larger) enclosed cabinets, 19-in. equipment racks,
or telco open-frame racks.

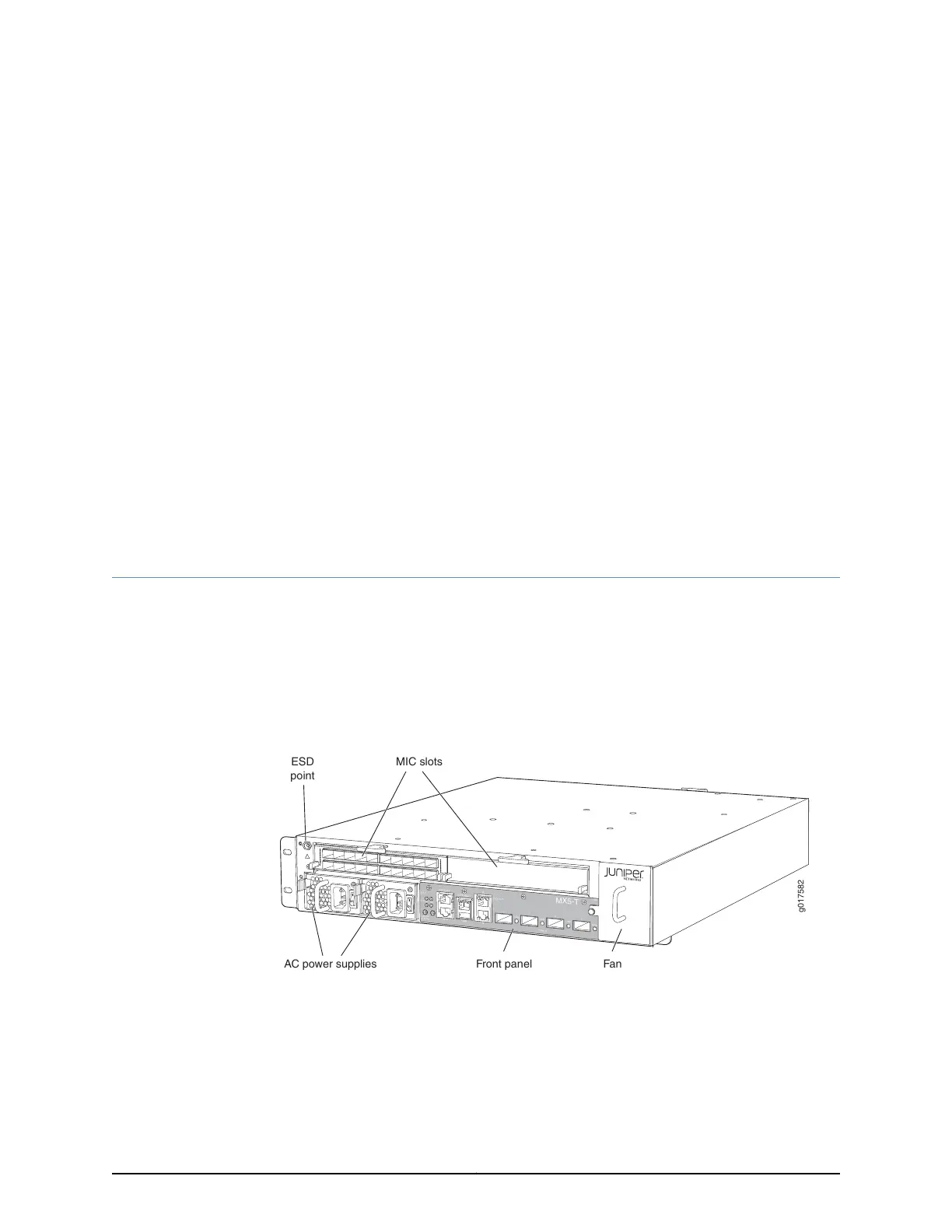

Figure 5: Front View of the MX5 Router
g017582
Front panel Fan
MIC slots
AC power supplies
ESD
point
MX5-T
SYS OK
ONLINE
OFFLINE
RE
CONSOLE
ETHERNET
A
B
AUX
USB
EXT CLK
FAN
0/ MIC 0
PS 1
0
1
2
3
LINK
LINK
LINK
LINK
