Juniper MX10 - Replacing an MX5, MX10, MX40, and MX80 Fan Tray; Removing an MX5, MX10, MX40, and MX80 Fan Tray; Figure 45: Installing the Fan Tray

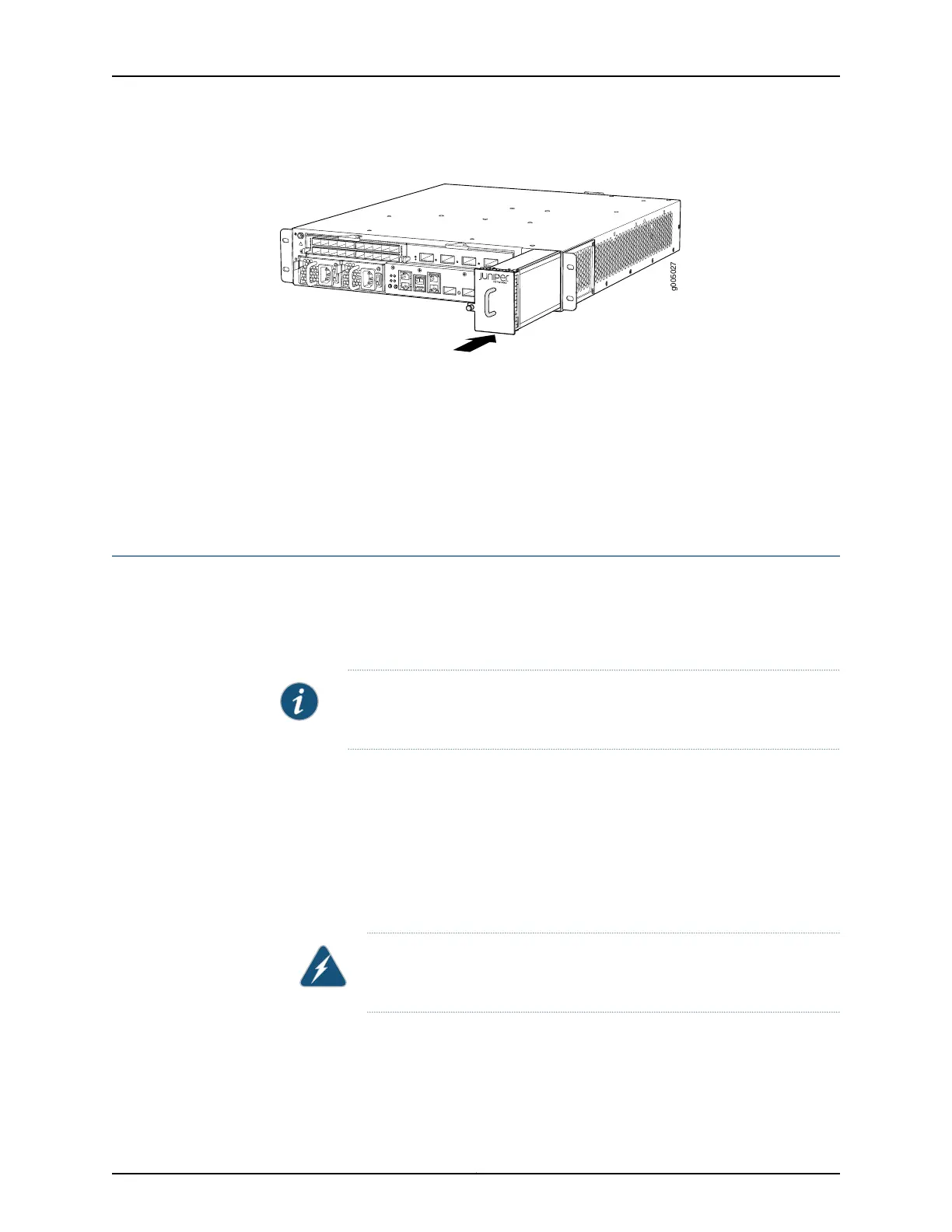

Figure 45: Installing the Fan Tray
g005027
Related
Documentation
MX5, MX10, MX40, and MX80 Cooling System Description on page 19•
• Removing an MX5, MX10, MX40, and MX80 Fan Tray on page 111
• Maintaining the MX5, MX10, MX40, and MX80 Fan Tray on page 158
• Preventing ElectrostaticDischarge Damage to an MX5, MX10, MX40, and MX80 Router
on page 194
Replacing an MX5, MX10, MX40, and MX80 Fan Tray
•
Removing an MX5, MX10, MX40, and MX80 Fan Tray on page 111
•
Installing an MX5, MX10, MX40, and MX80 Fan Tray on page 112
Removing an MX5, MX10, MX40, and MX80 Fan Tray
NOTE: To prevent overheating, install the replacement fan tray immediately
after removing the existing fan tray.
To remove the fan tray (see Figure 46 on page 112):
1. Attach an ESD grounding strap to your bare wrist and connect the strap to one of the
ESD points on the chassis.
2. Loosen the captive screw on the fan tray faceplate.
3. Grasp the fan tray handle, and pull it out approximately 1 to 3 inches.
WARNING: To avoid injury, keep tools and your fingers away from the fans
asyou slide the fan tray out of the chassis.The fans might still be spinning.
