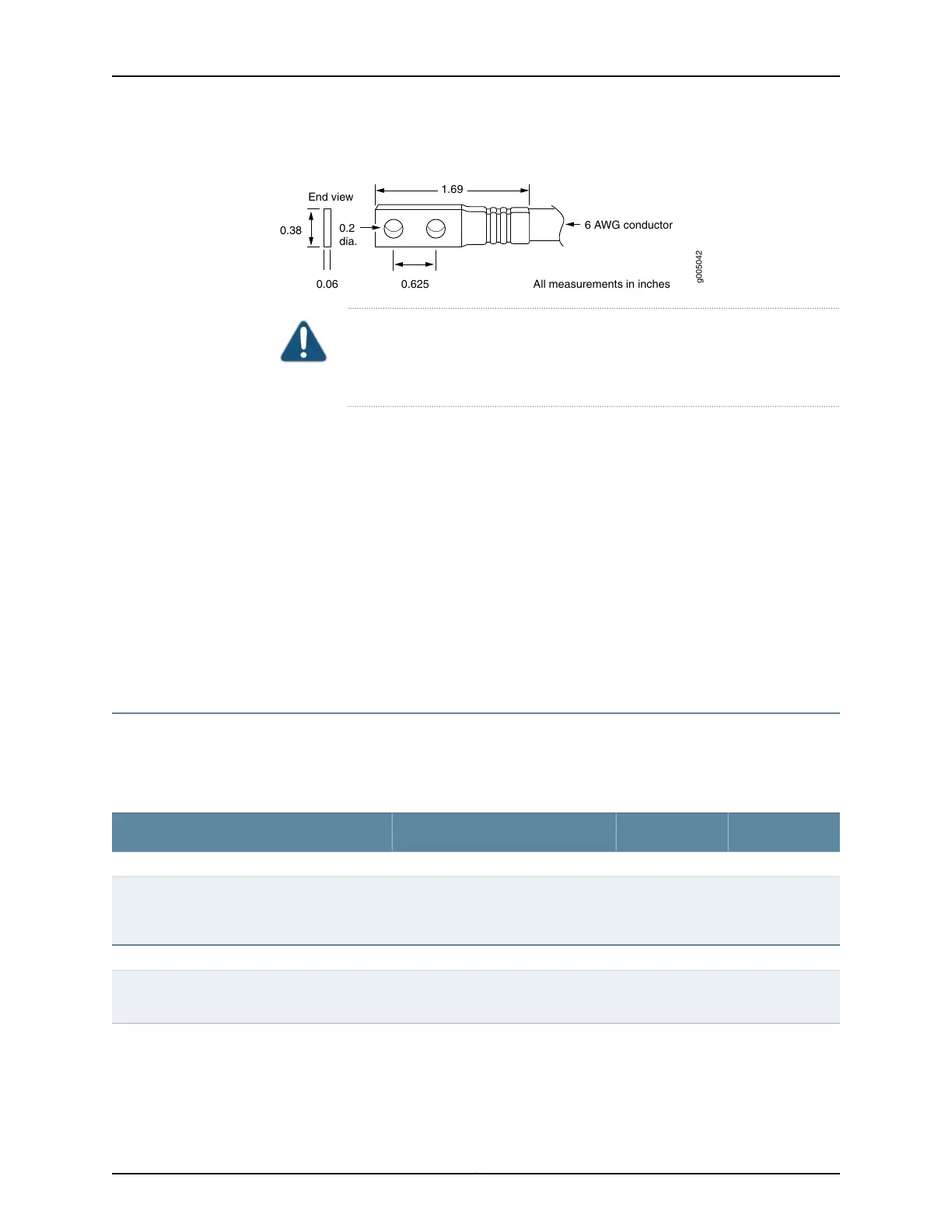

Figure 25: Grounding Cable Lug
All measurements in inches
0.2
dia.
6 AWG conductor
1.69
0.625
g005042
0.38
End view
0.06
CAUTION: Before router installation begins, a licensed electricianmust attach
a cable lug to the grounding and power cables that you supply. A cable with
an incorrectly attached lug can damage the router.
Grounding Cable Specifications
You must provide one grounding cable that meets the following specifications: 6-AWG
(13.3 mm
2
), minimum 60° C wire, or as required by the local code.
Related
Documentation
Tools and Parts Required for MX5, MX10, MX40, and MX80 Router Grounding and
Power Connections on page 87
•
• Preventing ElectrostaticDischarge Damage to an MX5, MX10, MX40, and MX80 Router
on page 194
• MX5, MX10, MX40, and MX80 Routers AC Power Specifications on page 53
• MX5, MX10, MX40, and MX80 Routers DC Power Specifications on page 59
MX5, MX10, MX40, and MX80 Site Preparation Checklist
The checklist in Table 20 on page 44 summarizes the tasks you must perform when
preparing a site for router installation.
Table 20: MX80 Site Preparation Checklist
DatePerformed ByFor More InformationItem or Task
Environment
“MX5, MX10, MX40, and MX80 Router
Environmental Specifications” on
page 42
Verify that environmental factors such as
temperature and humidity do not exceed router
tolerances.
Power
“MX5, MX10, MX40, and MX80 Router
Grounding Specifications” on page 43
Locate sites for connection of system
grounding.
Copyright © 2017, Juniper Networks, Inc.44
MX5, MX10, MX40, and MX80 3D Universal Edge Router Hardware Guide
