Juniper MX10 - AC Power Supply Description; Figure 20: AC Power Supplies Installed in an MX5, MX10, MX40, and MX80; Figure 21: DC Power Supplies Installed in an MX5, MX10, MX40, and MX80

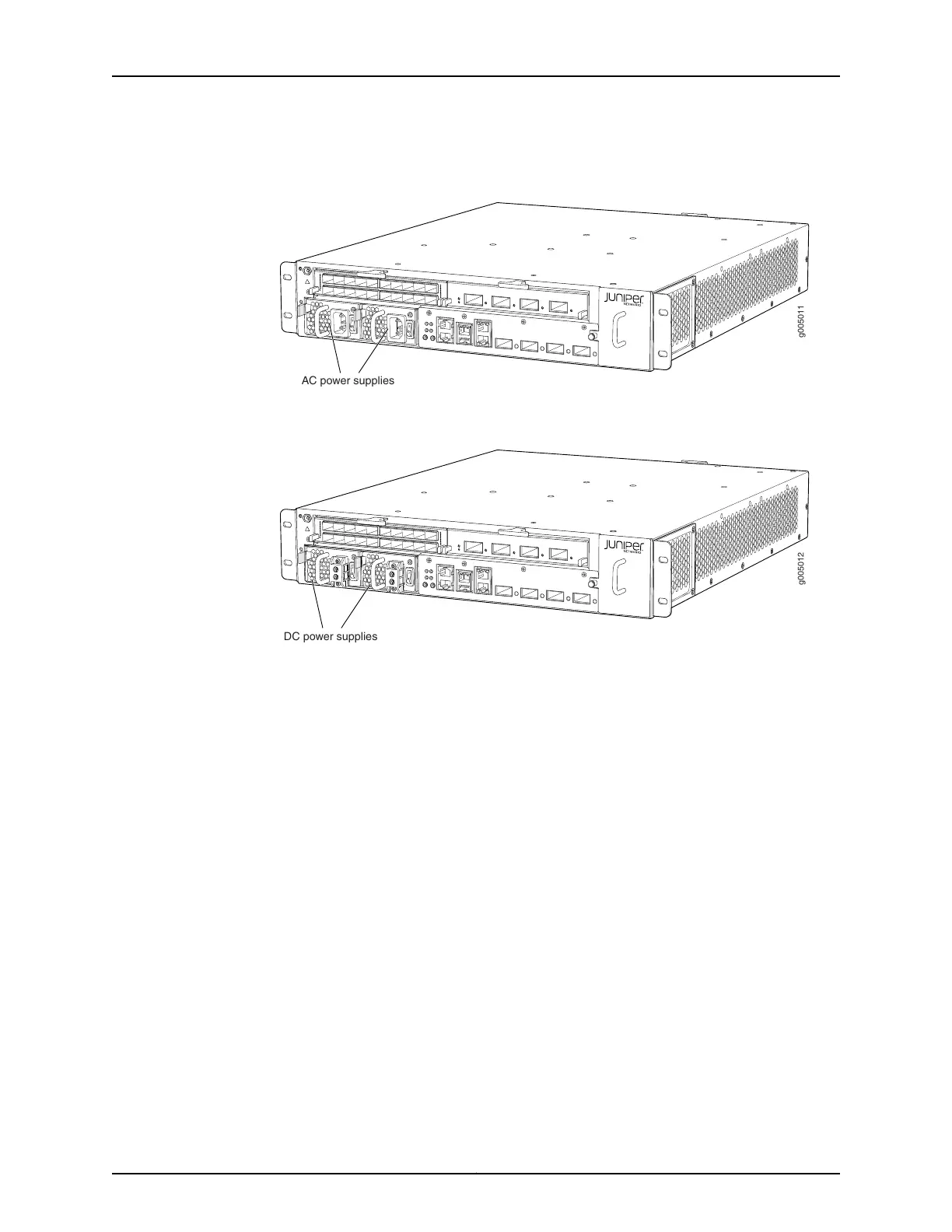

Figure 20: AC Power Supplies Installed in an MX5, MX10, MX40, and MX80
Router
g005011
AC power supplies
Figure21: DC Power Supplies Installedin an MX5, MX10, MX40, and MX80
Router
g005012
DC power supplies
•
AC Power Supply Description on page 36
•
DC Power Supply Description on page 37
AC Power Supply Description
Each AC power supply weighs approximately 2.6 lb (1.18 kg) and consists of a handle,
an ejection lever, an AC appliance inlet, an AC input switch, a fan, and an LED to monitor
the status of the power supply. Figure 22 on page 37 shows the power supply.
Each inlet requires a dedicated AC power feed and a dedicated customer site circuit
breaker. We recommend that you use a minimum 15 A (110 VAC) customer site circuit
breaker, or as required by local code.
