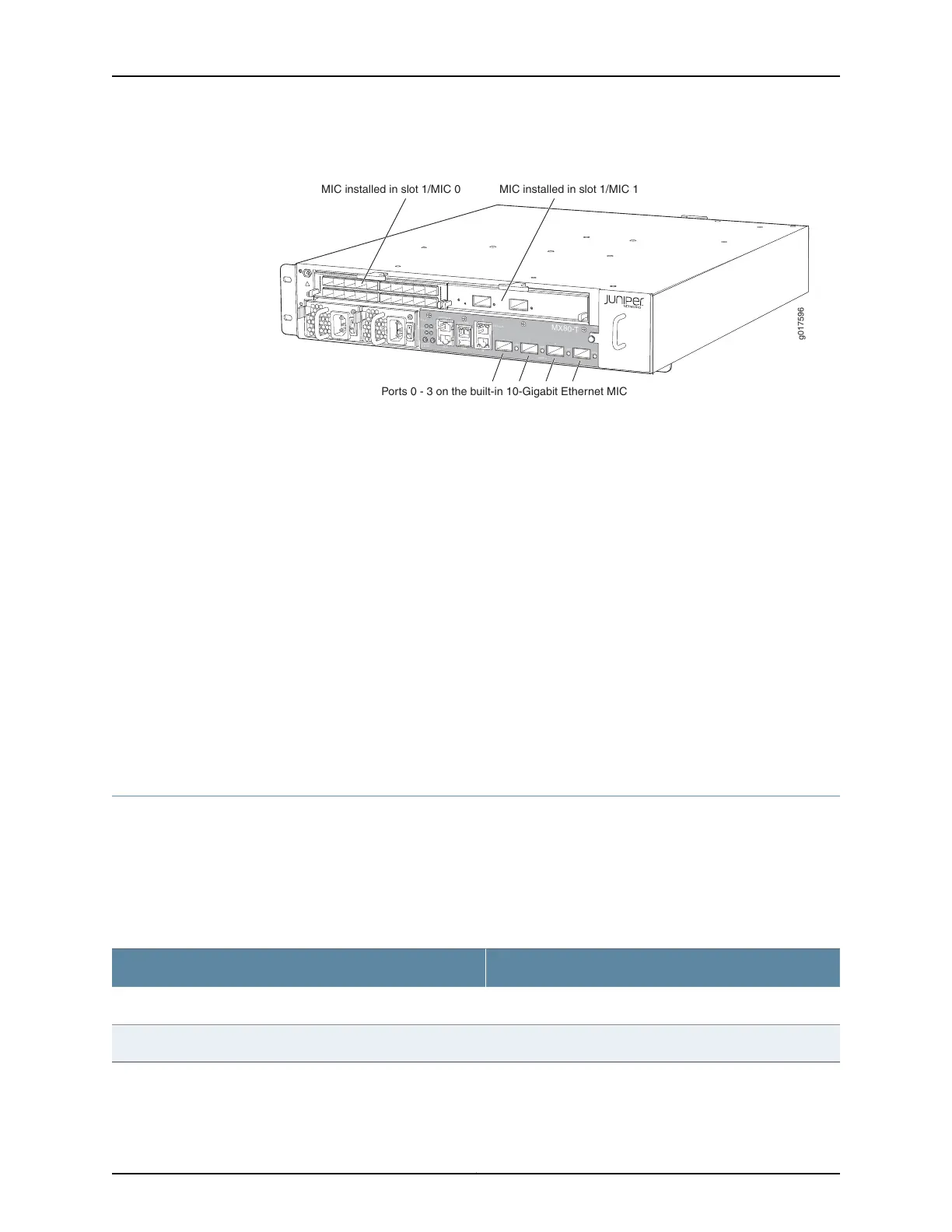

Figure 4: MX80 Router
g017596
SYS OK
ONLINE
OFFLINE
RE
CONSOLE
ETHERNET
A
B
AUX
USB
EXT CLK
FAN
0/ MIC 0
PS 1
0
1
2
3
LINK
LINK
LINK
LINK
MX80-T
MIC installed in slot 1/MIC 0
MIC installed in slot 1/MIC 1
Ports 0 - 3 on the built-in 10-Gigabit Ethernet MIC
A fixed version of the MX80 router (model number: MX80-48T) has 48 fixed
10/100/1000Base-T RJ45 ports in place of the MIC slots.
For a list of MICs supported on the MX5, MX10, MX40, and modular MX80 routers, see
“MICs Supported by MX Series Routers” on page 26 in the MX Series Interface Module
Reference.
Related
Documentation
MX5, MX10, MX40, and MX80 Chassis Description on page 9•
• MX5, MX10, MX40, and MX80 Router Models on page 5
• MX5, MX10, MX40, and MX80 Cooling System Description on page 19
• MX5, MX10, MX40, and MX80 Front Panel Description on page 13
• MX5, MX10, MX40, and MX80 Modular Interface Card Description on page 23
• MX5, MX10, MX40, and MX80 Power System Description on page 35
• MX5, MX10, MX40, and MX80 Routers Physical Specifications on page 41
MX5, MX10, MX40, and MX80 Router Models
The MX5, MX10, MX40, and MX80 routers are available in different models. The tables
below list the various MX5, MX10, MX40 and MX80 router models available and provide
a brief description of each base units.
Table 3 on page 5 lists the different MX5 router models available.
Table 3: MX5 Router Models
DescriptionModel Number
DC chassisMX5-T-DC
AC chassisMX5-T-AC
Table 4 on page 6 lists the different MX10 router models available.
5Copyright © 2017, Juniper Networks, Inc.
Chapter 1: System Overview

Juniper MX10 Specifications

General

Brand	Juniper
Model	MX10
Category	Network Router
Language	English
