both in front of and behind the router. NEBS GR-63 recommends that you allow at
least 30 in. (76.2 cm) in front of the rack and 24 in. (61 cm) behind the router.

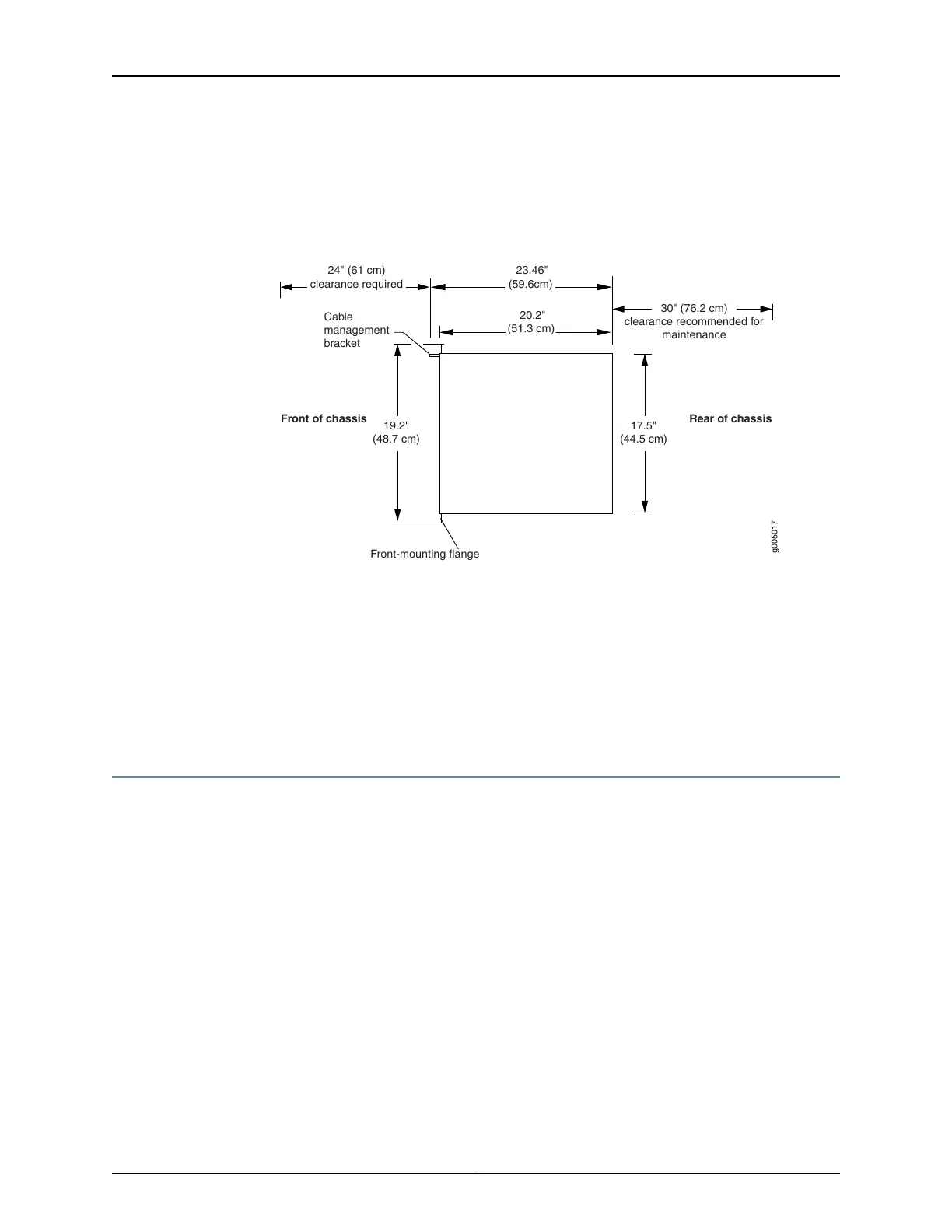

Figure 27: MX5, MX10, MX40, and MX80 Chassis Dimensions and
Clearance Requirements
Rear of chassis
Front of chassis
17.5"
(44.5 cm)
20.2"
(51.3 cm)
g005017
Front-mounting flange
19.2"
(48.7 cm)
24" (61 cm)
clearance required
30" (76.2 cm)
clearance recommended for
maintenance
Cable
management
bracket
23.46"
(59.6cm)
Related
Documentation
MX5, MX10, MX40, and MX80 Site Preparation Checklist on page 44•
• MX5, MX10, MX40, and MX80 Rack Requirements on page 46
• MX5, MX10, MX40, and MX80 Installation Summary on page 50
• Installing MX5, MX10, MX40, and MX80 Chassis in the Rack on page 85
• MX5, MX10, MX40, and MX80 Routers Physical Specifications on page 41
MX5, MX10, MX40, and MX80 Routers Cabinet Requirements and Specifications
Table22 on page 49 summarizes cabinet requirements and specifications for MX5, MX10,
MX40, and MX80 routers.
Copyright © 2017, Juniper Networks, Inc.48
MX5, MX10, MX40, and MX80 3D Universal Edge Router Hardware Guide
